Signal Waveform & Data

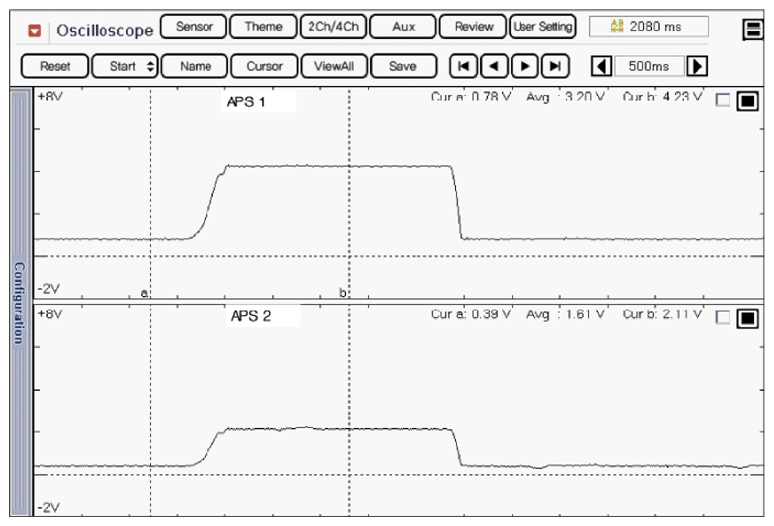

Fig 1: Display - Normal Waveform Of APS1 & APS2 With Acceleration

Courtesy of HYUNDAI MOTOR AMERICA

Signal waveform of APS 1 & 2 shows that APS 2 increases voltage just half of APS 1 voltage increase when accelerating.
