Diagnostic Circuit Diagram

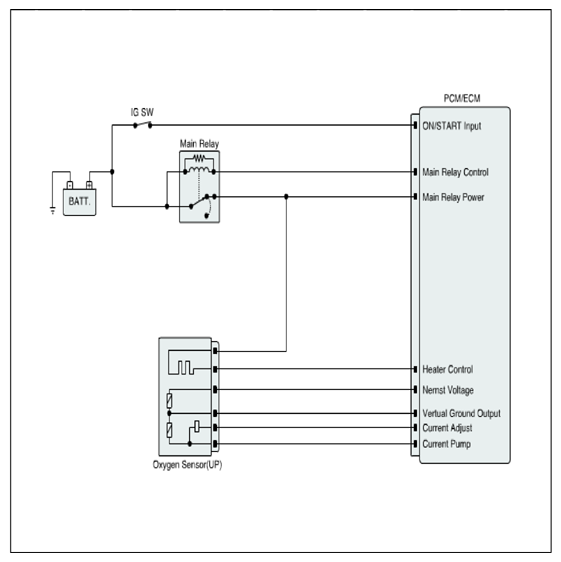

Fig 1: Oxygen Sensor (UP) Diagnostic Circuit Diagram
G08802774Courtesy of HYUNDAI MOTOR AMERICA

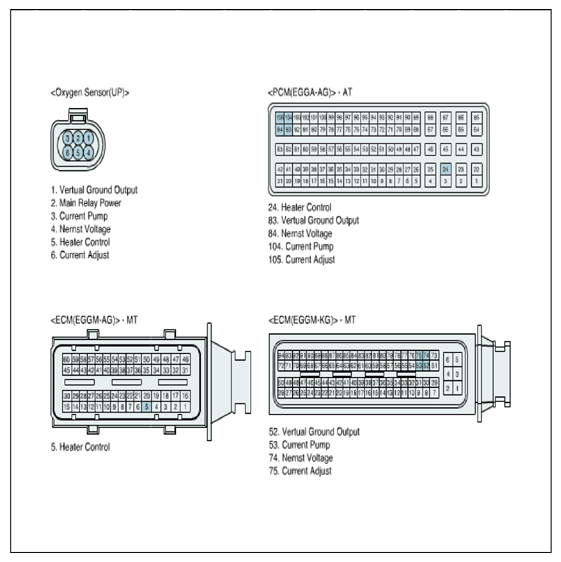

Fig 2: Oxygen Sensor (UP), PCM And ECM Connector Terminals
G08802775Courtesy of HYUNDAI MOTOR AMERICA
