Diagnostic Circuit Diagram

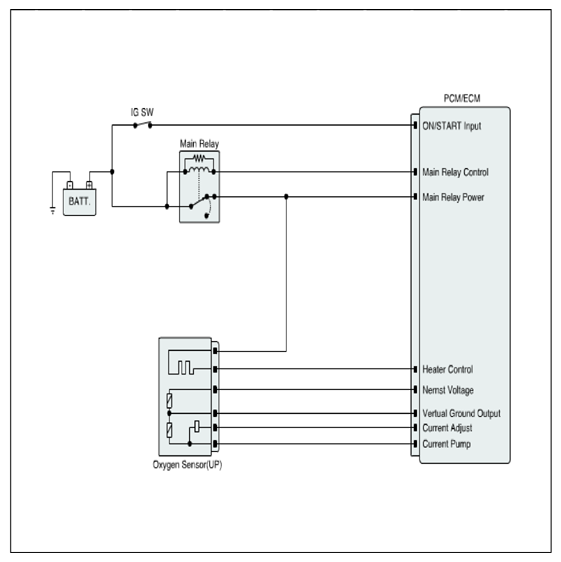

Fig 1: Oxygen Sensor (UP), PCM And ECM Connector Terminals
G08802794Courtesy of HYUNDAI MOTOR AMERICA

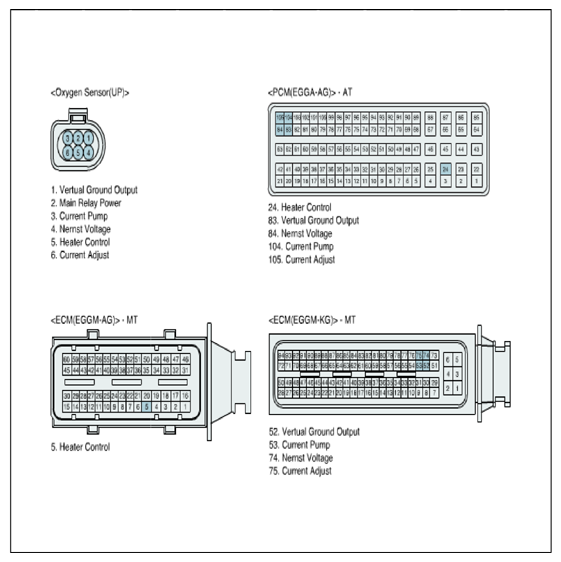

Fig 2: Oxygen Sensor (UP), PCM And ECM Connector Terminals
G08802795Courtesy of HYUNDAI MOTOR AMERICA
