Connecting Rod, Engine





Connecting Rod

Tightening torque 17.7 - 21.6 Nm (1.8 - 2.2kgf.m, 13.0 - 15.9lb-ft) + 88 - 92°

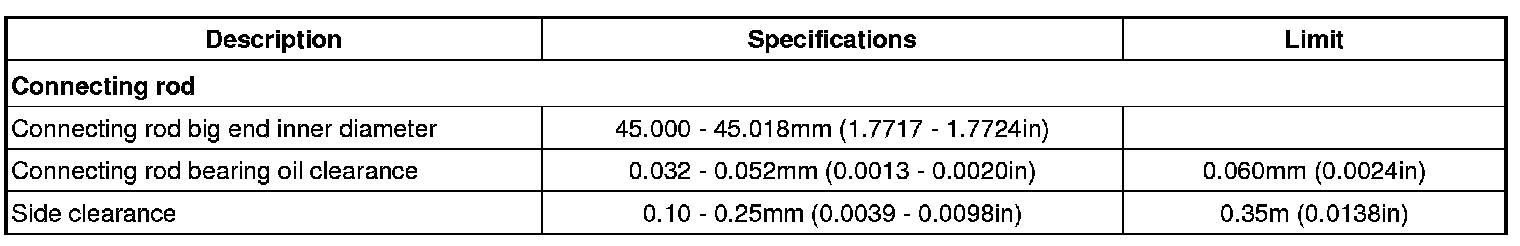

Side Clearence & Diameter
