Engine Control System Diagnosis (1 Of 3)
>>
DTC P0030: HO2S Heater Control Circuit (Bank 1/Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Circuit Diagram

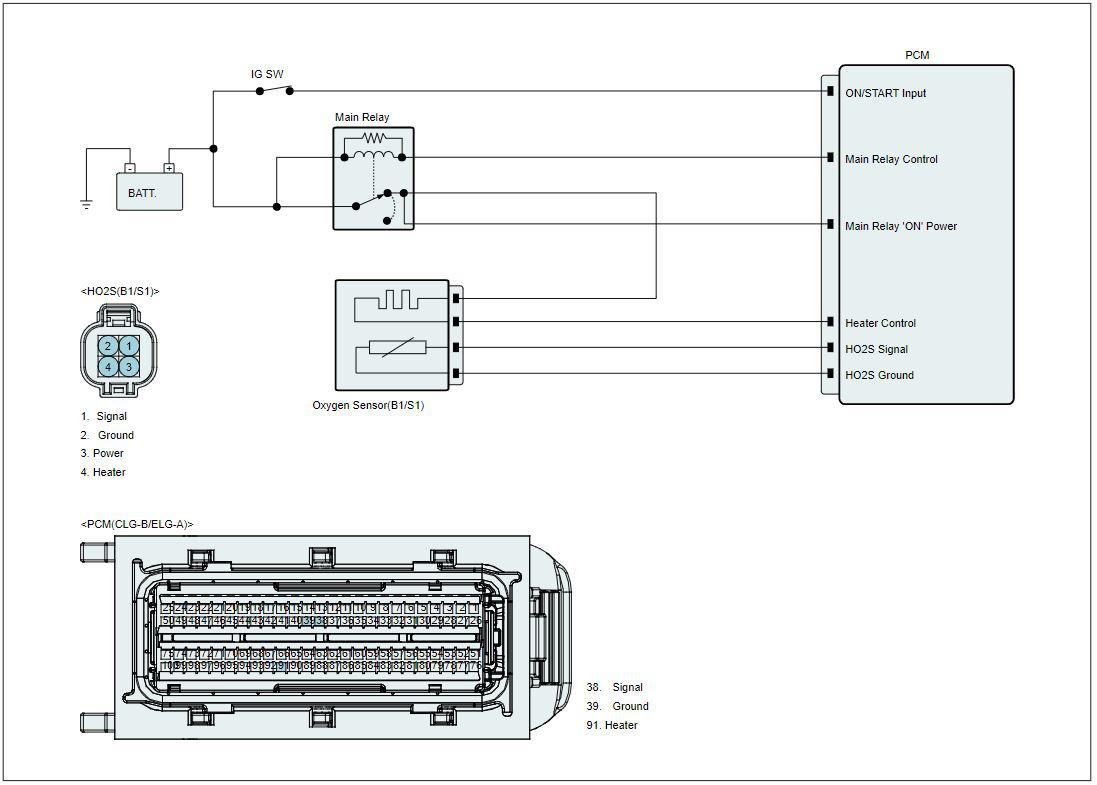

Fig 1: O2 Sensor (B1/S1) Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
