Diagnostic Circuit Diagram

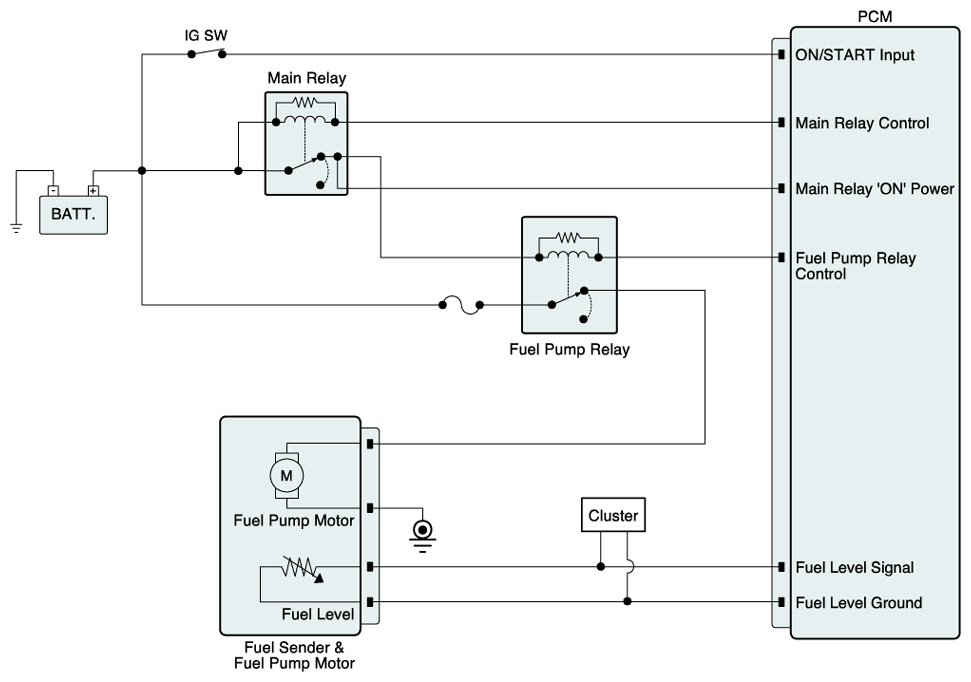

Fig 1: Fuel Level Sensor - Diagnostic Circuit Diagram (1 Of 2)
G07272551Courtesy of HYUNDAI MOTOR CO.

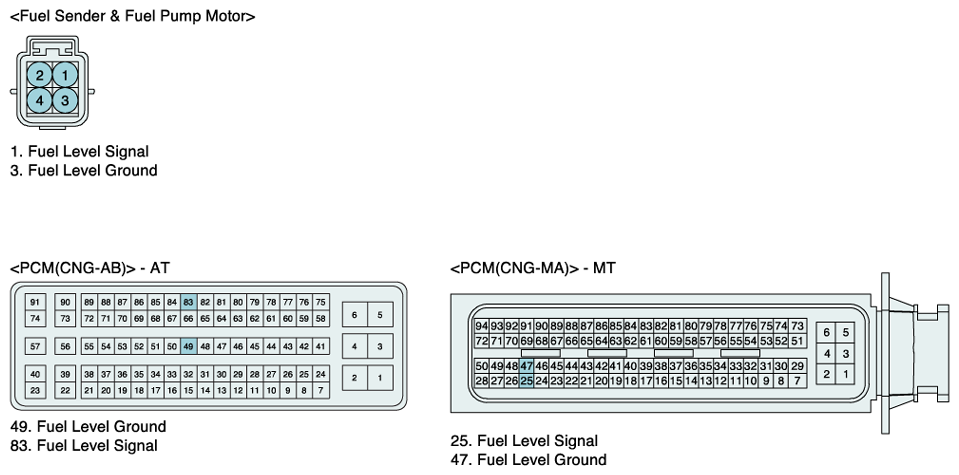

Fig 2: Fuel Level Sensor - Diagnostic Circuit Diagram (2 Of 2)
G07272552Courtesy of HYUNDAI MOTOR CO.
