F49 SRS Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

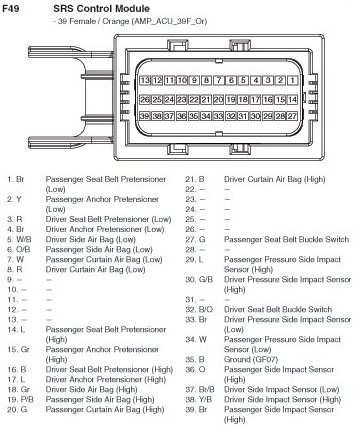

F49 SRS Control Module
F49 SRS Control Module:
