September 30: LEMON manuals is back up on a temporary server! Slowness is possible
PCM (A/T)

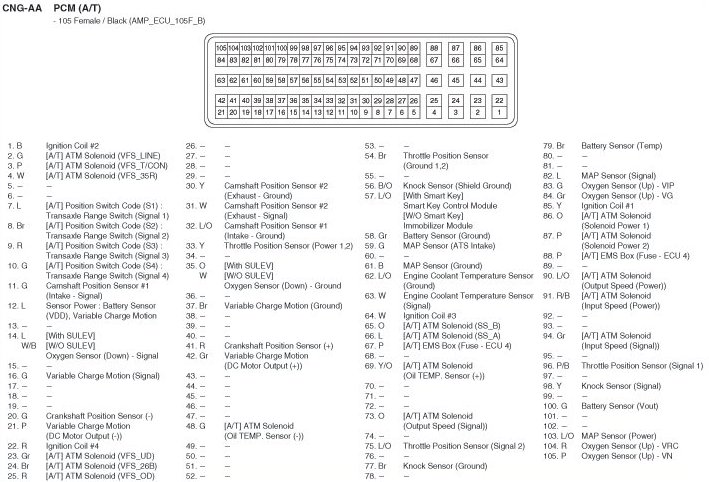

CNG-AA PCM (A/T):

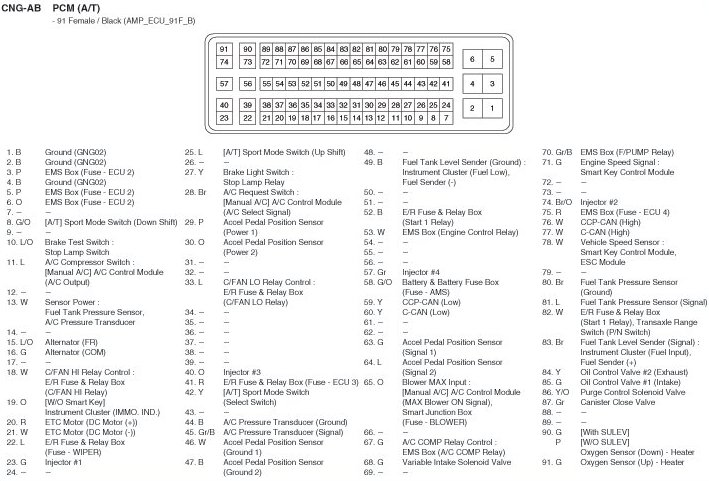

CNG-AB PCM (A/T):
