Components (1)

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

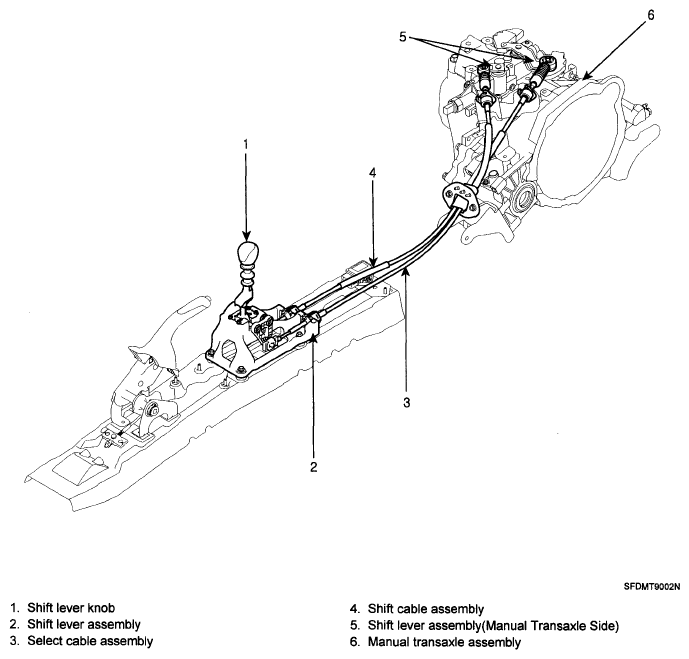

Fig 1: Identifying Manual Transaxle Shift Control Components (1 Of 2)
G06136328Courtesy of HYUNDAI MOTOR CO.
