Variant coding Procedure

On-Line Variant Coding on GDS
1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

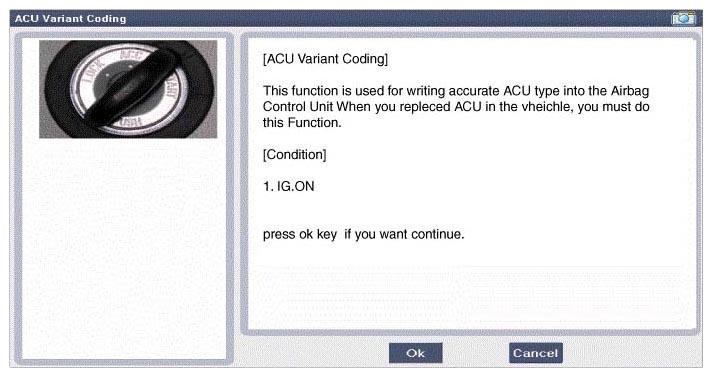

1. Initial ACU Variant Coding screen

  Fig 1: Display - ACU Variant Coding Screen
  Courtesy of HYUNDAI MOTOR AMERICA
2. VIN Code entering screen

  Fig 2: Display - VIN Code Entering Screen
  Courtesy of HYUNDAI MOTOR AMERICA

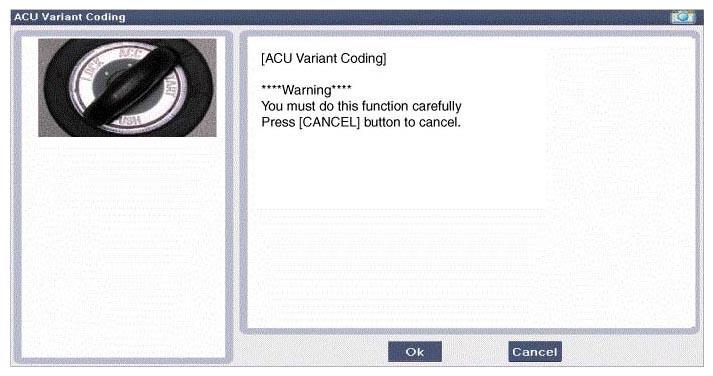

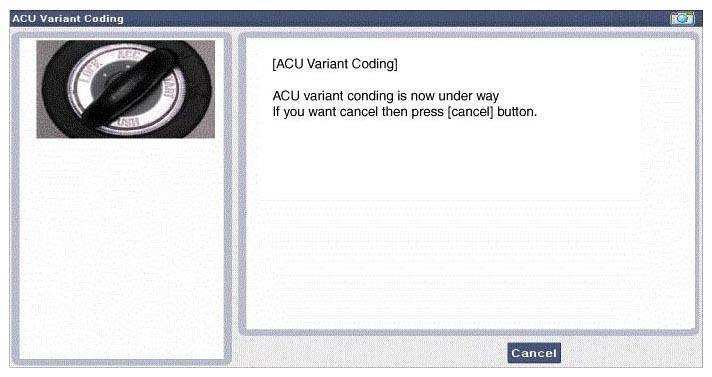

3. Variant coding's proceeding screen-1

  Fig 3: Display - Variant Coding's Proceeding Screen-1
  Courtesy of HYUNDAI MOTOR AMERICA

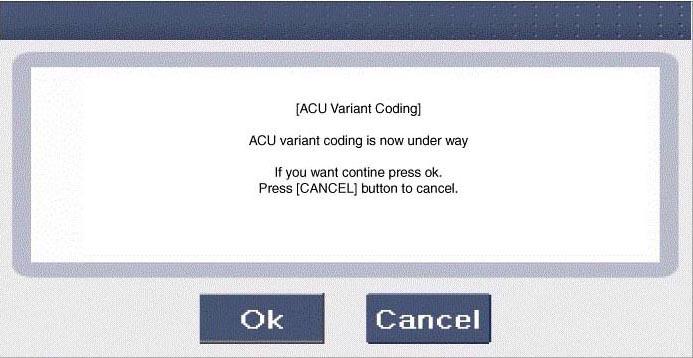

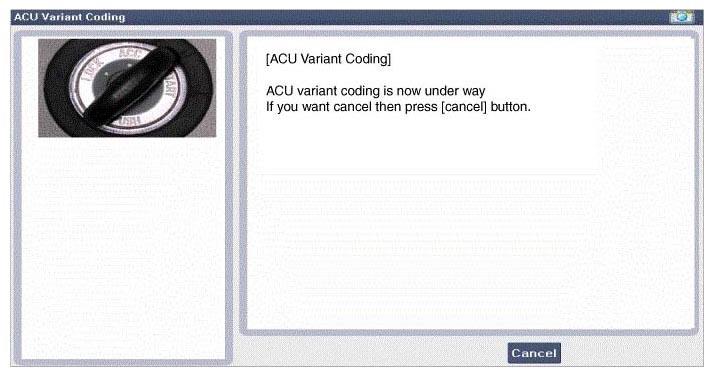

4. Variant coding's proceeding screen-2

  Fig 4: Display - Variant Coding's Proceeding Screen-2
  Courtesy of HYUNDAI MOTOR AMERICA

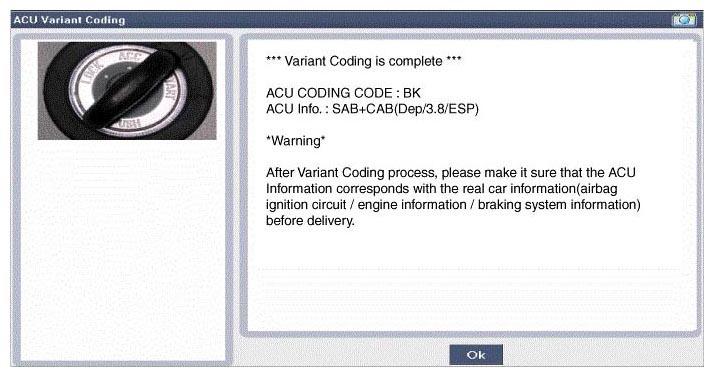

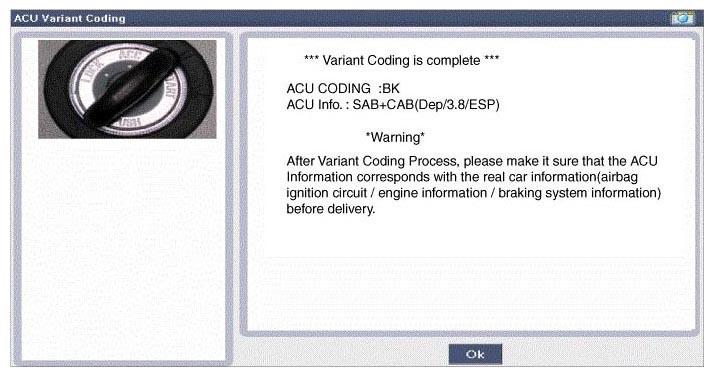

5. Variant coding is completed

  Fig 5: Display - Variant Coding Completed Screen
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:

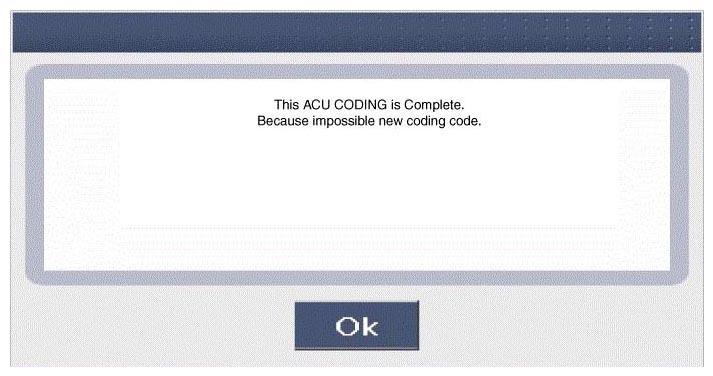

  1. This screen will appear when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 6: Display - ACU Coding Complete Screen
    Courtesy of HYUNDAI MOTOR AMERICA

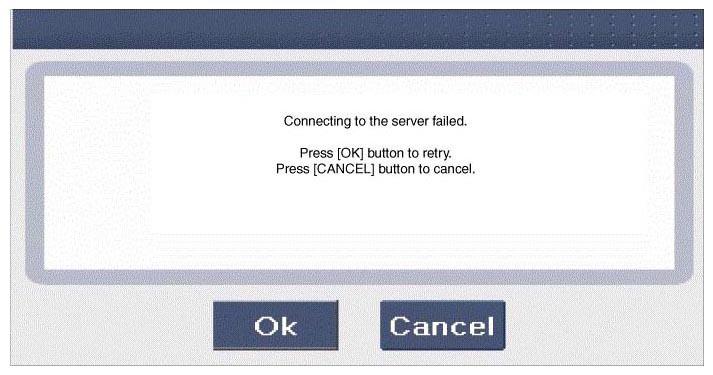

  2. If communication fails, the following screen will appear.

    Fig 7: Display - Connecting To Server Failed Screen
    Courtesy of HYUNDAI MOTOR AMERICA
Off-line Variant Coding on GDS (This can be used when not connecting to Internet)

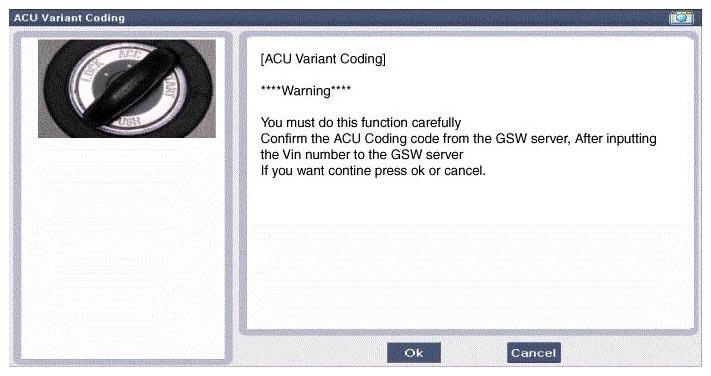

1. Initial ACU Variant Coding screen

  Fig 8: Display - Off-Line Variant Coding On GDS Screen
  Courtesy of HYUNDAI MOTOR AMERICA

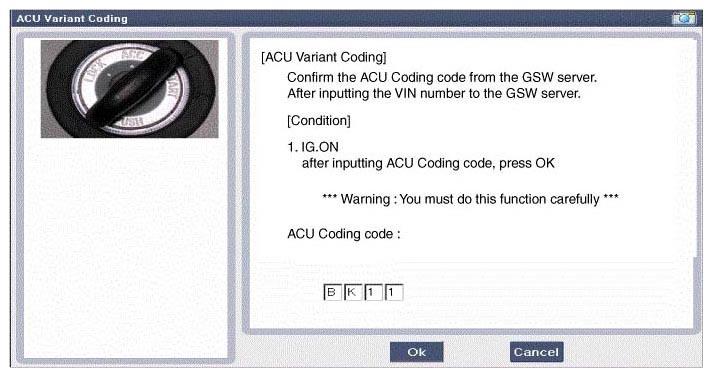

2. ACU coding code entering screen

  Fig 9: Display - ACU Coding Code Entering Screen
  Courtesy of HYUNDAI MOTOR AMERICA
3. Screen of rechecking ACU coding code's entering

  Fig 10: Display - Rechecking ACU Coding Code's Entering Screen
  Courtesy of HYUNDAI MOTOR AMERICA
4. Variant coding's proceeding screen-1

  Fig 11: Display - Variant Coding's Proceeding Screen-1
  Courtesy of HYUNDAI MOTOR AMERICA

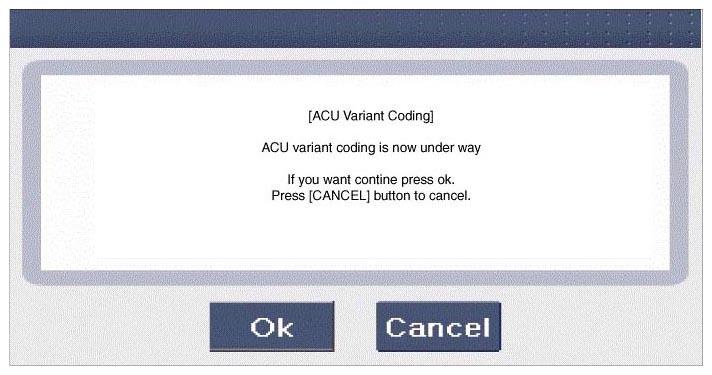

5. Variant coding's proceeding screen-2

  Fig 12: Display - Variant Coding's Proceeding Screen-2
  Courtesy of HYUNDAI MOTOR AMERICA
6. Variant coding is completed

  Fig 13: Display - Variant Coding Completed Screen
  Courtesy of HYUNDAI MOTOR AMERICA
  NOTE:

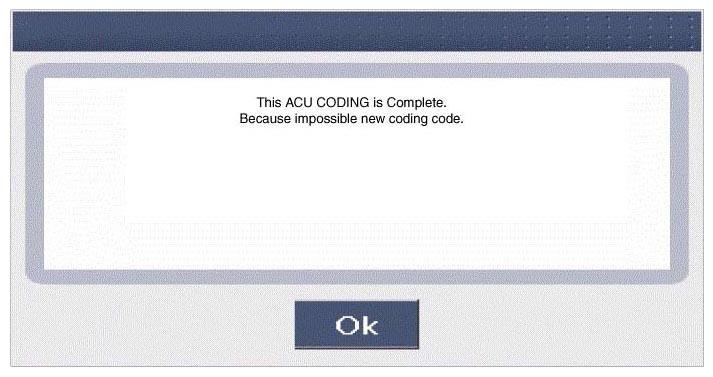

  1. This screen will appear when you try the variant coding again on the SRSCM that already has the variant coding performed.
  Fig 14: Display - ACU Coding Complete Screen
  Courtesy of HYUNDAI MOTOR AMERICA
