Relay Box (Passenger Compartment)

Components

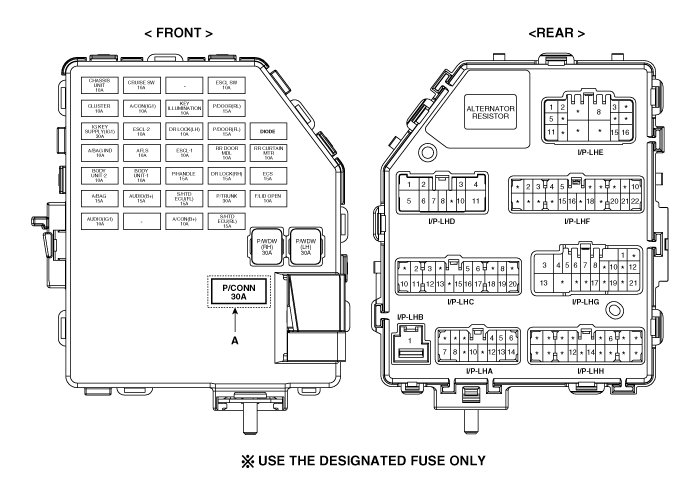

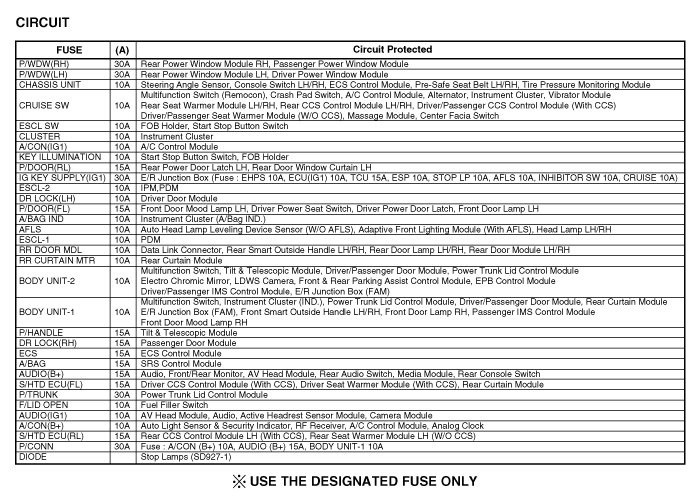

Passenger Compartment Relay Box LH





NOTE:
- When removing the power connector (A) regardless of opening hood, hood open warning lamp turns ON in the cluster.
- In case of the hood open warning lamp on when the hood is closed, check the power connector in passenger compartment relay box located at the left lower side of instrument panel.

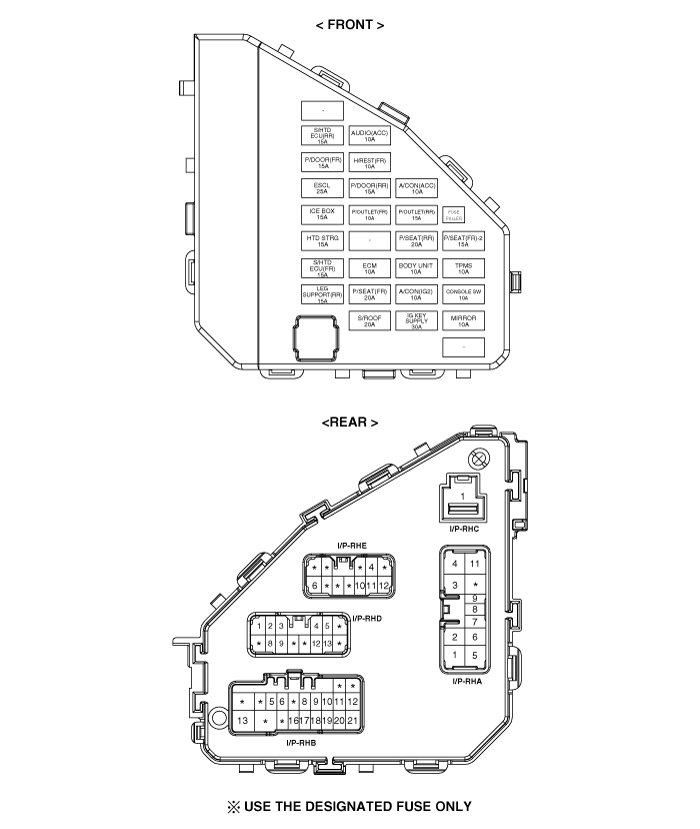

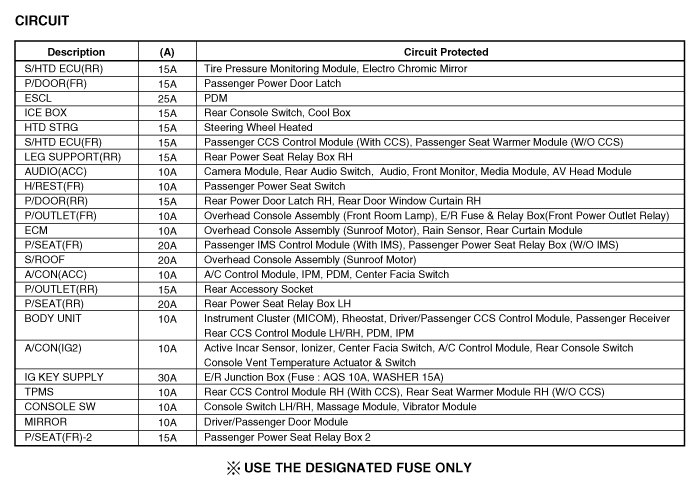

Passenger Compartment Relay Box RH
