Components Location

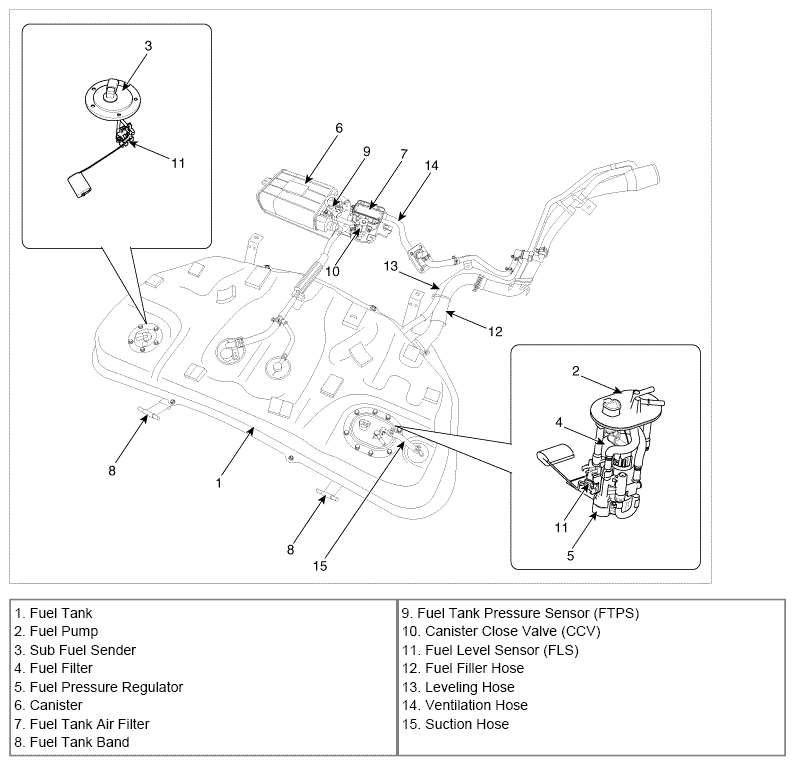

Fig 1: Fuel Delivery System Components Location
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
