General Information - Engine Electrical - 4.6L: Specifications
IGNITION SYSTEM SPECIFICATION
| Items | Specification | ||
|---|---|---|---|
| Ignition coil | Primary resistance | 0.62 ± 10% | |
| Secondary resistance | 7.0 kΩ ± 15% | ||
| Spark plugs | Unleaded | Type | T40246P |
| Gap | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.) | ||
| Condenser | Capacity (1 kHz) | 0.47 MF | |
STARTING SYSTEM SPECIFICATION
| Items | Specification | ||
|---|---|---|---|
| Starter | Rated voltage | 12 V, 1.7 kW | |
| No. of pinion teeth | 8 | ||
| No-load characteristics | Voltage | 11.5 V | |
| Ampere | 85A, MAX | ||
| Speed | 2, 660 RPM, MIN | ||
CHARGING SYSTEM SPECIFICATION
| Items | Specification | |
|---|---|---|
| Alternator | Rate voltage | 13.5 V, 180A |
| Speed in use | 1, 000 ~ 18, 000 RPM | |
| Voltage regulator | IC regulator built-in type | |
| Regulator setting voltage | 11.7 ~ 12.3 V | |

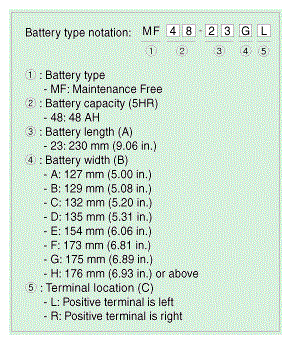

| Battery | Type | 80 - 35 FL |
| Cold cranking amperage [at -18°C (-0.4°F)] | 780 A | |
| Reserve capacity | 190 min | |
| Specific gravity [at 25°C (77°F)] | 1.280 ± 0.01 | |
NOTE:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2 V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5 V at 26.7°C (80.1°F).
