Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

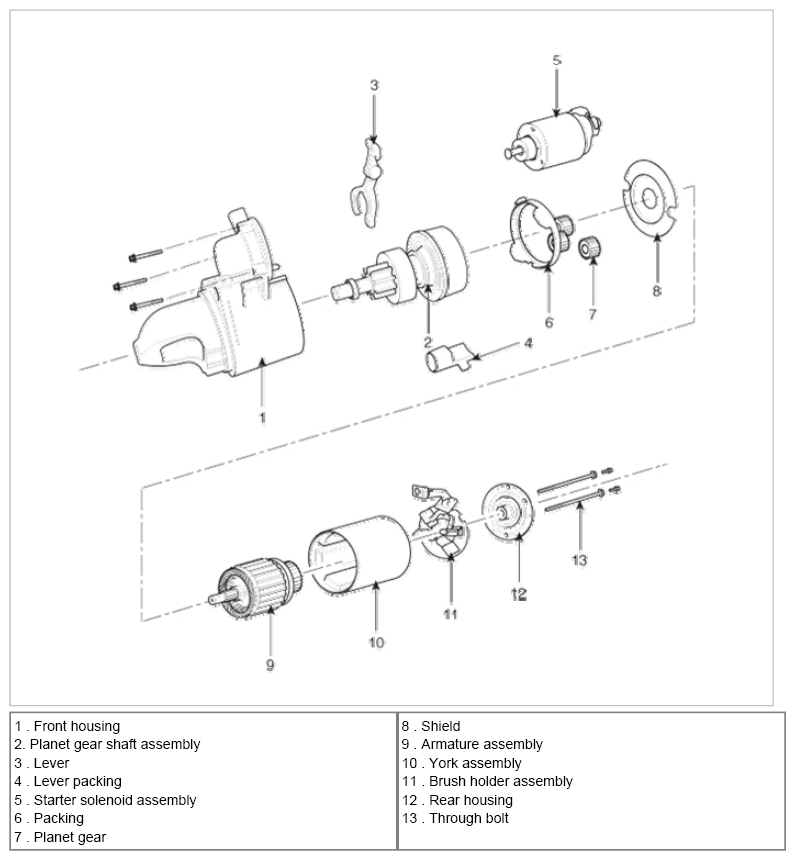

Fig 1: Identifying Starter Components
G08832938Courtesy of HYUNDAI MOTOR AMERICA
