Components and Components Location: Components

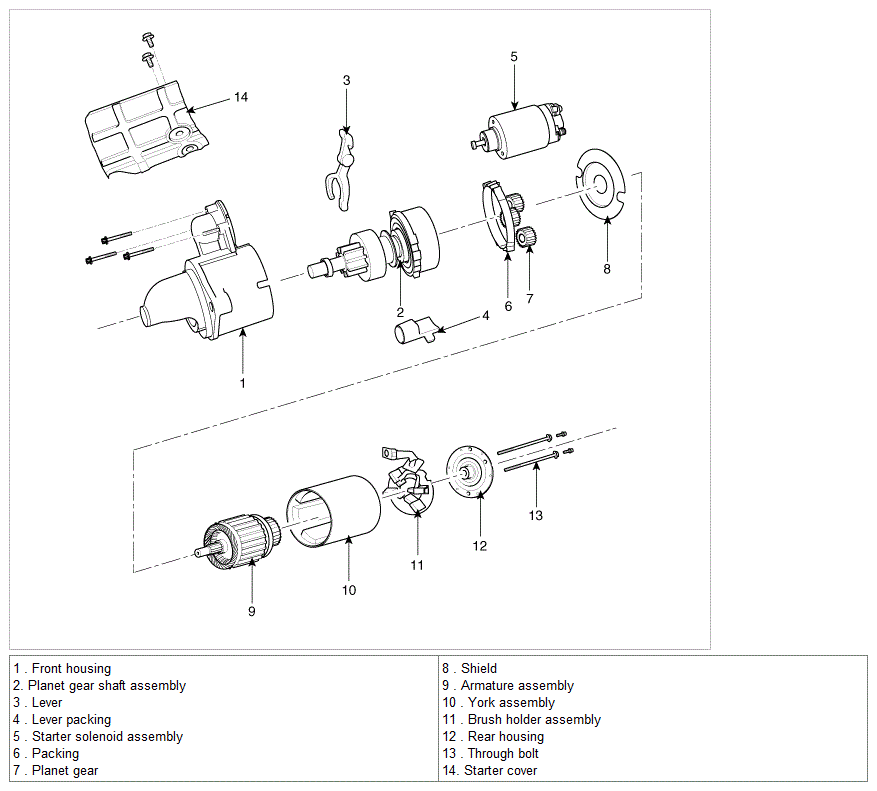

Fig 1: Identifying Starter Components

G08822711

Courtesy of HYUNDAI MOTOR AMERICA
