Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

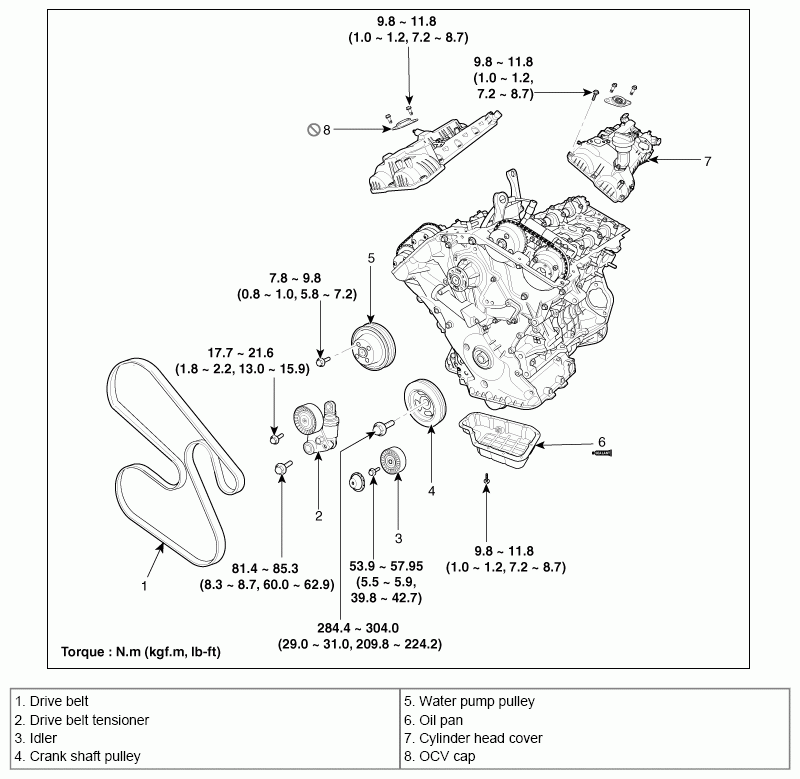

Fig 1: Timing Chain Replacement Components With Torque Specifications (1 Of 2)
G08833599Courtesy of HYUNDAI MOTOR AMERICA

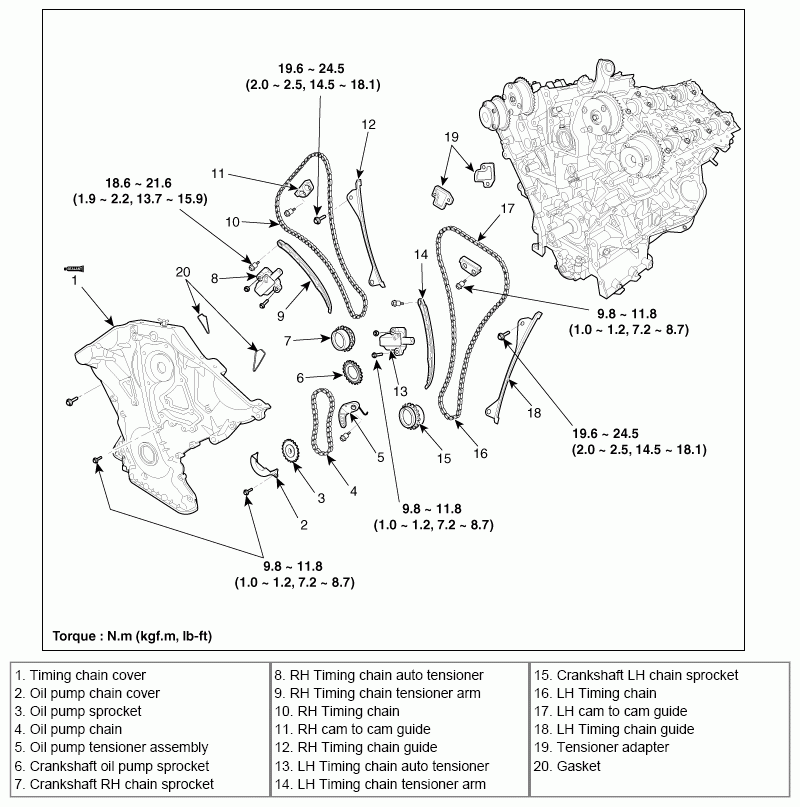

Fig 2: Timing Chain Replacement Components With Torque Specifications (2 Of 2)
G08833600Courtesy of HYUNDAI MOTOR AMERICA
