Automatic Transmission Control System - 4.6L & 5.0L
>>
Components and Components Location
>>
Components Location
>>
[Transmission Components]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Transmission Components]

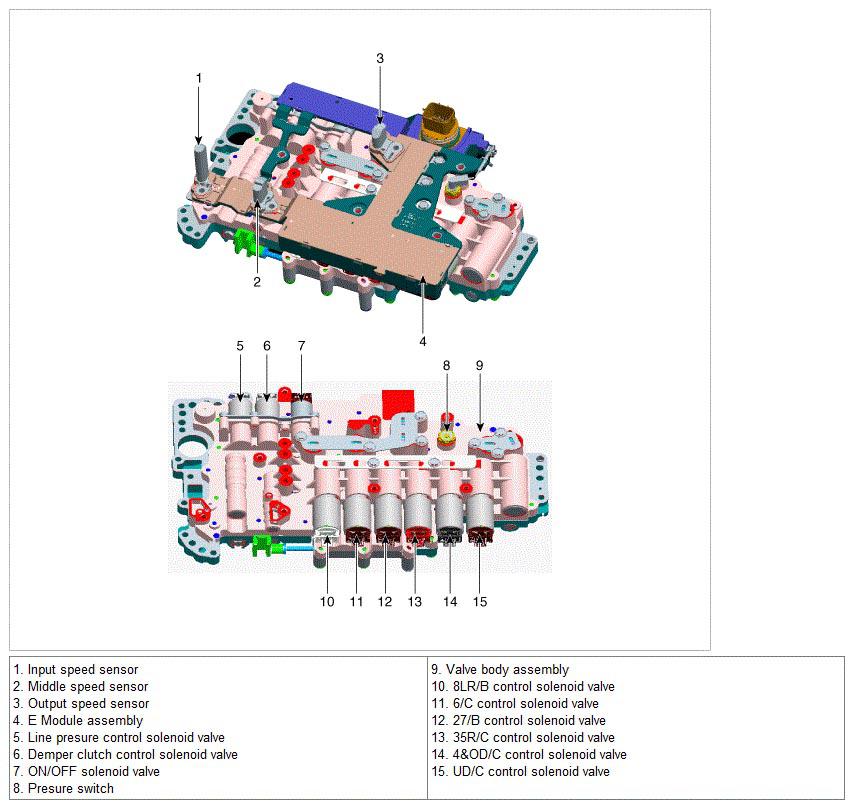

Fig 1: Identifying Valve Body Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
