Electrical Diagrams





ECM Terminal And Input / Output signal

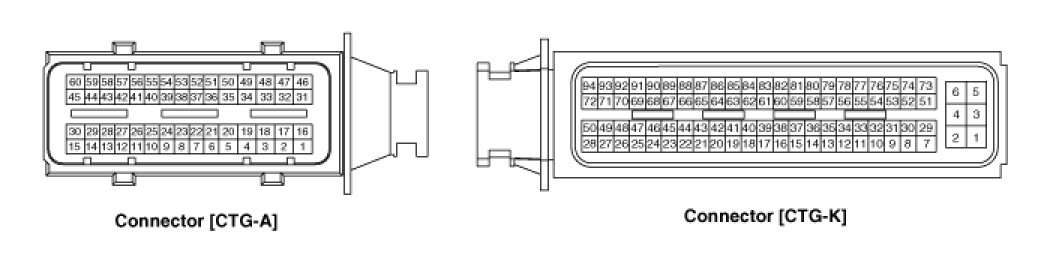

ECM Harness Connector

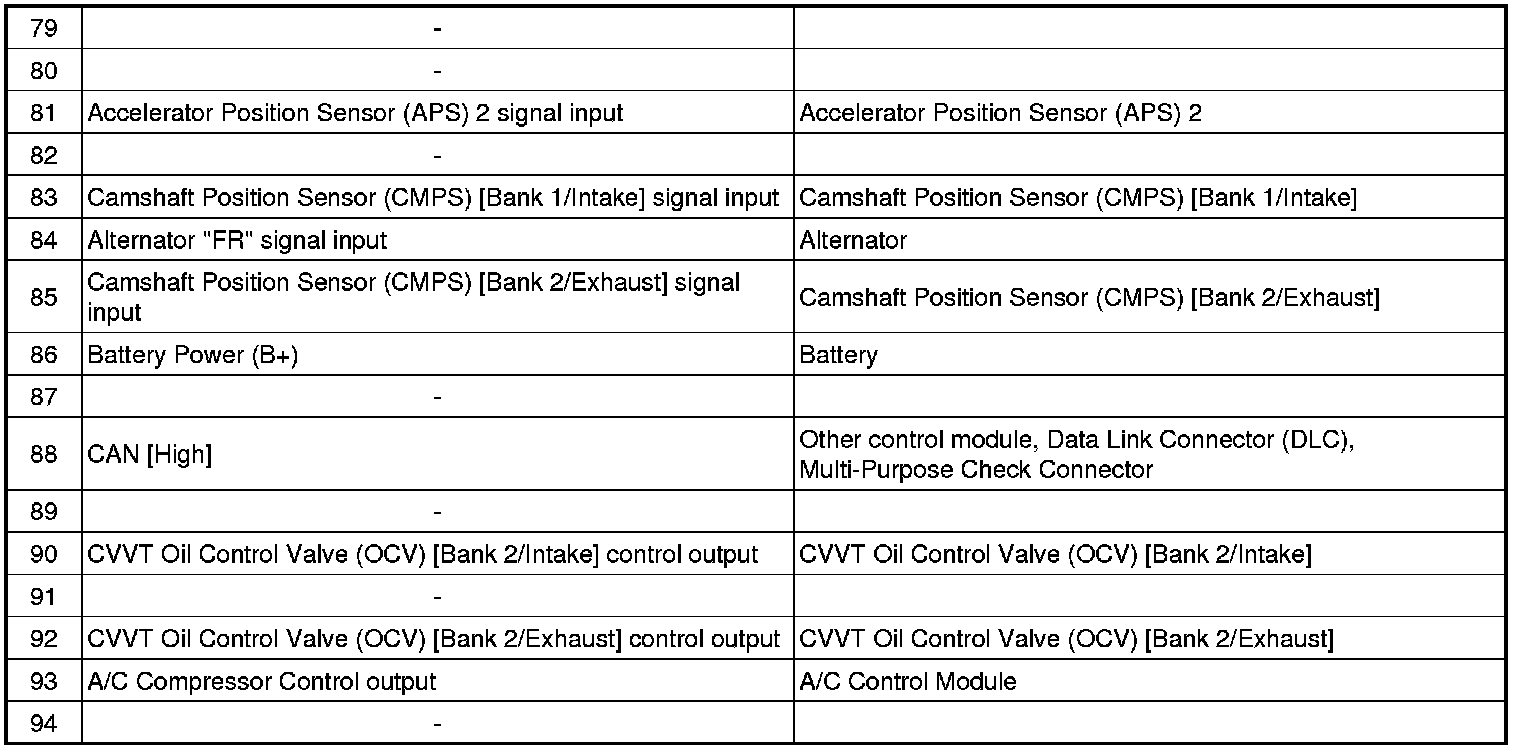

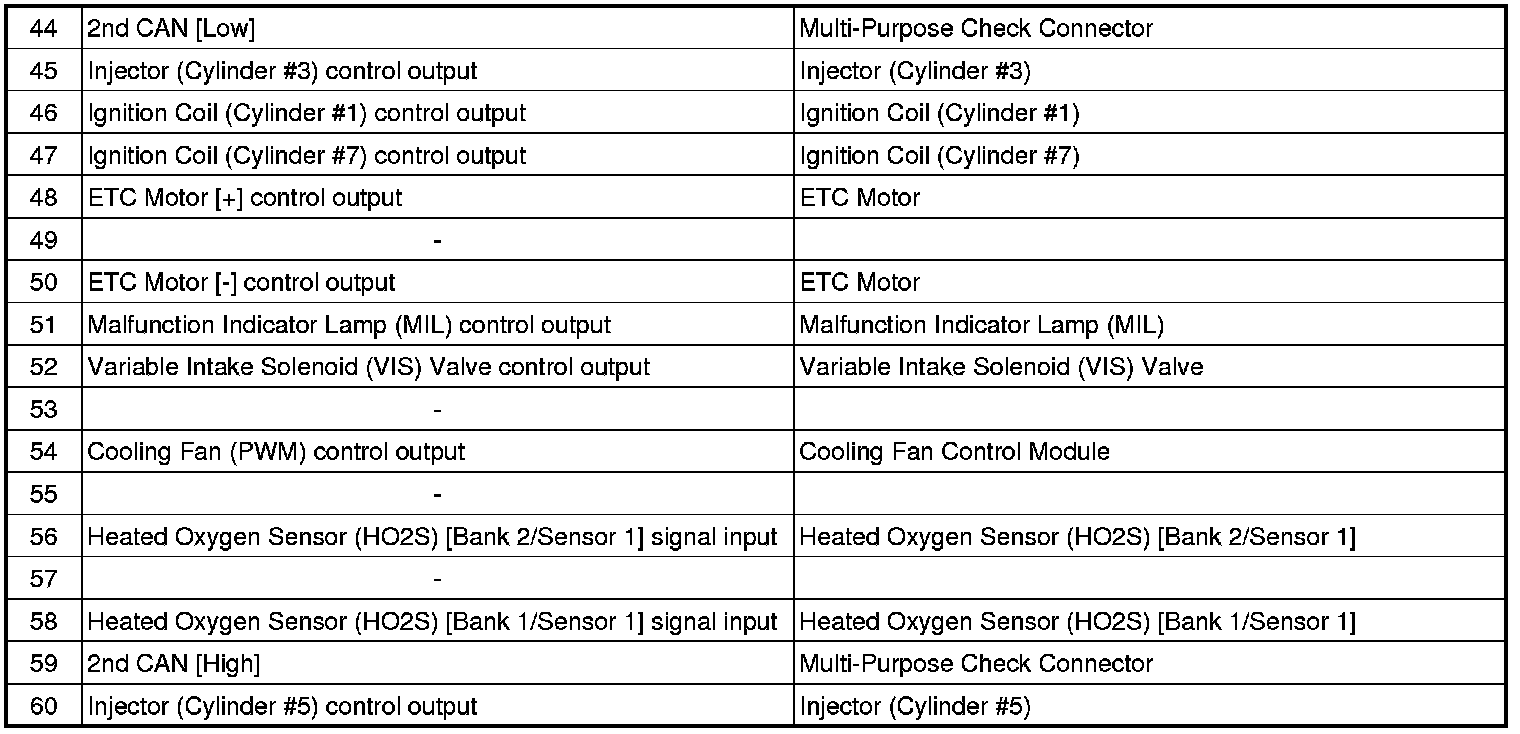

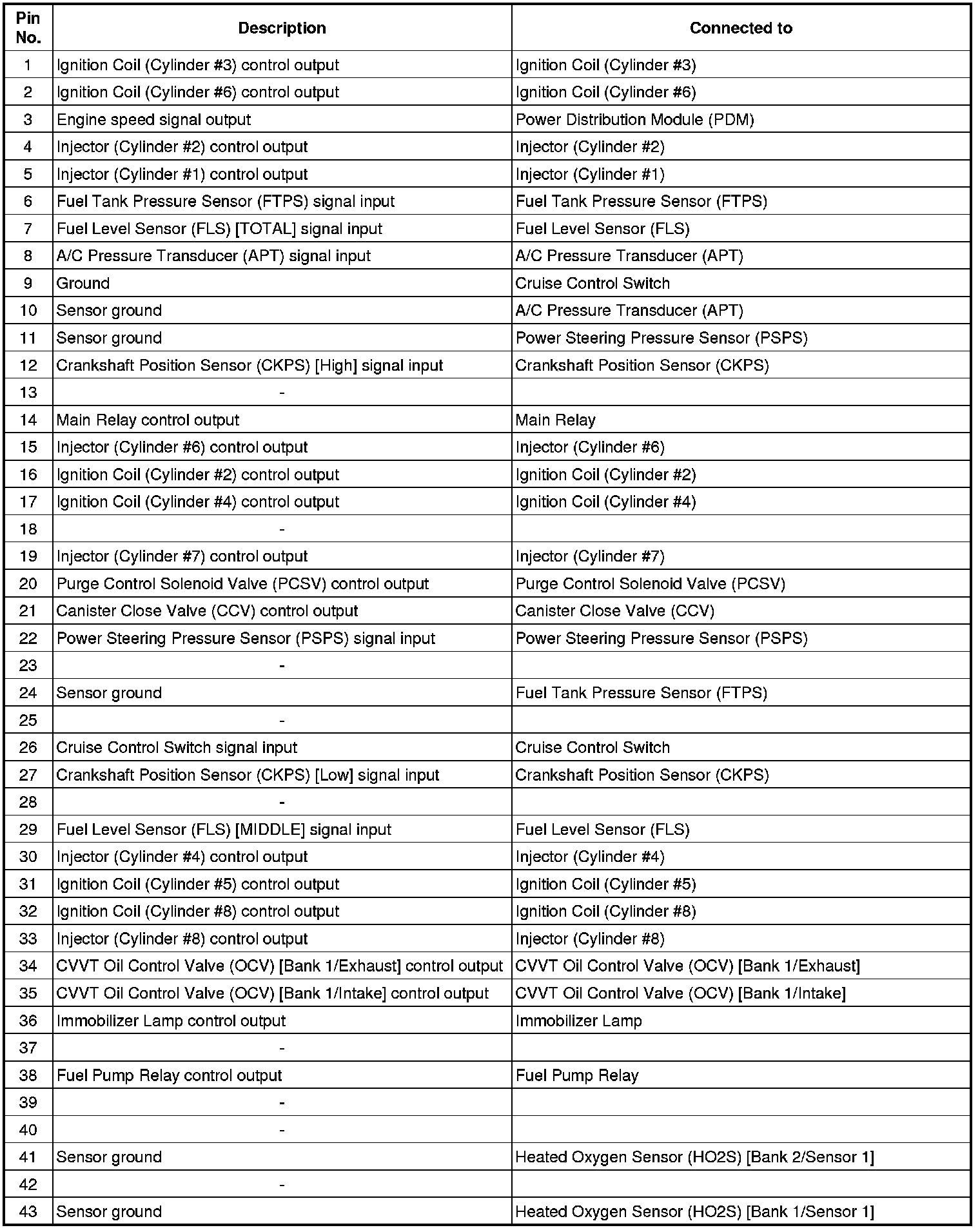

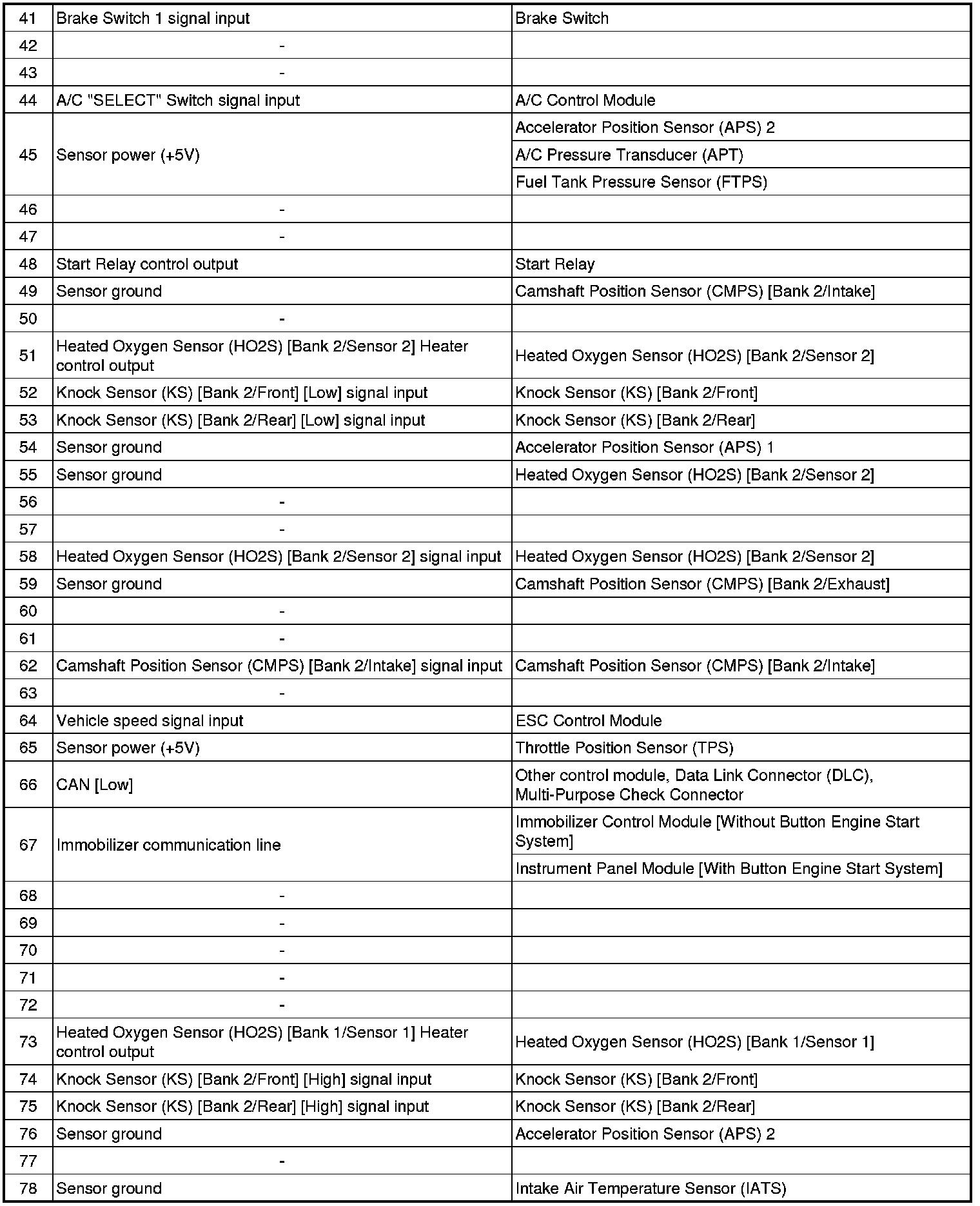

ECM Terminal Function
Connector [CTG-A]









Connector [CTG-K]

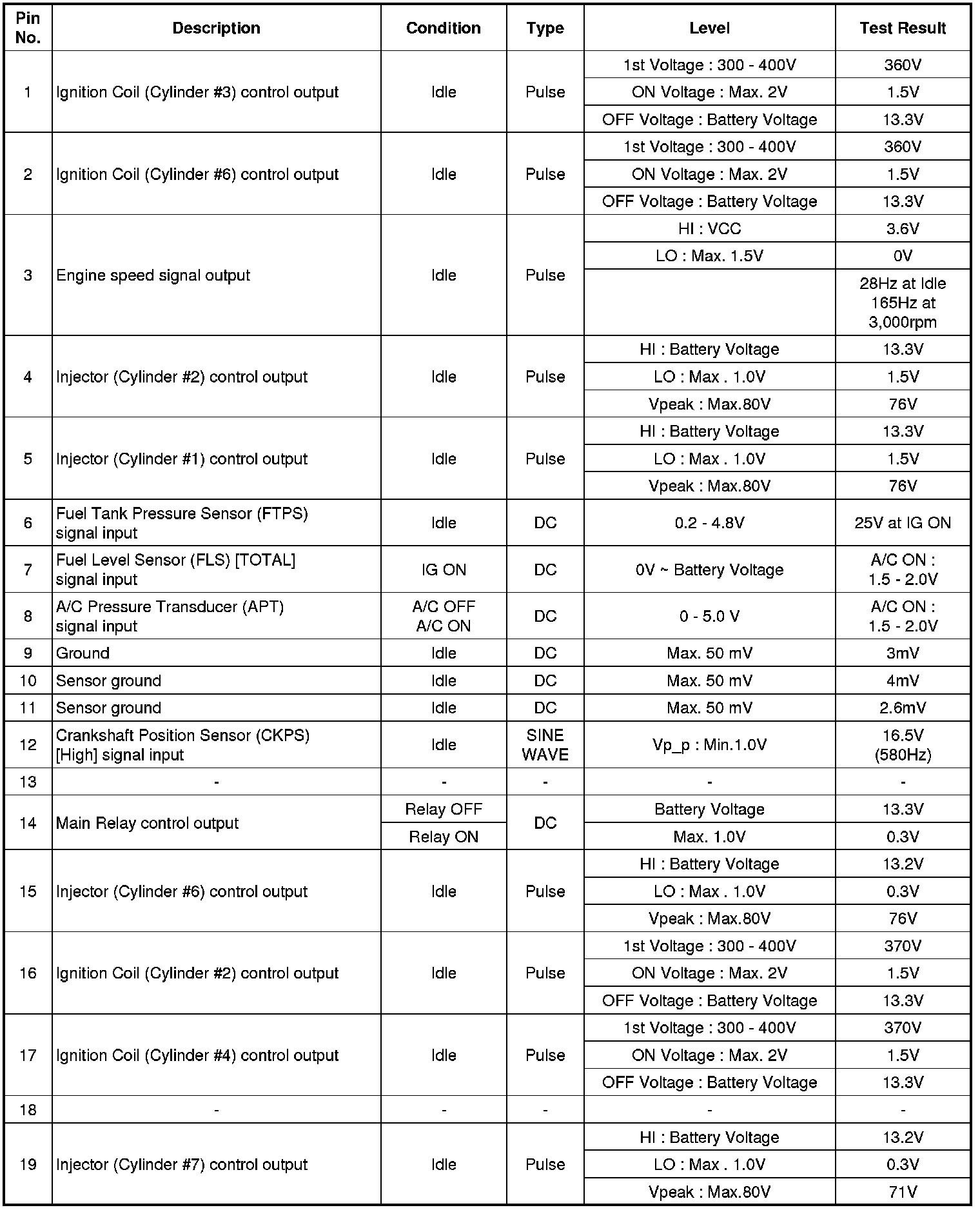

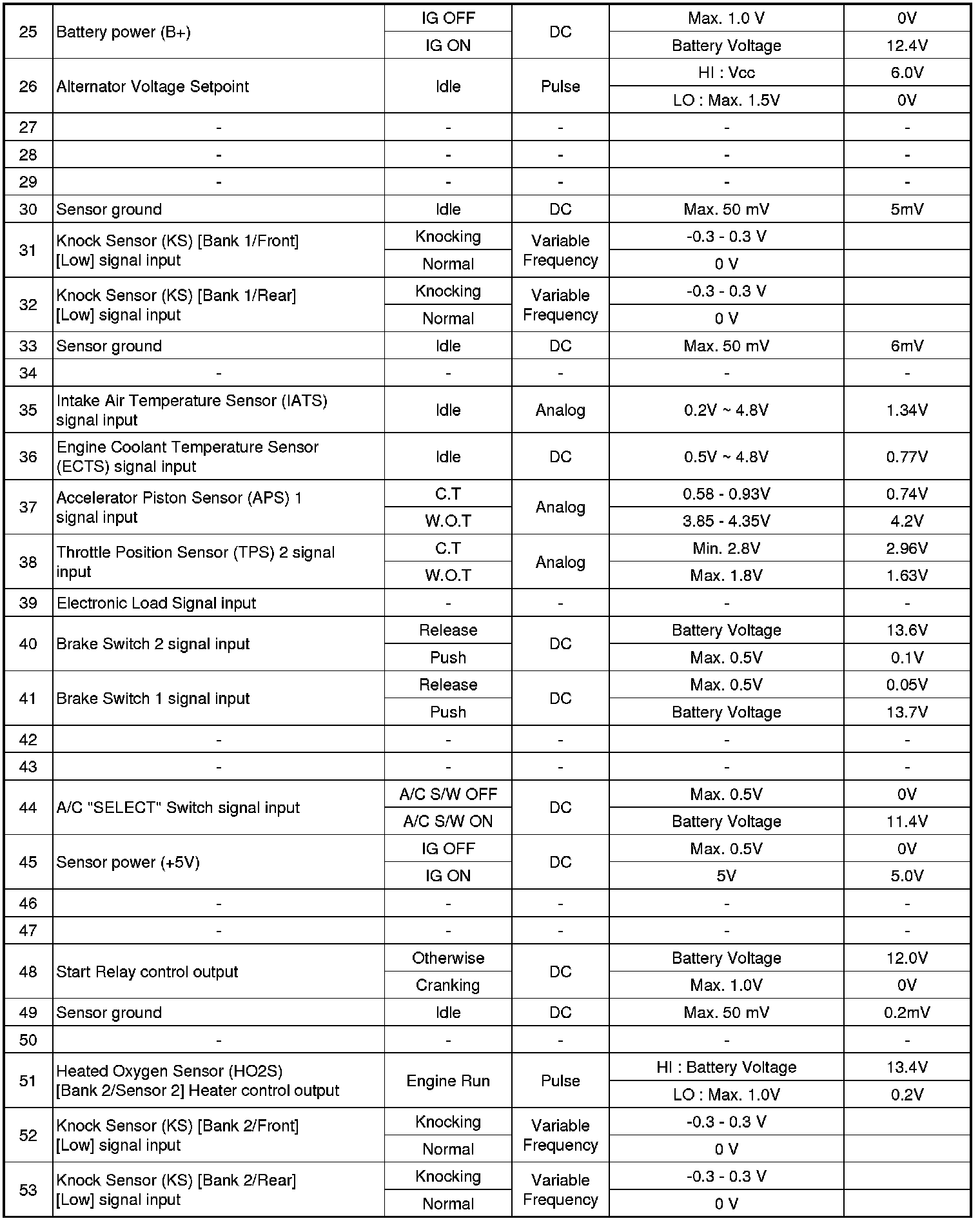

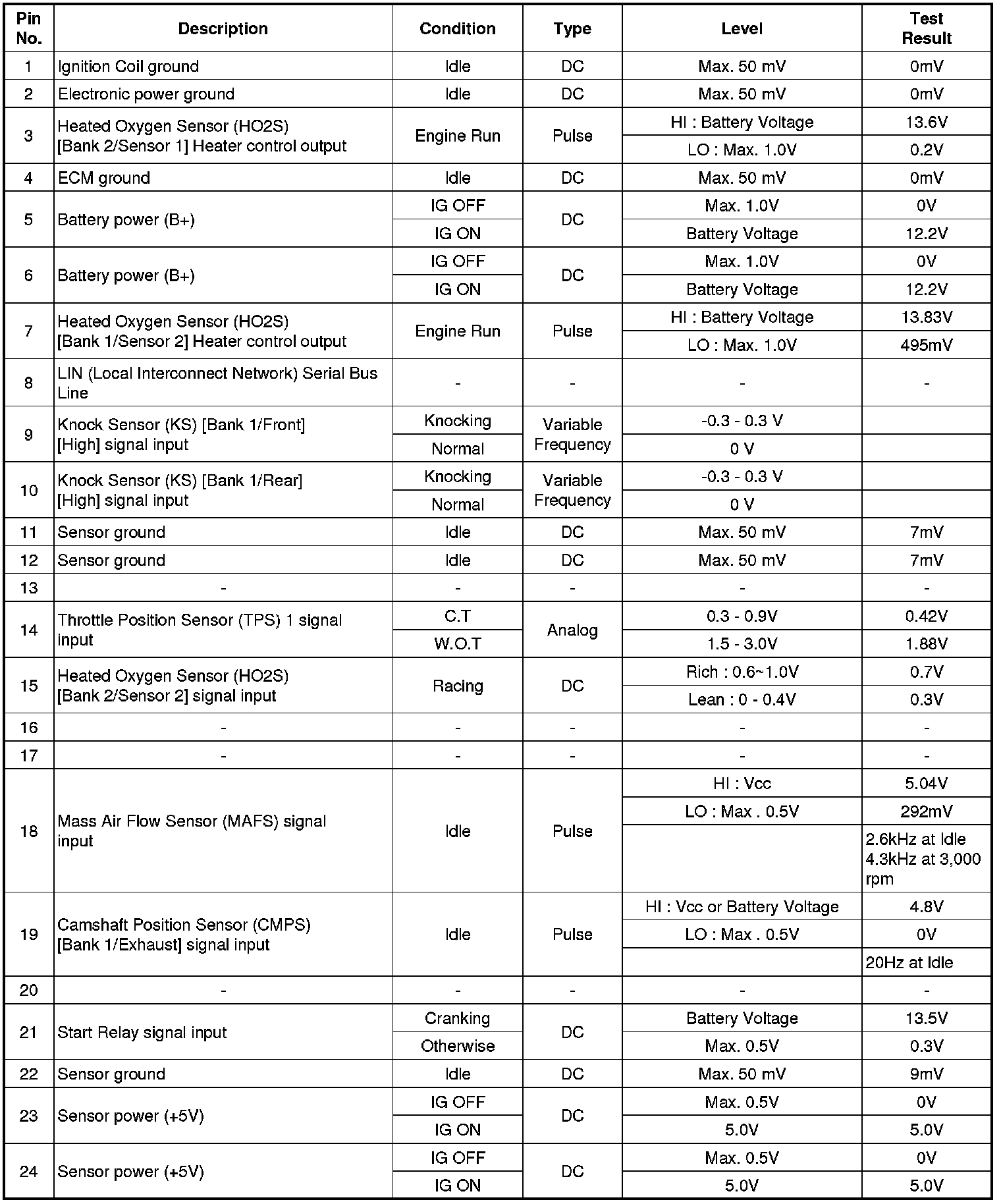

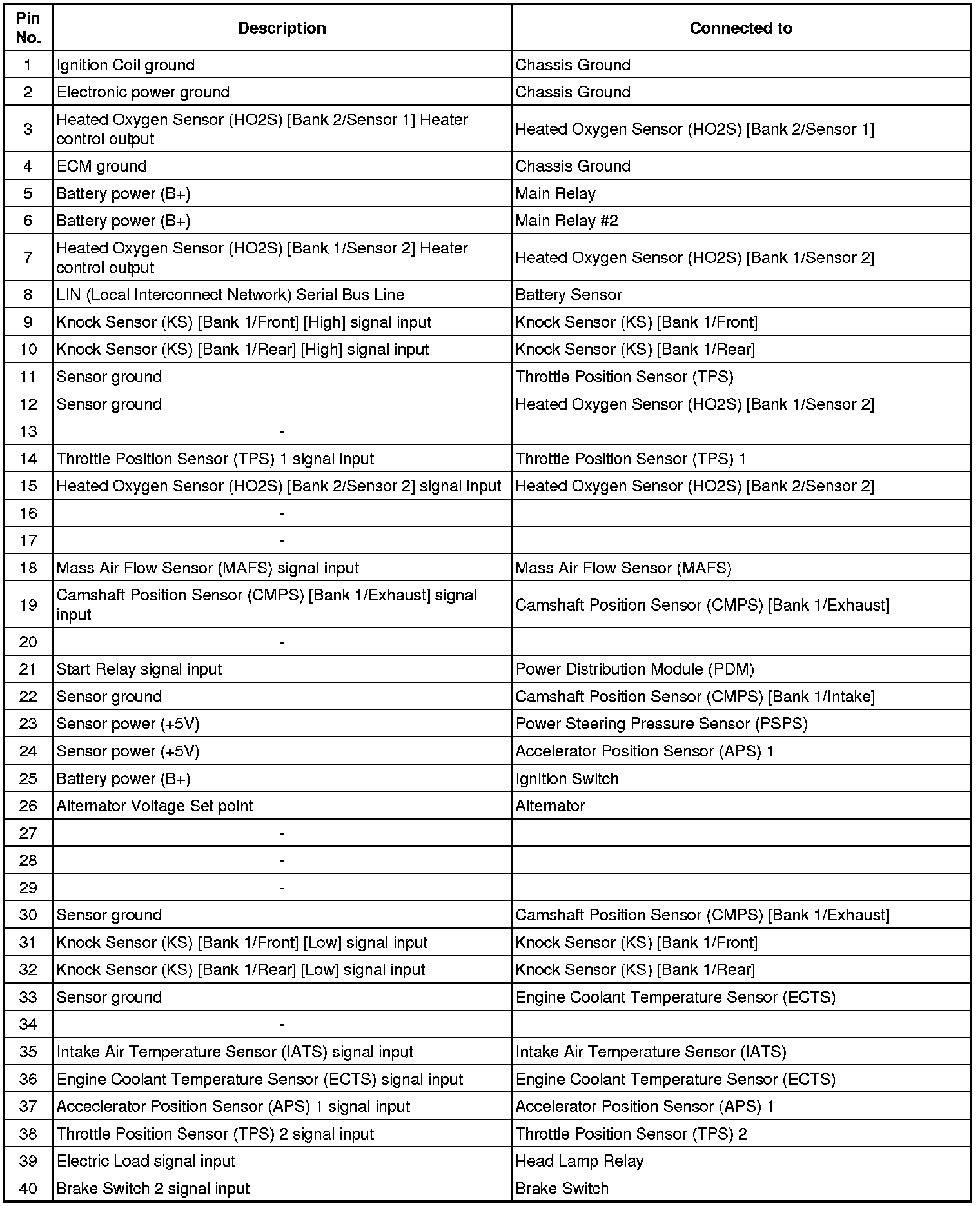

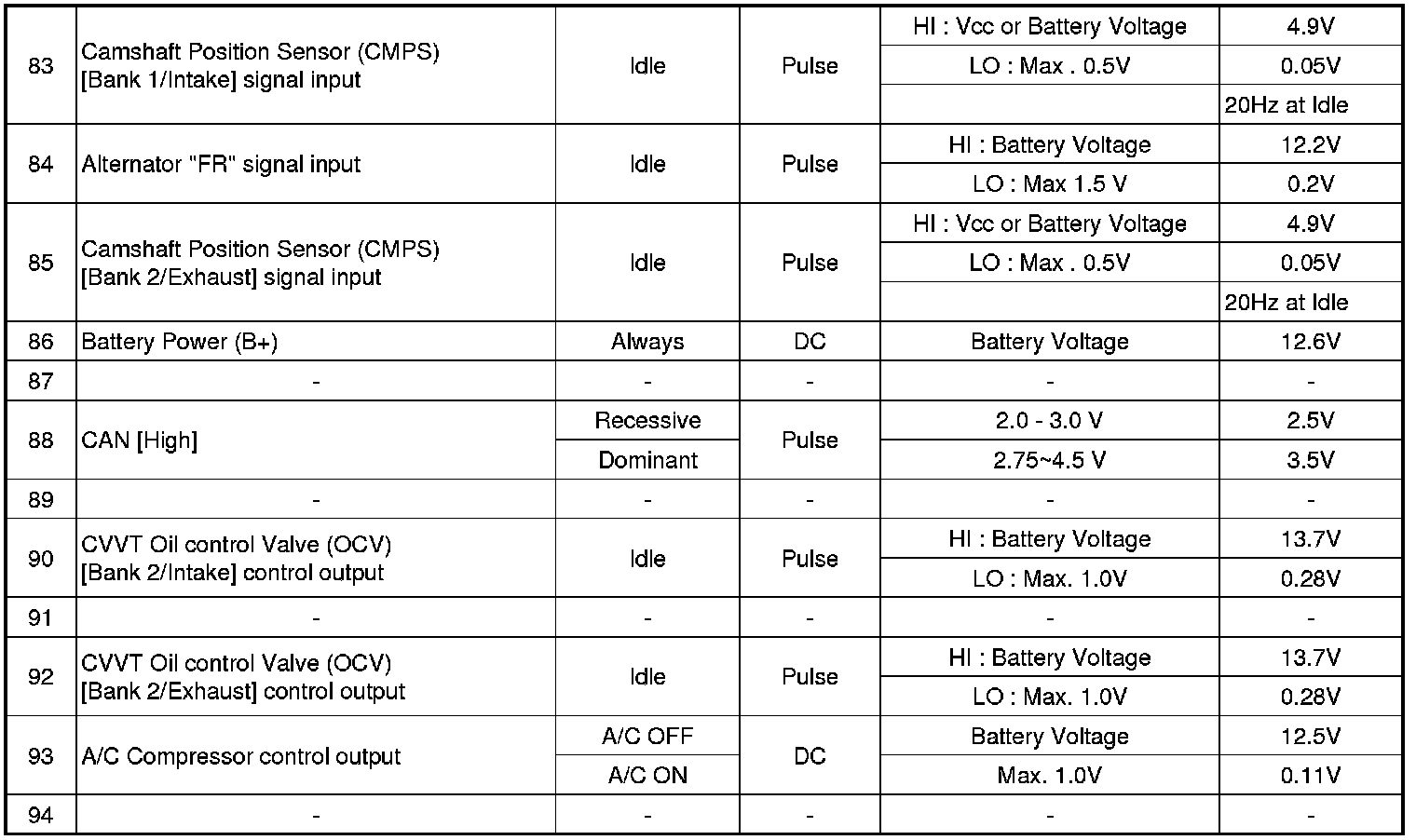

ECM Terminal Input/ Output signal

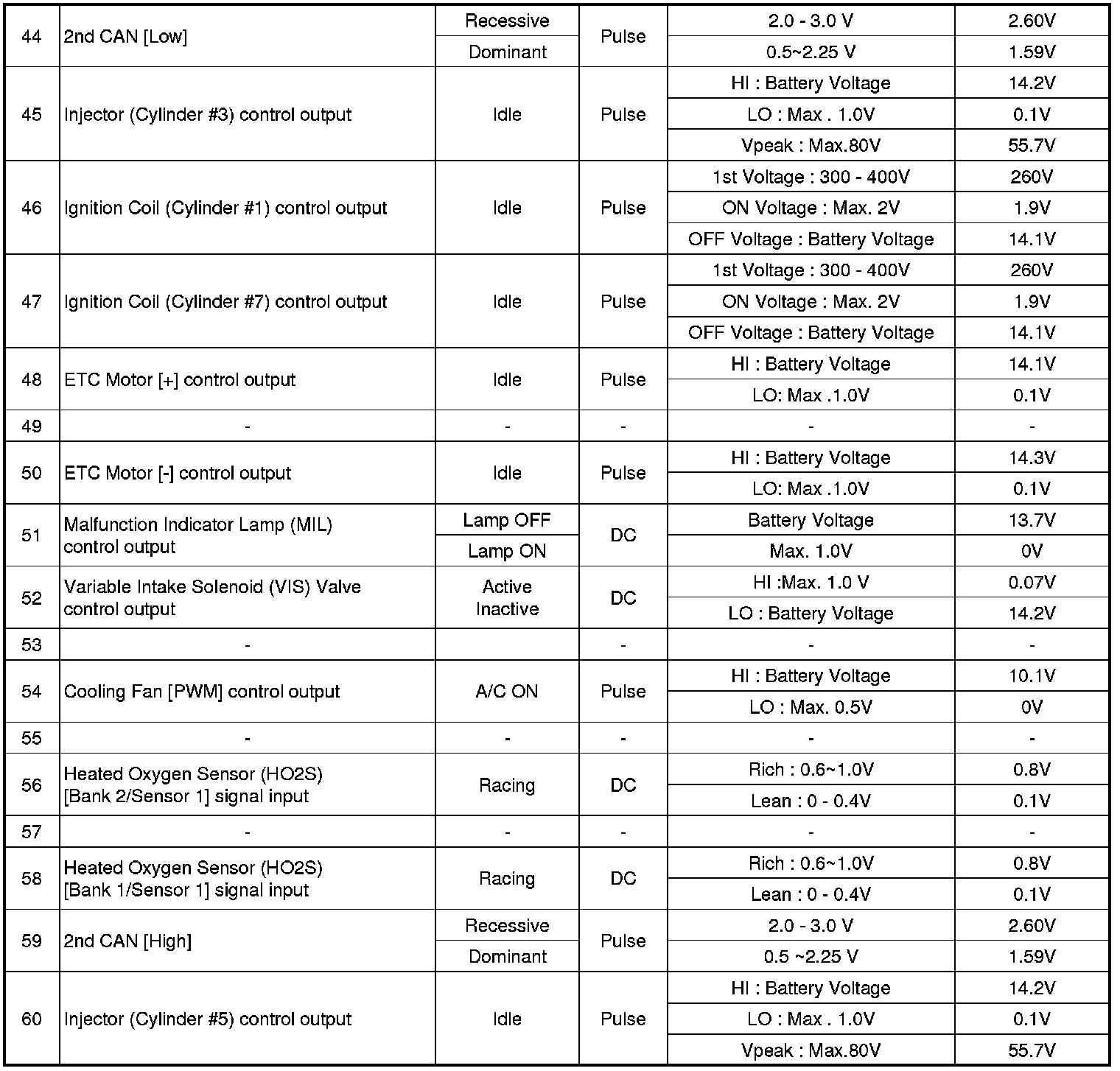

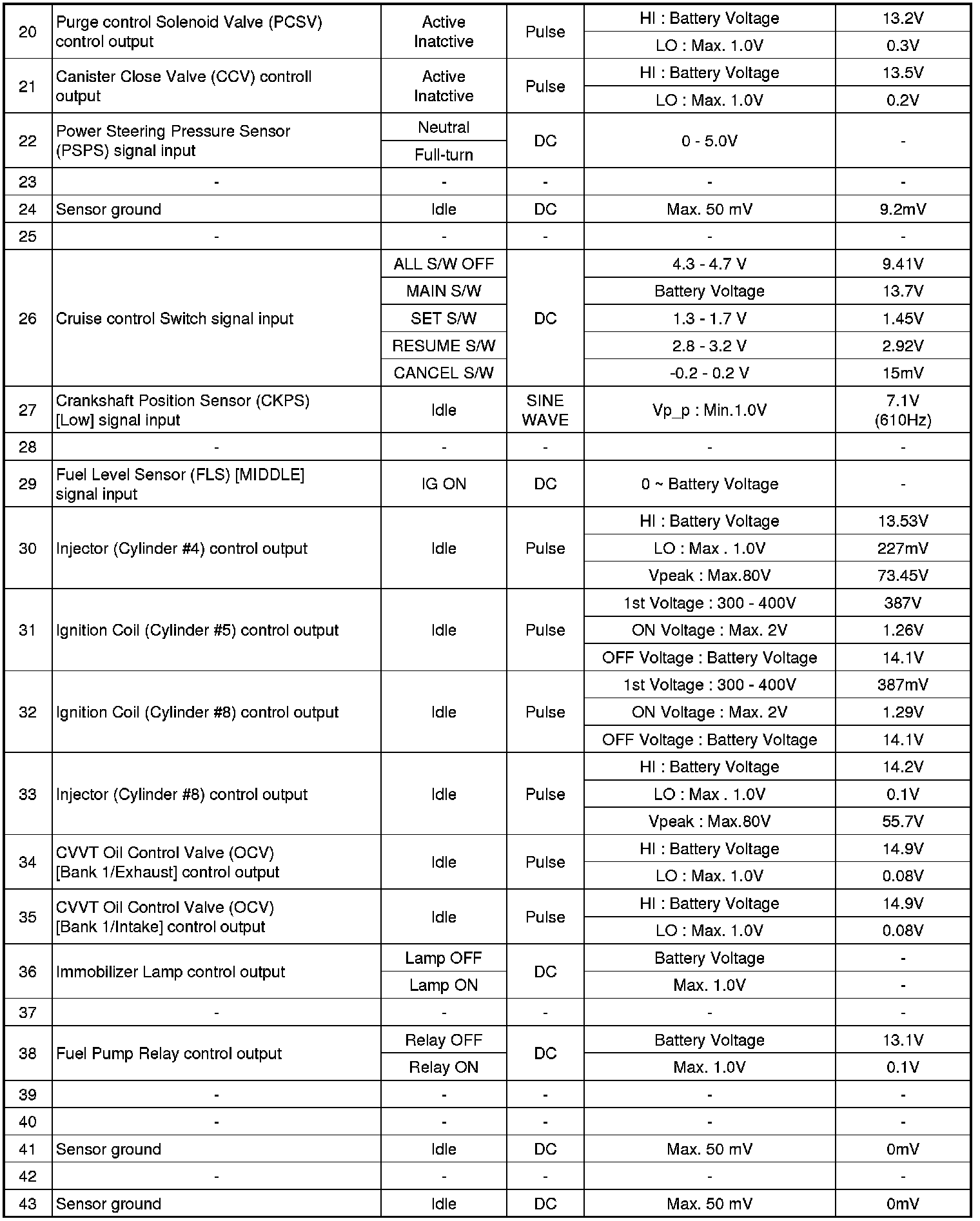

Connector [CTG-A]

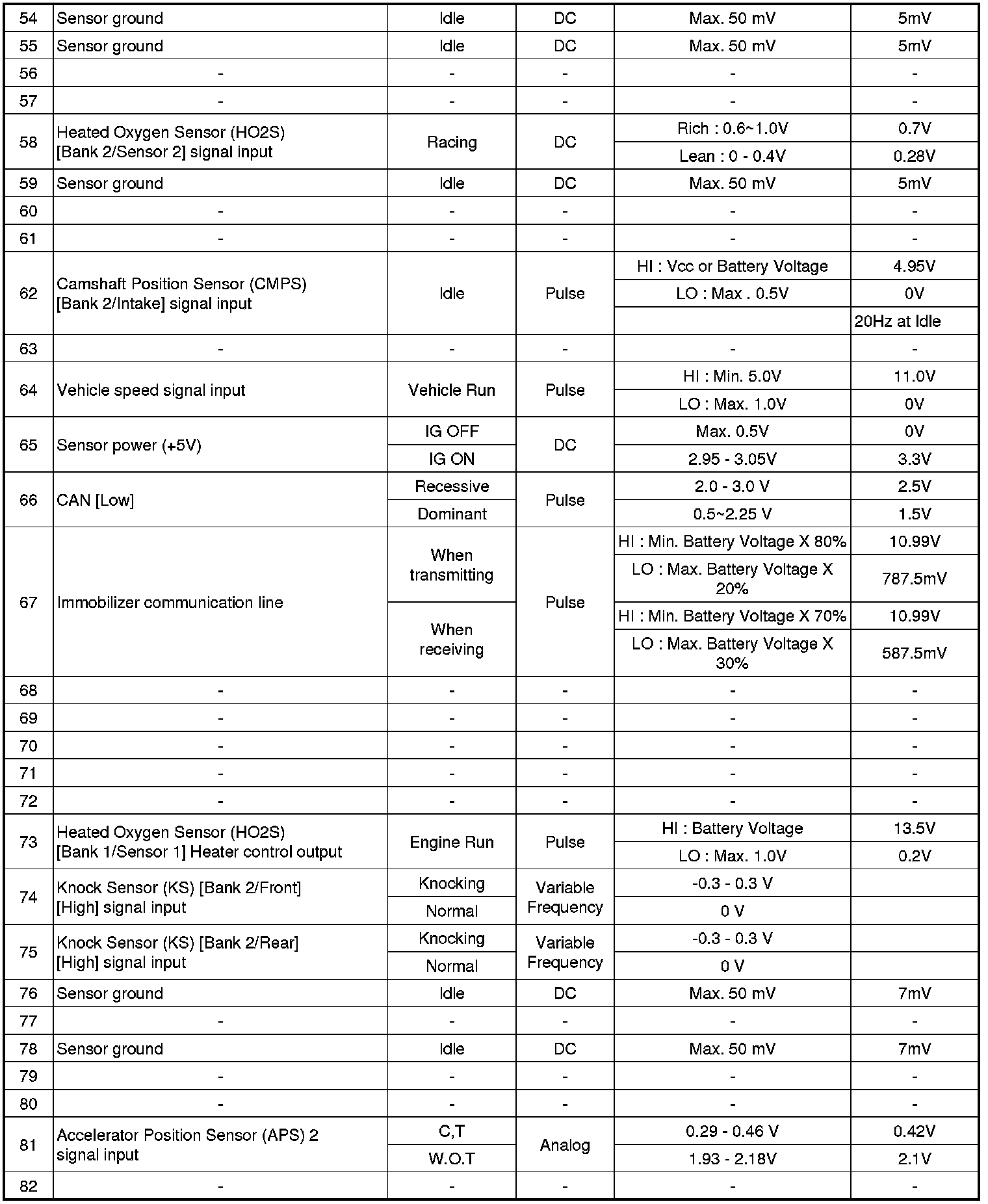

Connector [CTG-K]

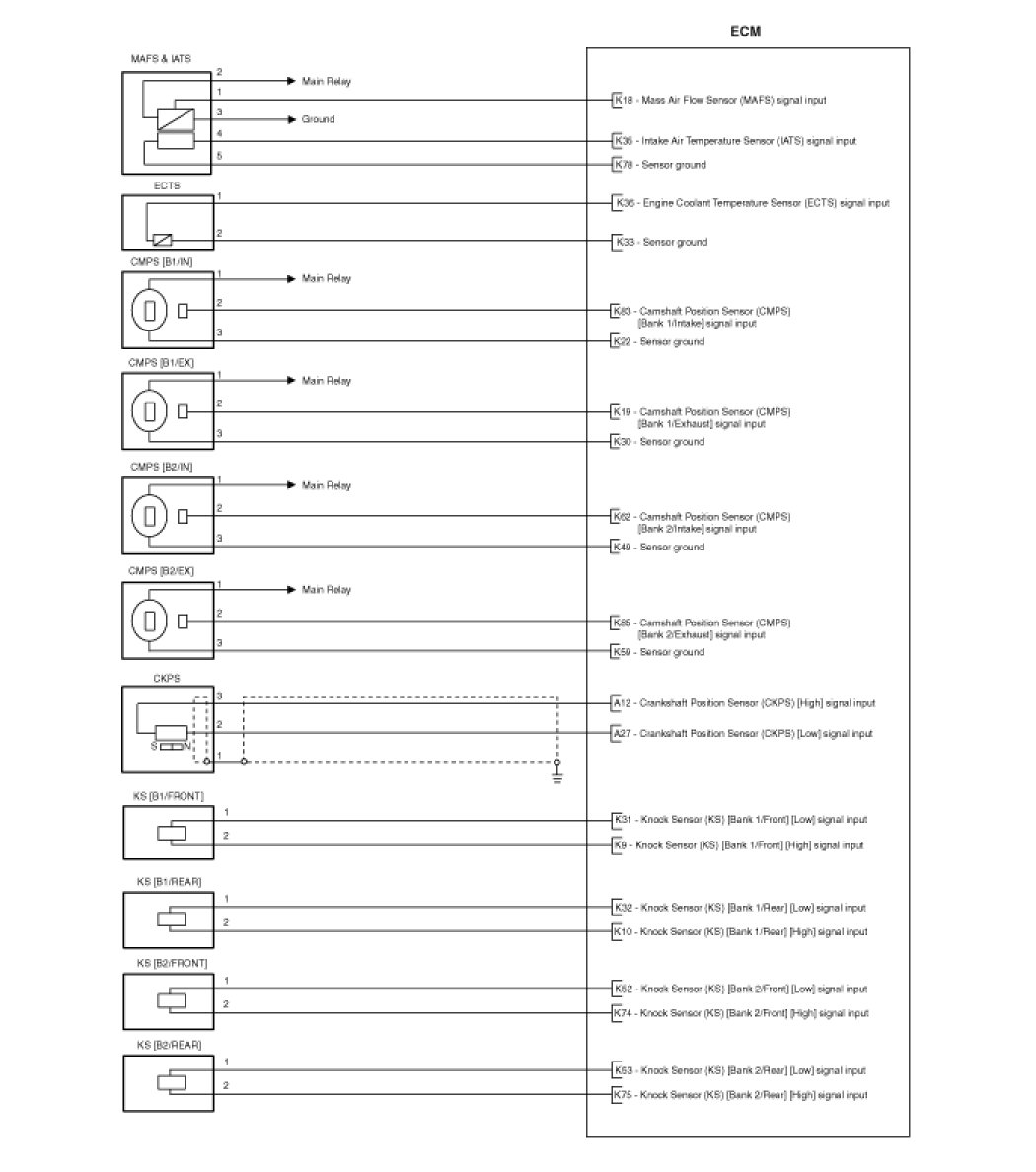

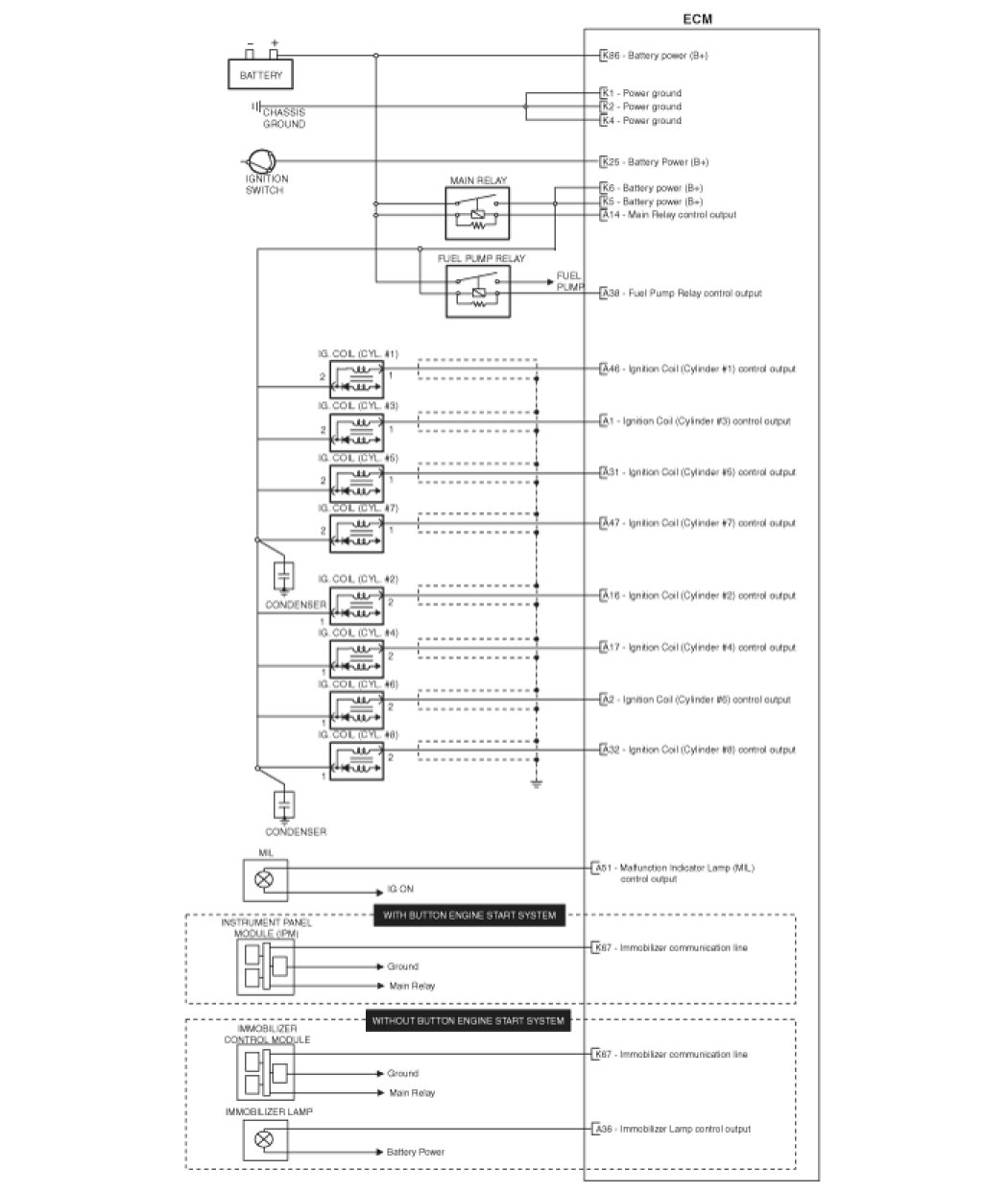

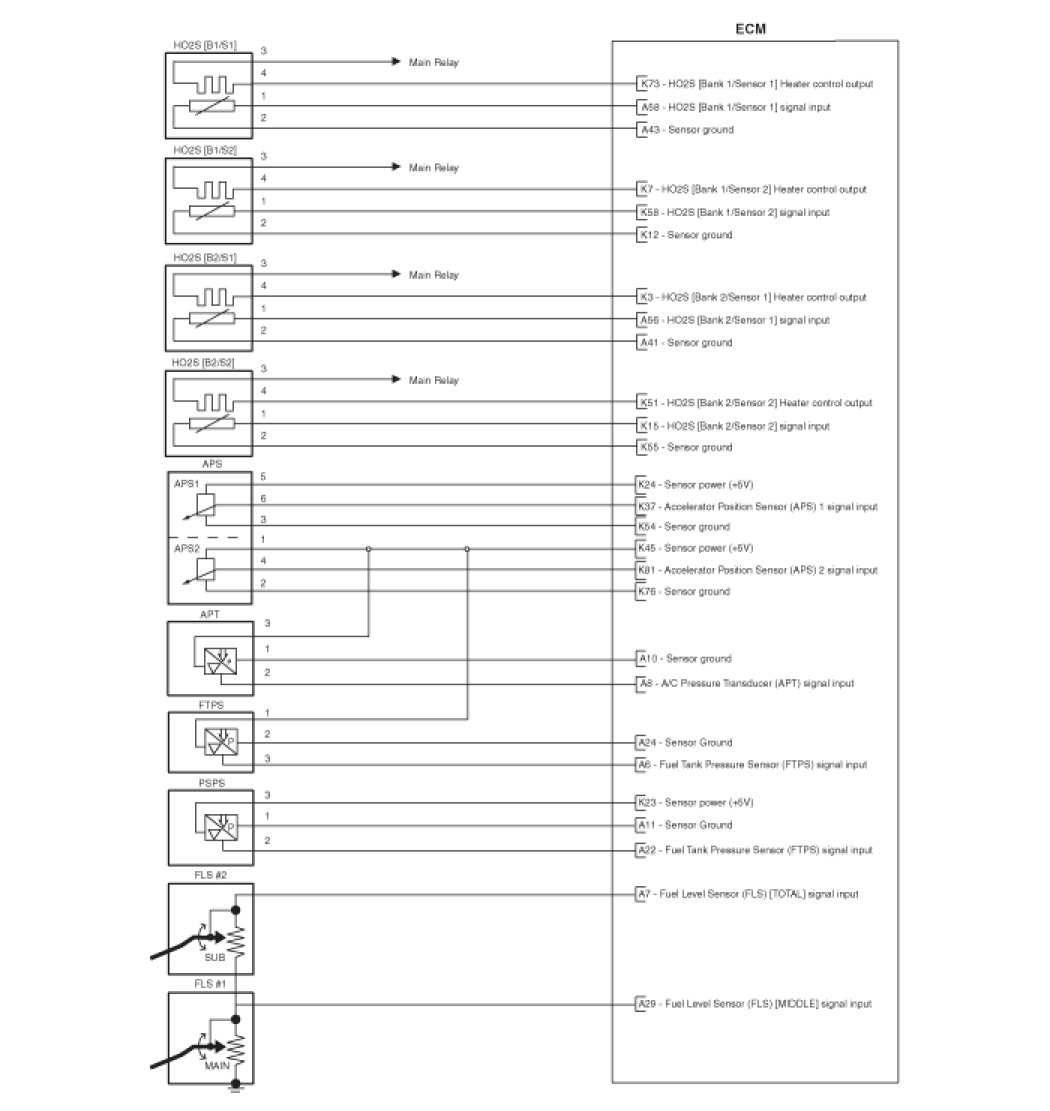

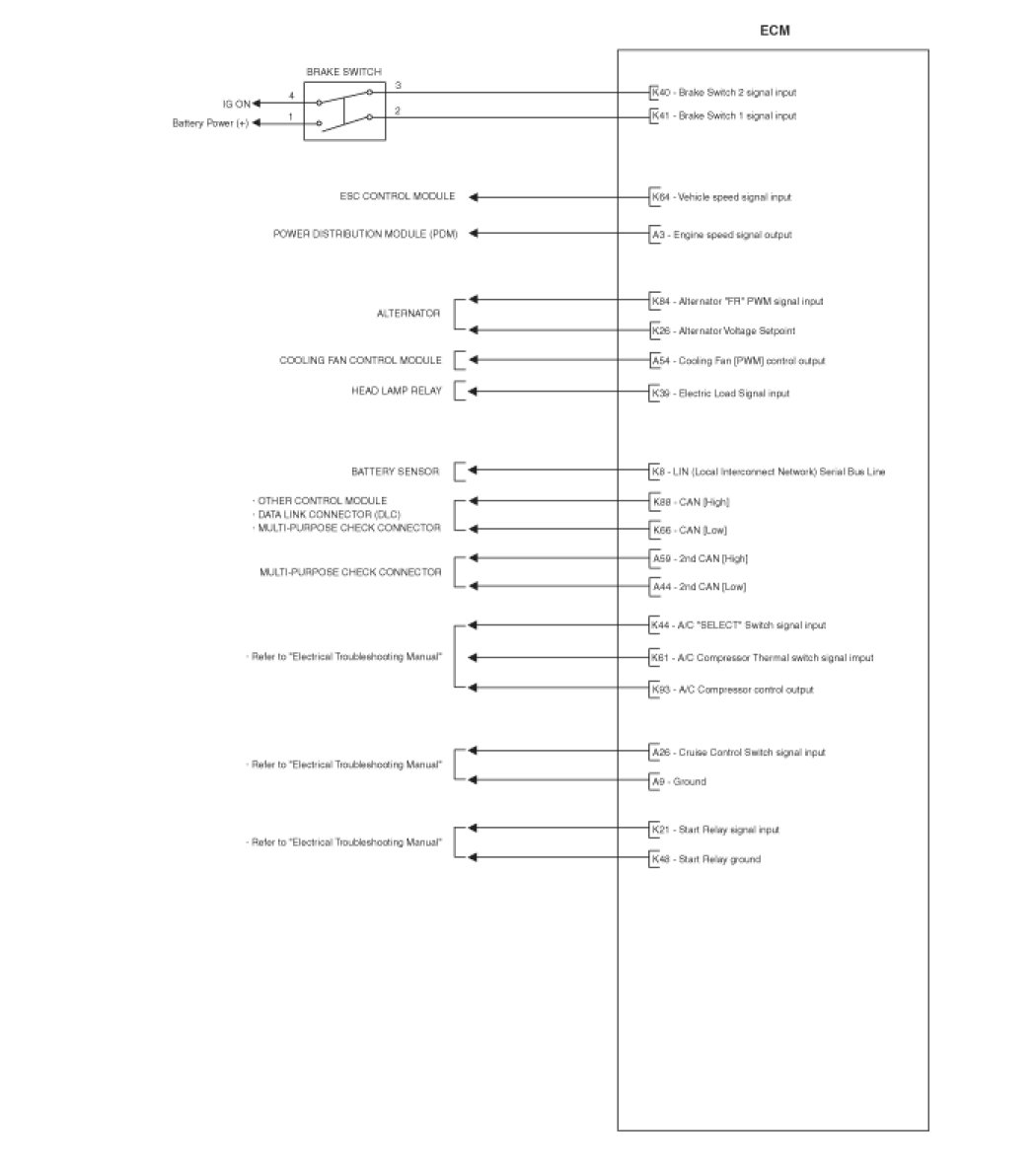

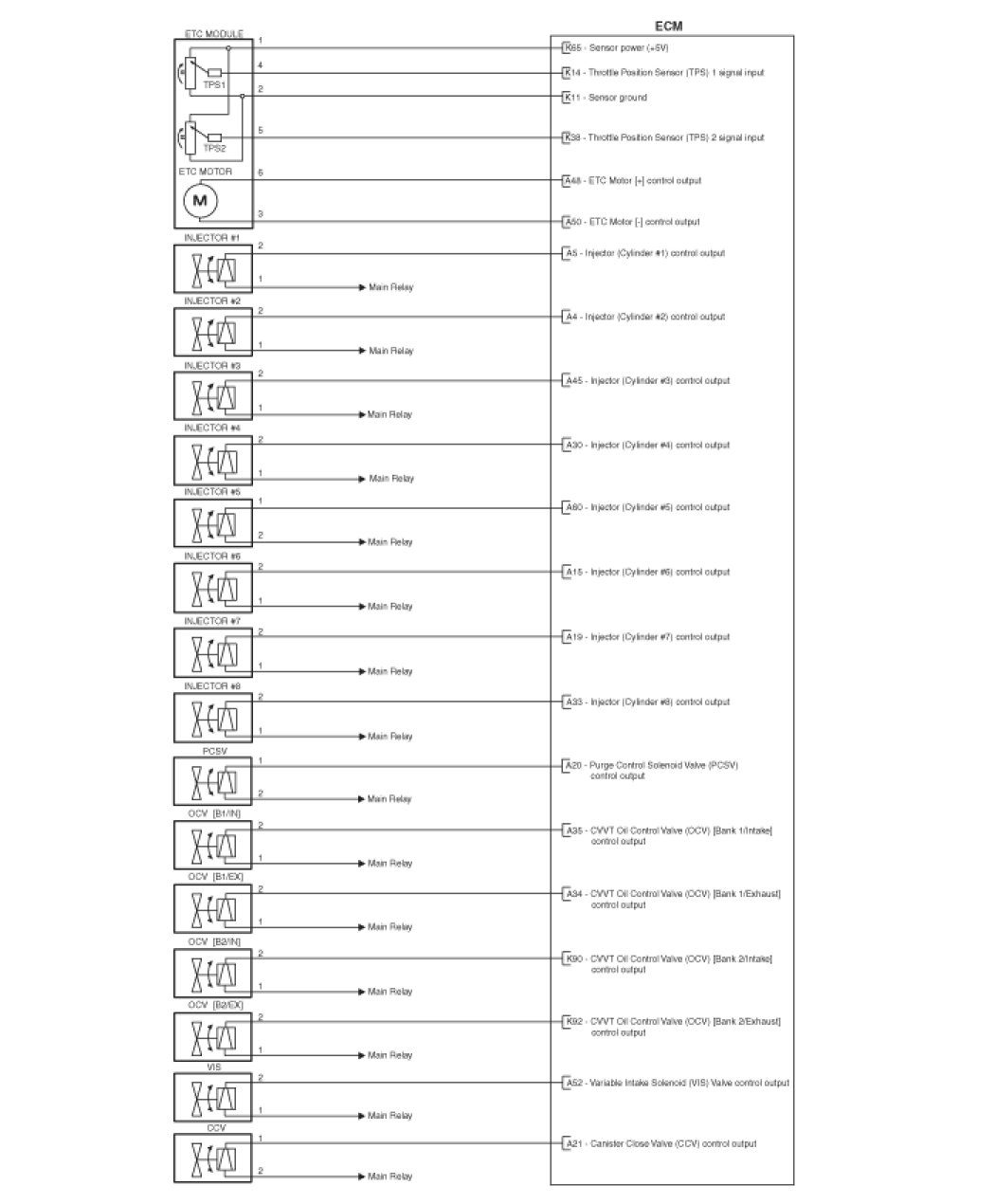

Circuit Diagram
