Electrical Diagrams





Injector Drive Box (IDB)

IDB Connector

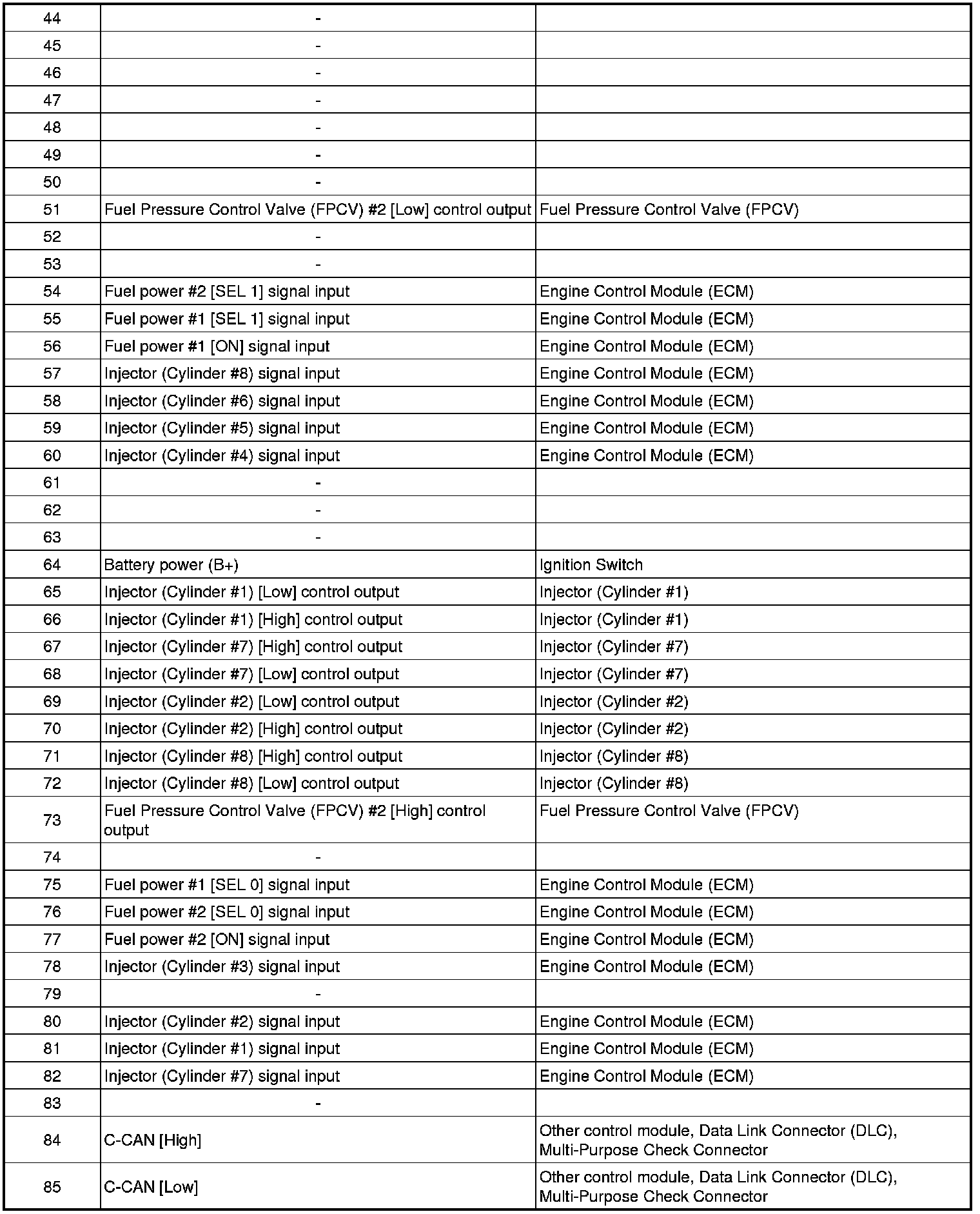

ECM Terminal Function
Connector [CTG-IDB]

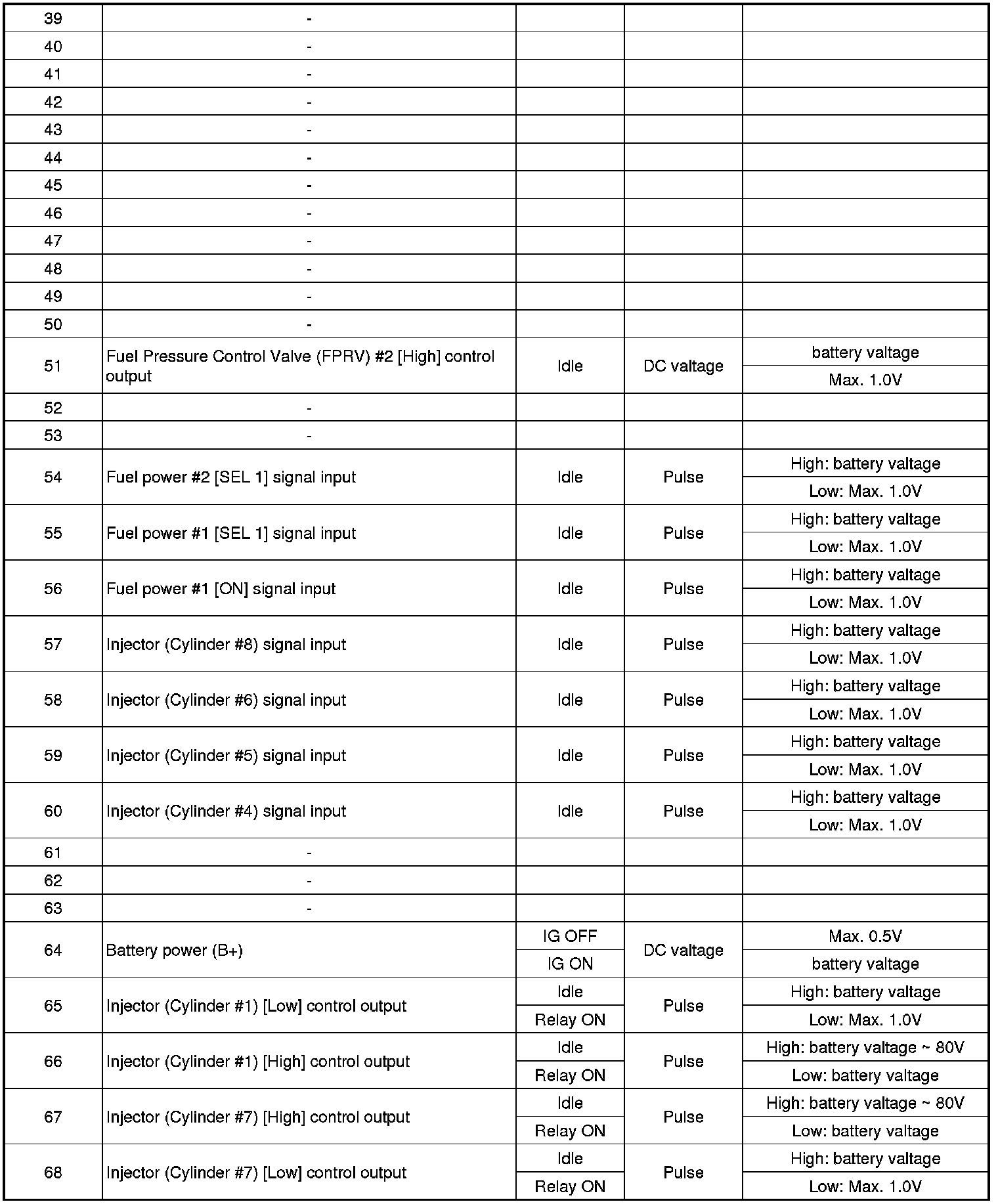

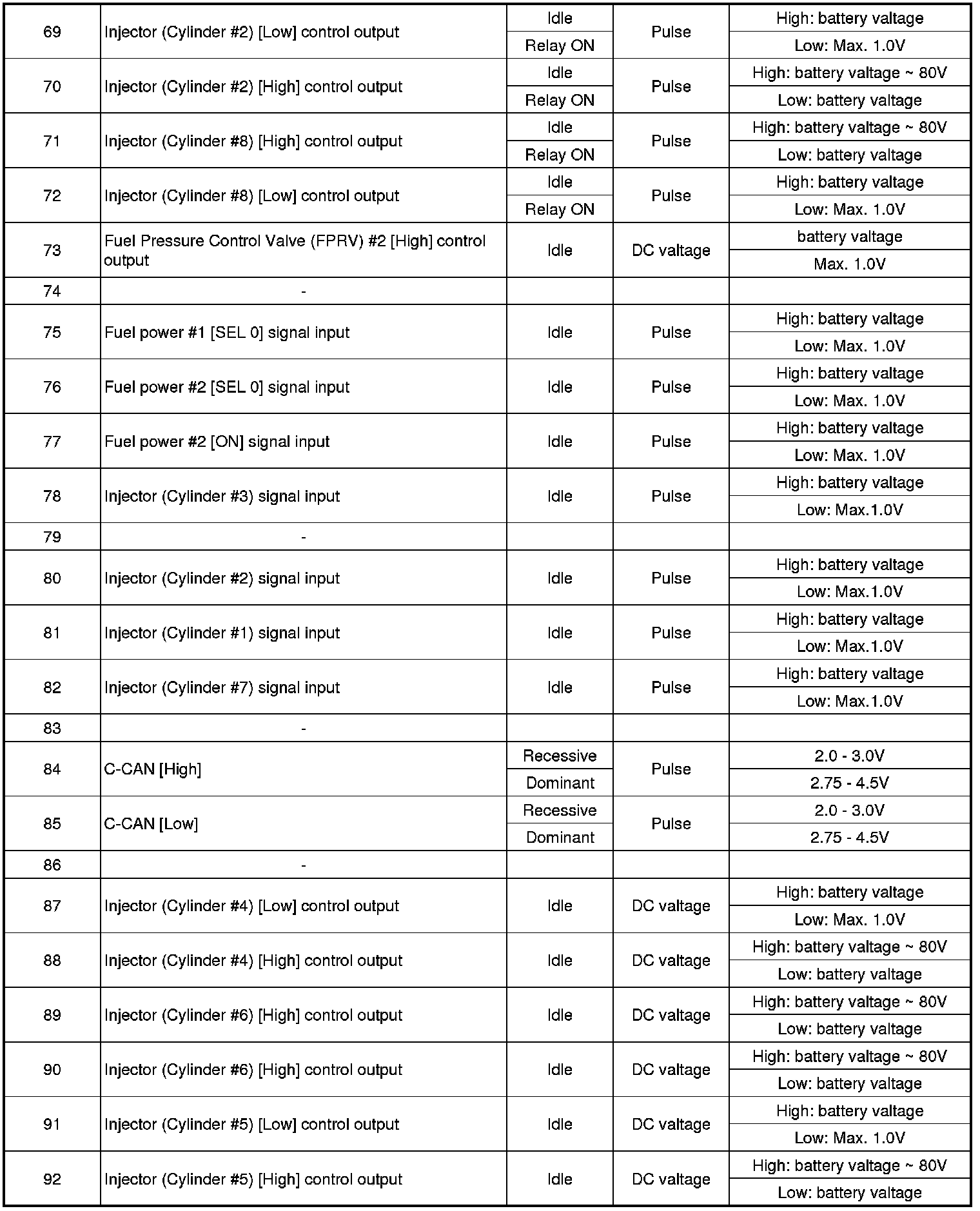

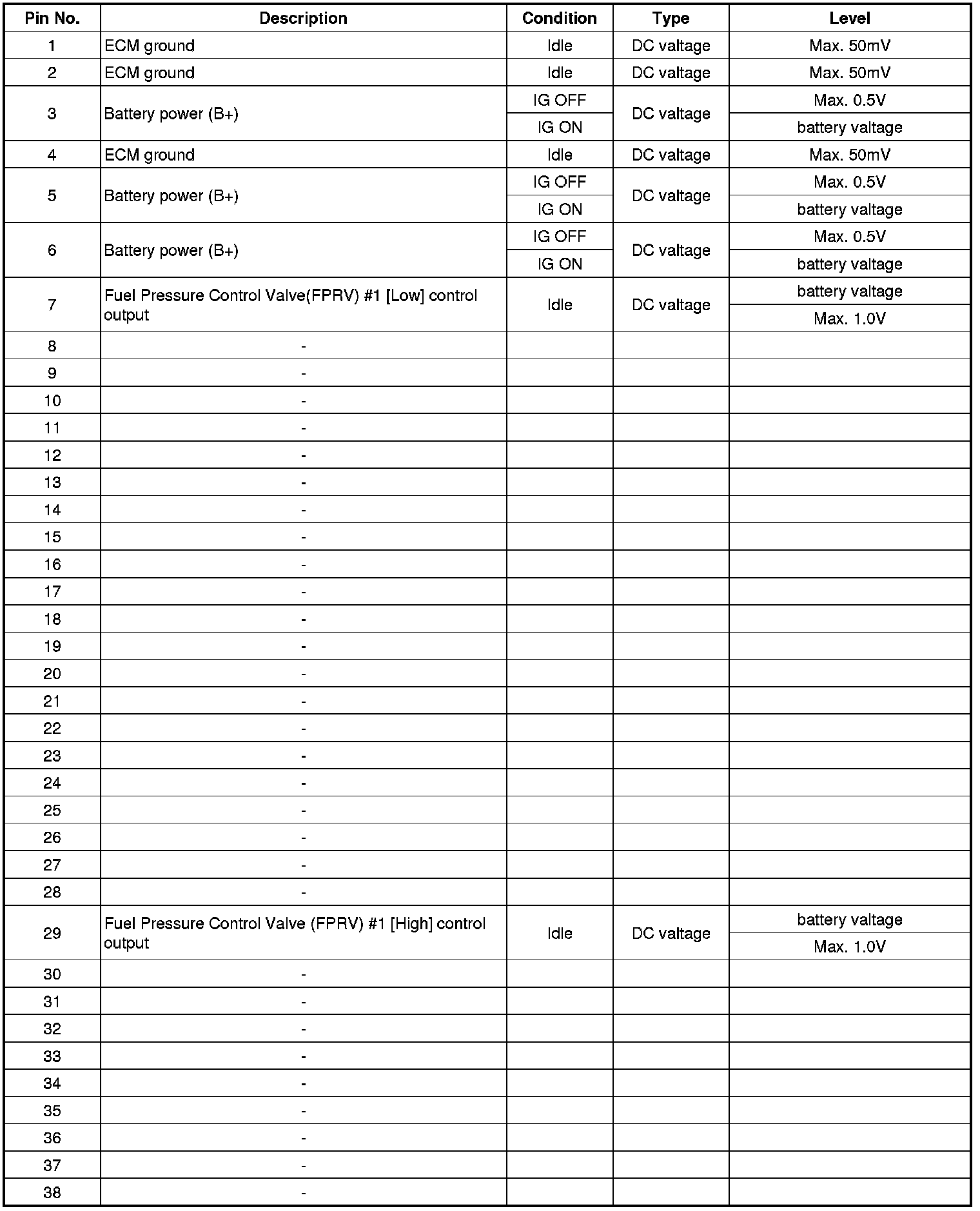

ECM Terminal Function
Connector [CTG-IDB]


















Circuit Diagram
