Power Distribution Module: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the luggage side trim.

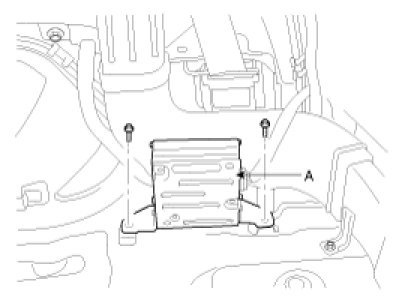

3. Remove the A/C Inverter unit (A) after loosening 2 bolts.




4. Disconnect the unit connector.

Installation

1. Install the A/C Inverter unit.
2. Connect the unit connector.
3. Install the luggage side trim.
