Repair Procedures: Inspection

  1. Remove the ESP OFF switch from the switch panel on the crash pad of the driver's side.

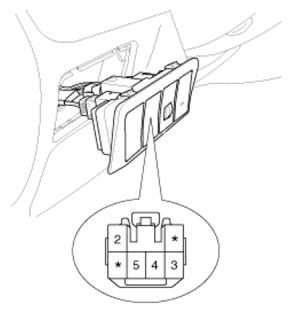

    Fig 1: Identifying Crash Pad Switch Panel Connector Terminals
    G06844412Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
