Engine Control System - G3.5 DOHC
>>
VCM Position Sensor
>>
Troubleshooting
>>
Wave Form
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wave Form

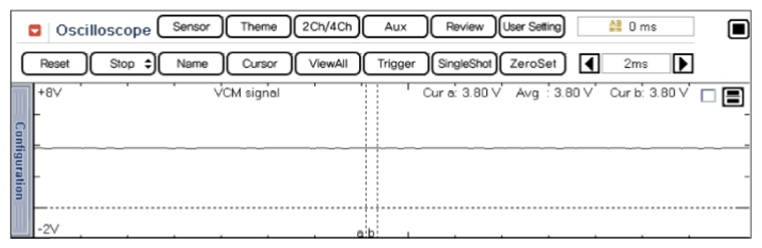

Fig 1: VCMA Open - Wave Form
Courtesy of HYUNDAI MOTOR CO.

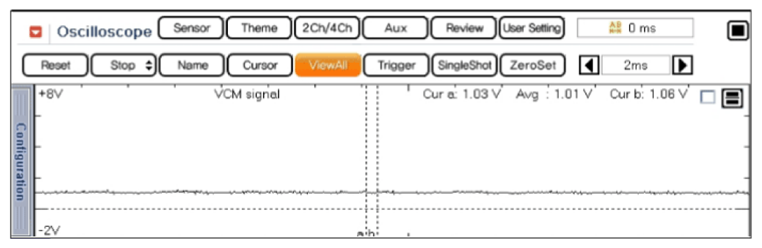

Fig 2: VCMA Close - Wave Form
Courtesy of HYUNDAI MOTOR CO.
