Components And Components Location





Components

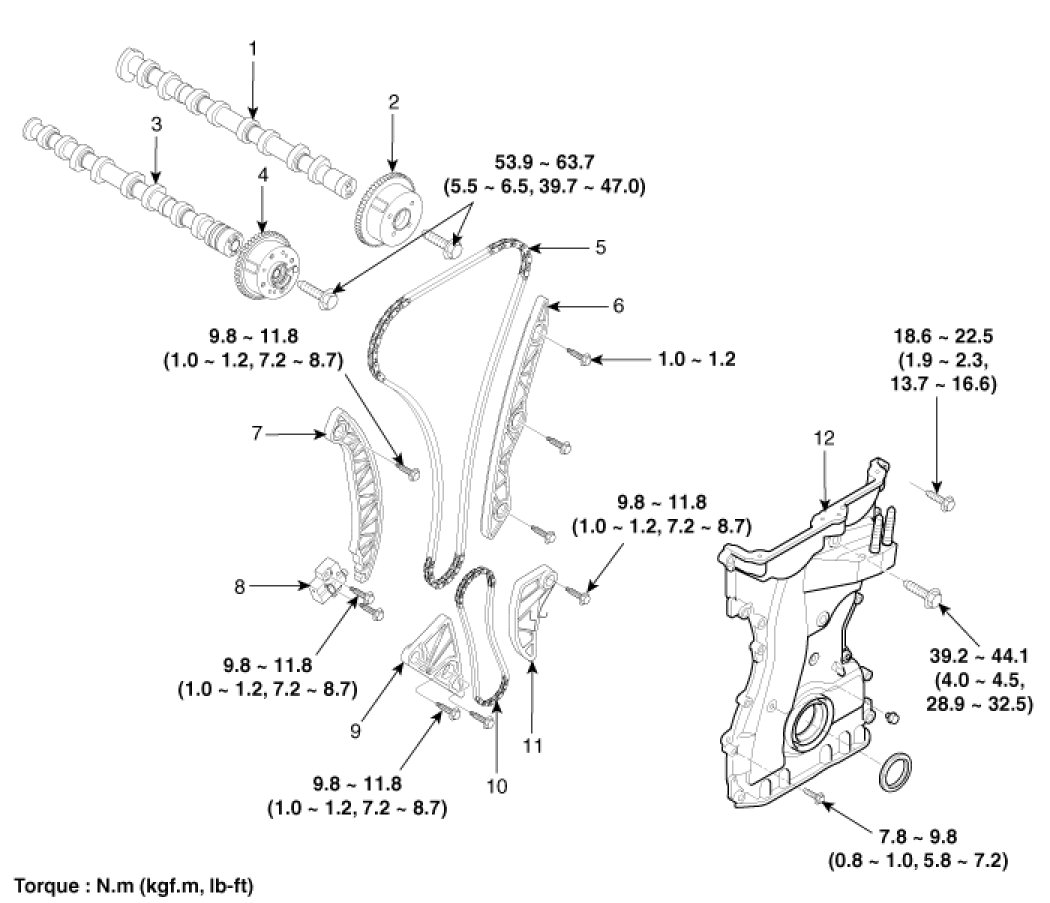

[2.0L Engine only (Oil pump type)]

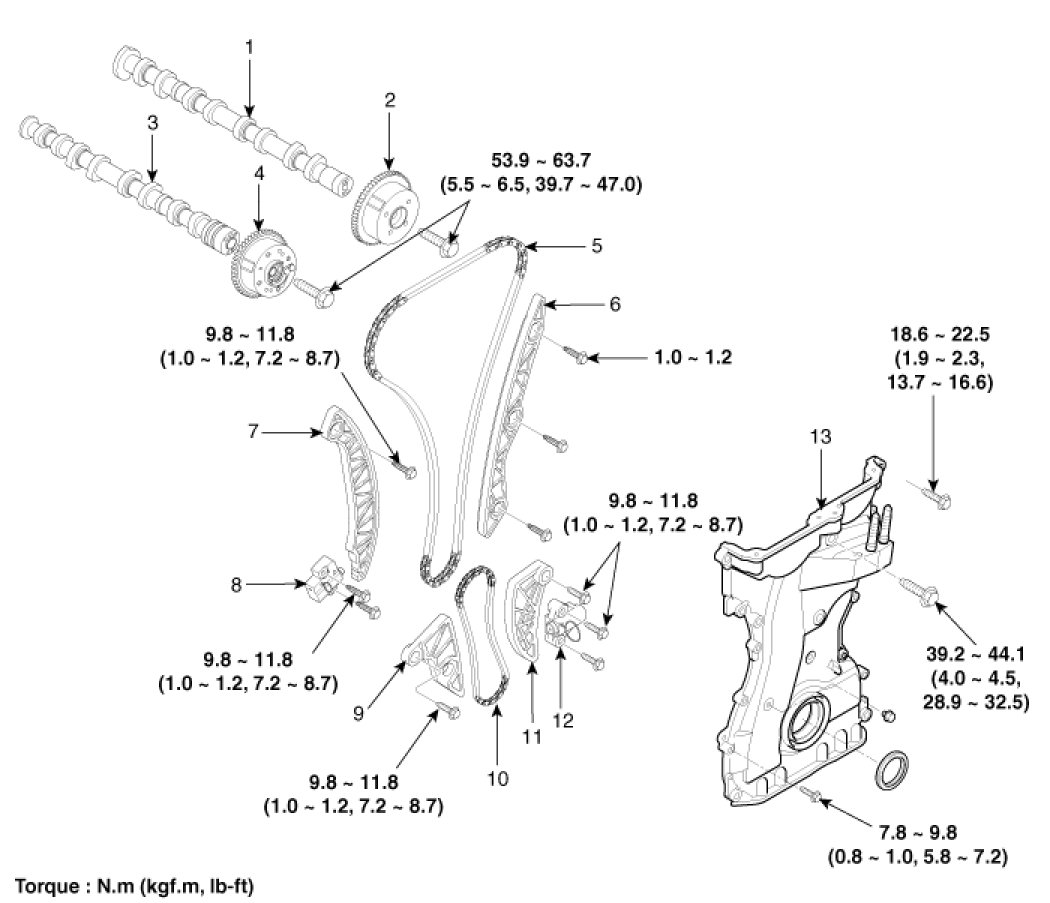

[2.4L Engine only (Balance shaft module type)]
