Circuit Diagram

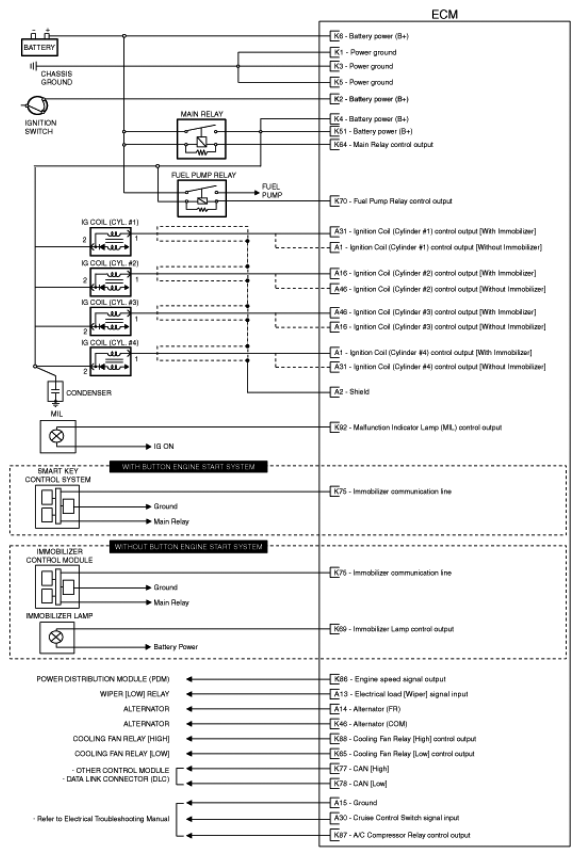

Fig 1: Engine Control System Circuit Diagram (1 Of 4)
G06872175Courtesy of HYUNDAI MOTOR CO.

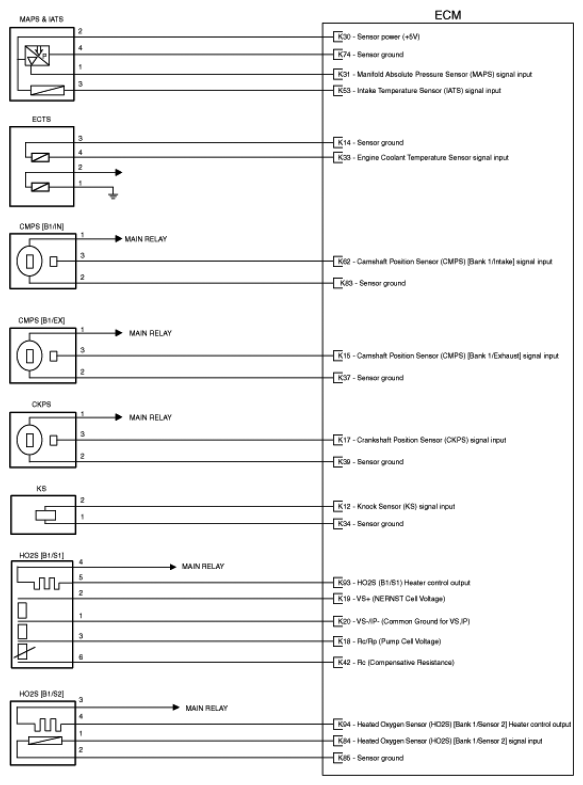

Fig 2: Engine Control System Circuit Diagram (2 Of 4)
G06872176Courtesy of HYUNDAI MOTOR CO.

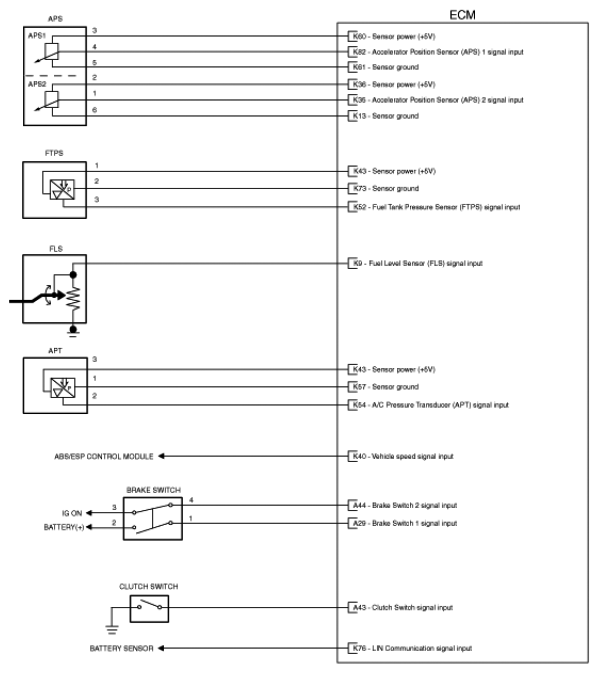

Fig 3: Engine Control System Circuit Diagram (3 Of 4)
G06872177Courtesy of HYUNDAI MOTOR CO.

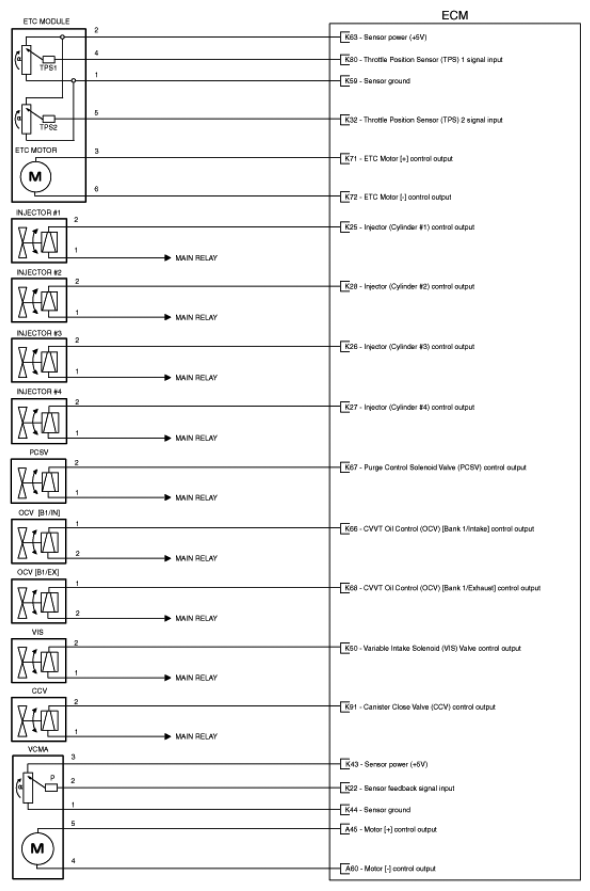

Fig 4: Engine Control System Circuit Diagram (4 Of 4)
G06872178Courtesy of HYUNDAI MOTOR CO.
