Overhead Console Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
Put on gloves to protect your hands.

After loosening the mounting screws, then remove the overhead console assembly (A).

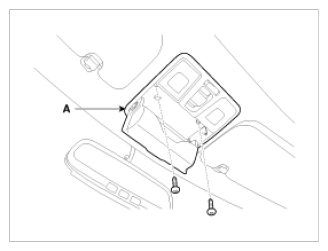

Fig 1: Identifying Overhead Console Assembly And Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

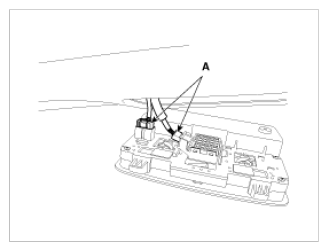

Fig 2: Identifying Overhead Console Assembly Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector is connected properly.
