General Information - Engine Electrical: Specifications
IGNITION SYSTEM SPECIFICATION
| Items | Specification | |
|---|---|---|
| Ignition coil | Primary resistance | 0.75 ± 15% (Ω) |
| Secondary resistance | 5.9 (kΩ) | |
| Spark plugs | Type | SILZKR6B10 |
| Gap | 0.9 ~ 1.0 mm (0.0433 ~ 0.0394 in.) | |
STARTING SYSTEM SPECIFICATION
| Items | Specification | ||
|---|---|---|---|
| Starter | Rated voltage | 12 V, 0.9kW | |
| No. of pinion teeth | 8 | ||
| No-load characteristics | Voltage | 11.5V | |
| Ampere | 60A, MAX | ||
| Speed | 5, 500rpm, MIN | ||
CHARGING SYSTEM SPECIFICATION
| Items | Specifications | ||
|---|---|---|---|
| Alternator (AMS) | Rate voltage | 13.5V, 90A | |
| Speed in use | 1, 000 ~ 18, 000 rpm | ||
| Voltage regulator | IC regulator built-in type | ||
| Regulator setting voltage | External mode | ECU control | |
| Internal mode | 14.55 ± 0.3V | ||
| Temperature compensation | External mode | ECU control | |
| Internal mode | -3.5 ± 2mV/°C | ||

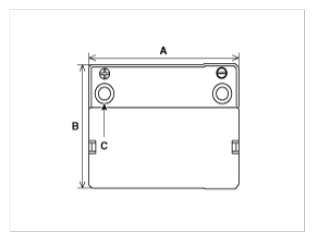

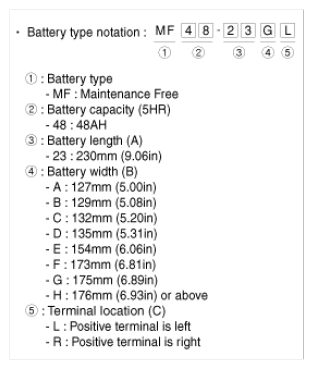

| Battery | Type | 36-20GL | |
| Cold cranking amperage [at -18°C (-0.4°F)] | 410 A | ||
| Reserve capacity | 80 min | ||
| Specific gravity [at 25°C (77°F)] | 1.280 ± 0.01 | ||
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
