Repair procedures: Removal

  1. Remove the under cover.
  2. Disconnect the input shaft speed sensor connector (A).

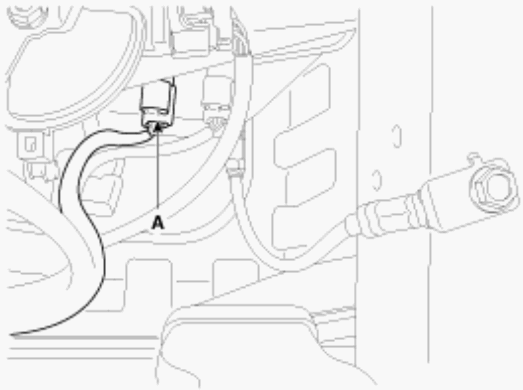

    Fig 1: Identifying Input Shaft Speed Sensor Connector
    G08812072Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the mounting bolt and then remove the input shaft speed sensor (B).

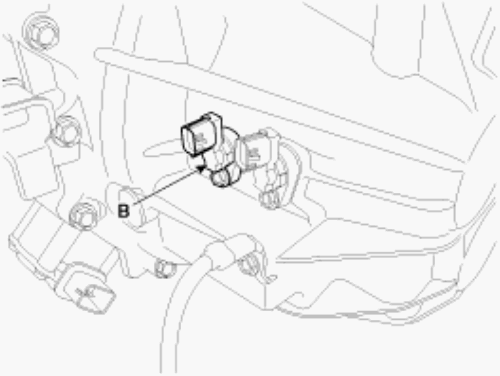

    Fig 2: Identifying Input Shaft Speed Sensor
    G08812073Courtesy of HYUNDAI MOTOR AMERICA
