ESC Module Connector End View

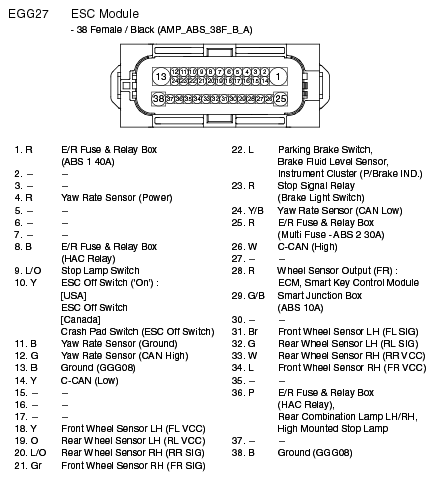

Fig 1: ESC Module Connector End View (EGG27)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
