Driver Power Window Switch

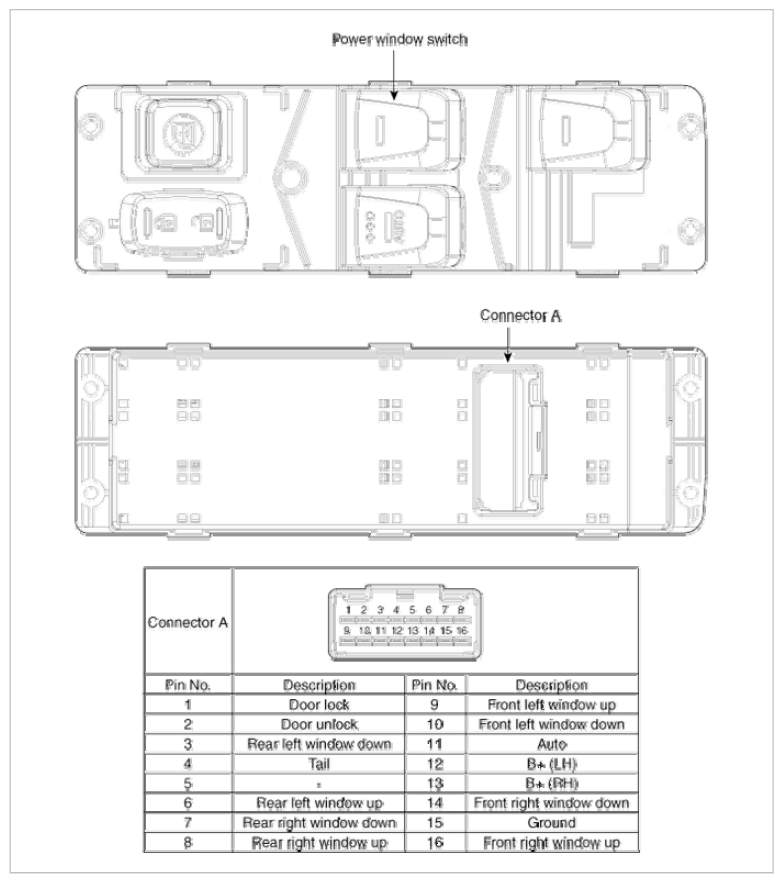

Fig 1: Driver Power Window Switch Schematic
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
