Components Location: [RHD]

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

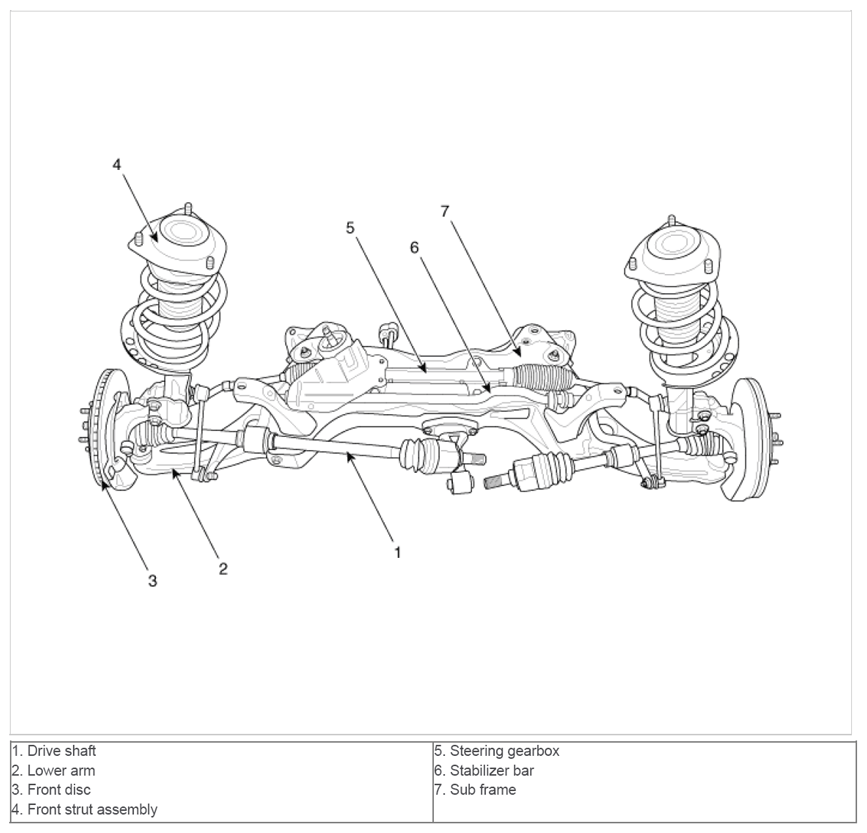

Fig 1: Identifying Front Suspension System Related Components (RHD)
G09135047Courtesy of HYUNDAI MOTOR AMERICA
