Rear Wheel Alignment: Toe

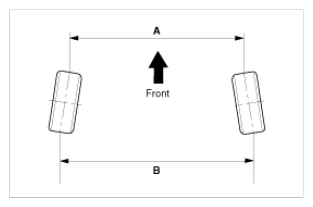

Fig 1: Identifying Rear Wheel Toe In And Out

Courtesy of HYUNDAI MOTOR AMERICA

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)

Toe is pre-set at the factory, so it does not need to be adjusted. If the toe is not within the standard value, replace or repair the damaged parts and then inspect again.

Toe:

Total: 0.5°(+0.5°/-0.4°)

Individual: 0.25°(+0.25°/-0.2°)

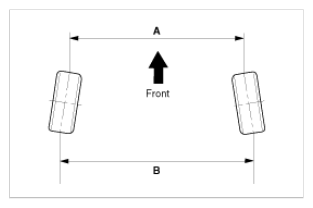

Fig 1: Identifying Rear Wheel Toe In And Out

Courtesy of HYUNDAI MOTOR AMERICA

B - A > 0: Toe in (+)

B - A < 0: Toe out (-)

Toe is pre-set at the factory, so it does not need to be adjusted. If the toe is not within the standard value, replace or repair the damaged parts and then inspect again.

Toe:

Total: 0.5°(+0.5°/-0.4°)

Individual: 0.25°(+0.25°/-0.2°)
