Circuit Diagram

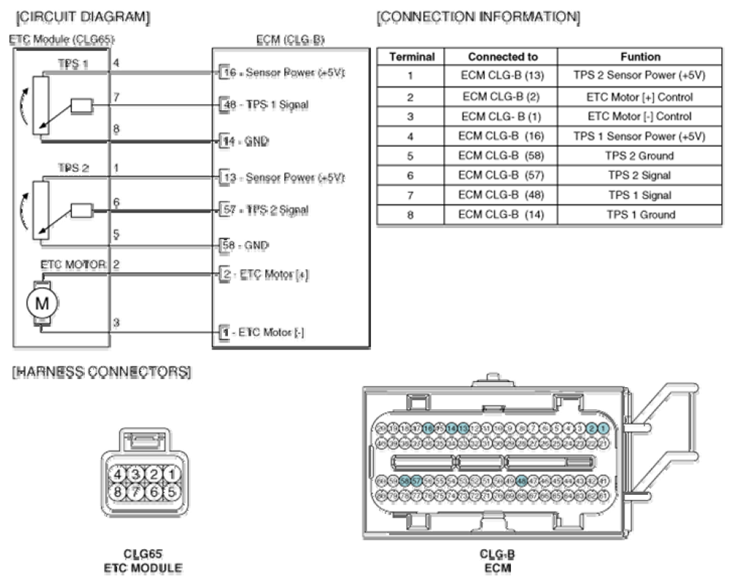

Fig 1: Electronic Throttle System - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
