Specification Of Bolts

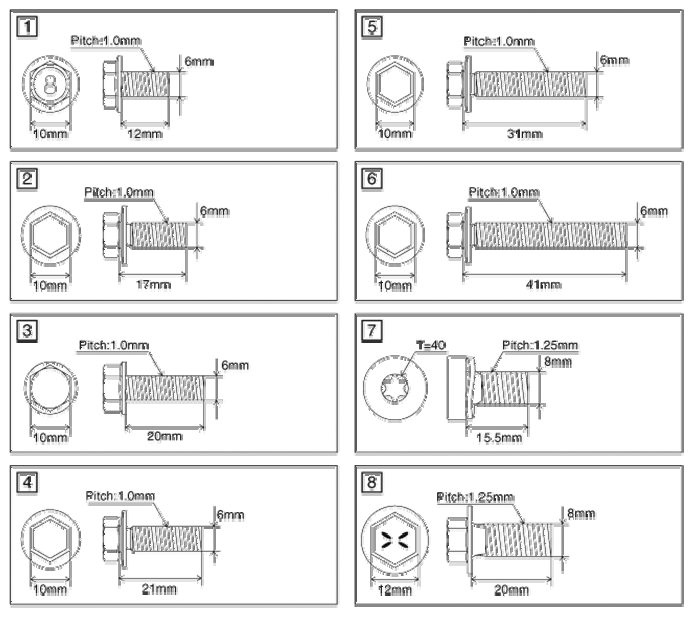

Fig 1: Bolts Specification Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
