Repair procedures (F21): Removal

  1. Disconnect the (-) terminal from the battery.
  2. Remove the air cleaner assembly.
  3. Remove the turbocharger tube. (diesel engine only)
  4. Remove the shift cable (A), the manual lever (B), and the connector (C).

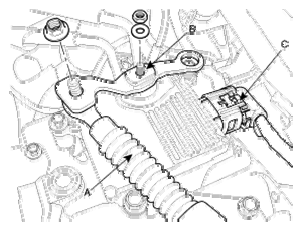

    Fig 1: Identifying Shift Cable, Manual Lever, And Connector
    G06857081Courtesy of HYUNDAI MOTOR CO.
  5. Remove the 3 bolts to remove the TCU (A).

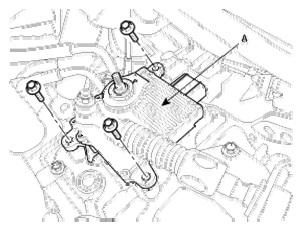

    Fig 2: Identifying TCU
    G06857082Courtesy of HYUNDAI MOTOR CO.
