Front Power Window Motor Inspection: Notes

  1. Remove the front door trim panel.

    (Refer to the "FRONT DOOR ")

  2. Disconnect the connector from the motor.

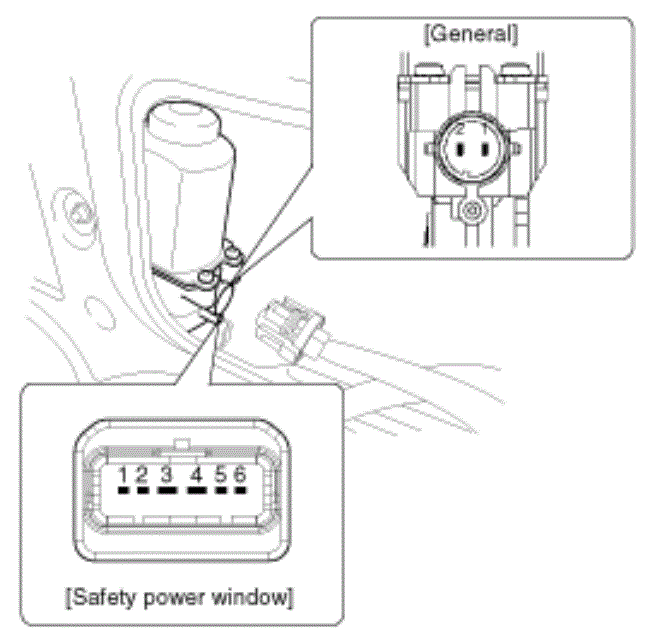

    Fig 1: Identifying Motor Connector Terminals
    G08803382Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the motor terminals No. 4 directly to battery voltage (12V) and connect the motor terminals No. 3 and No. 6 directly to battery (-). And then check that the motor operates smoothly. If the operation is abnormal, replace the motor.
