Fuel Injector Control Module: Diagrams





IDB terminal and Inoutput

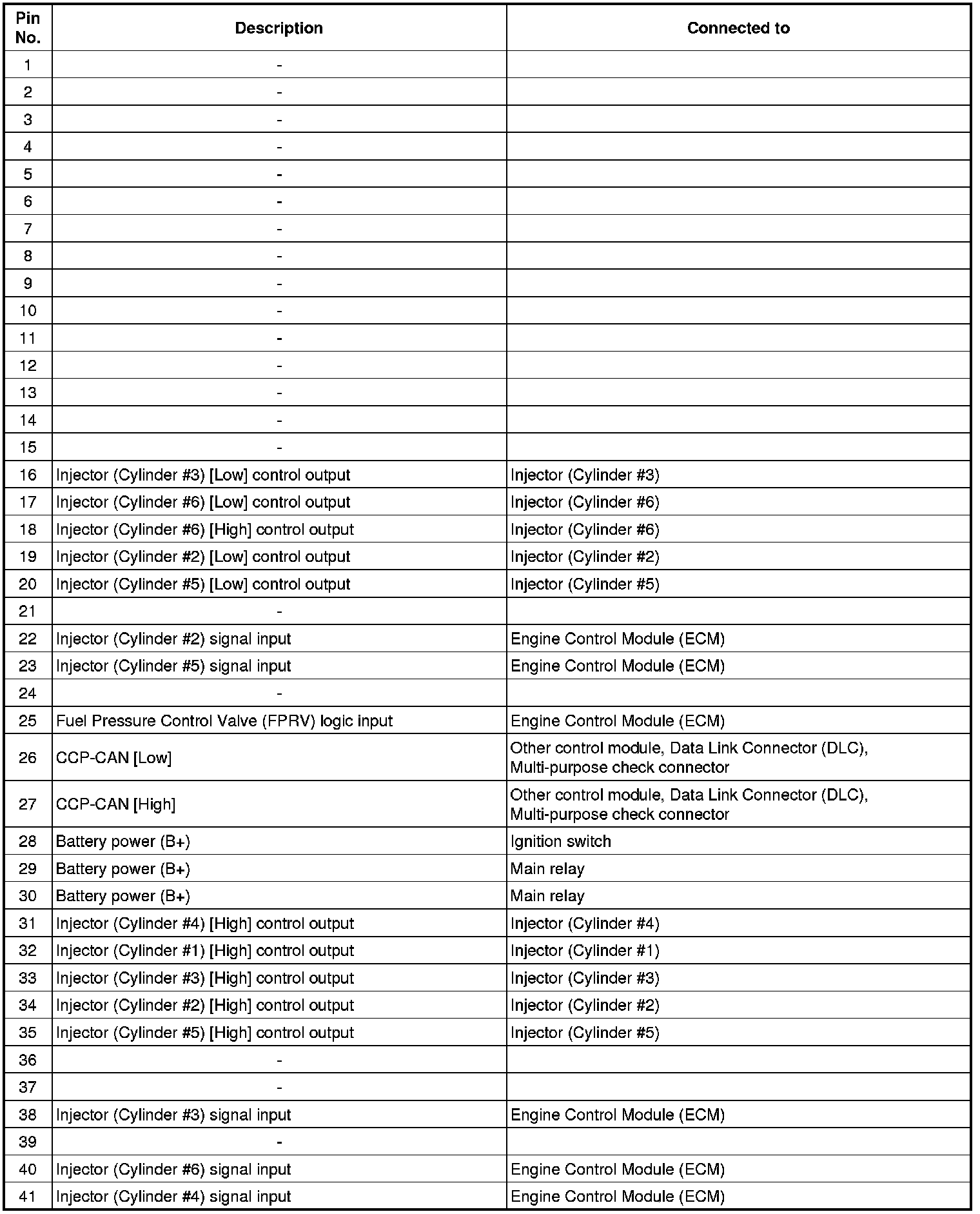

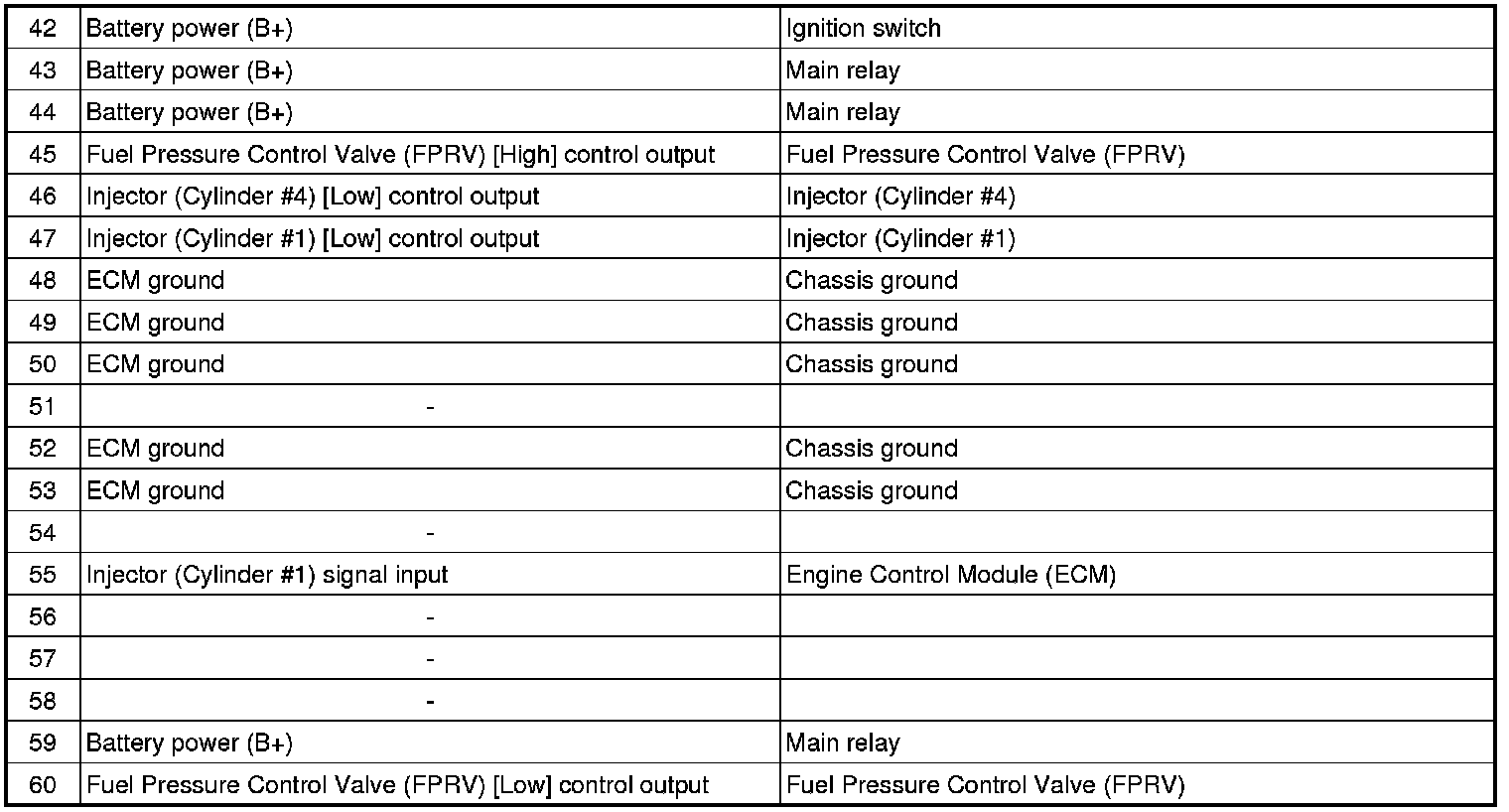

IDB terminal function
Connector [CLG02]

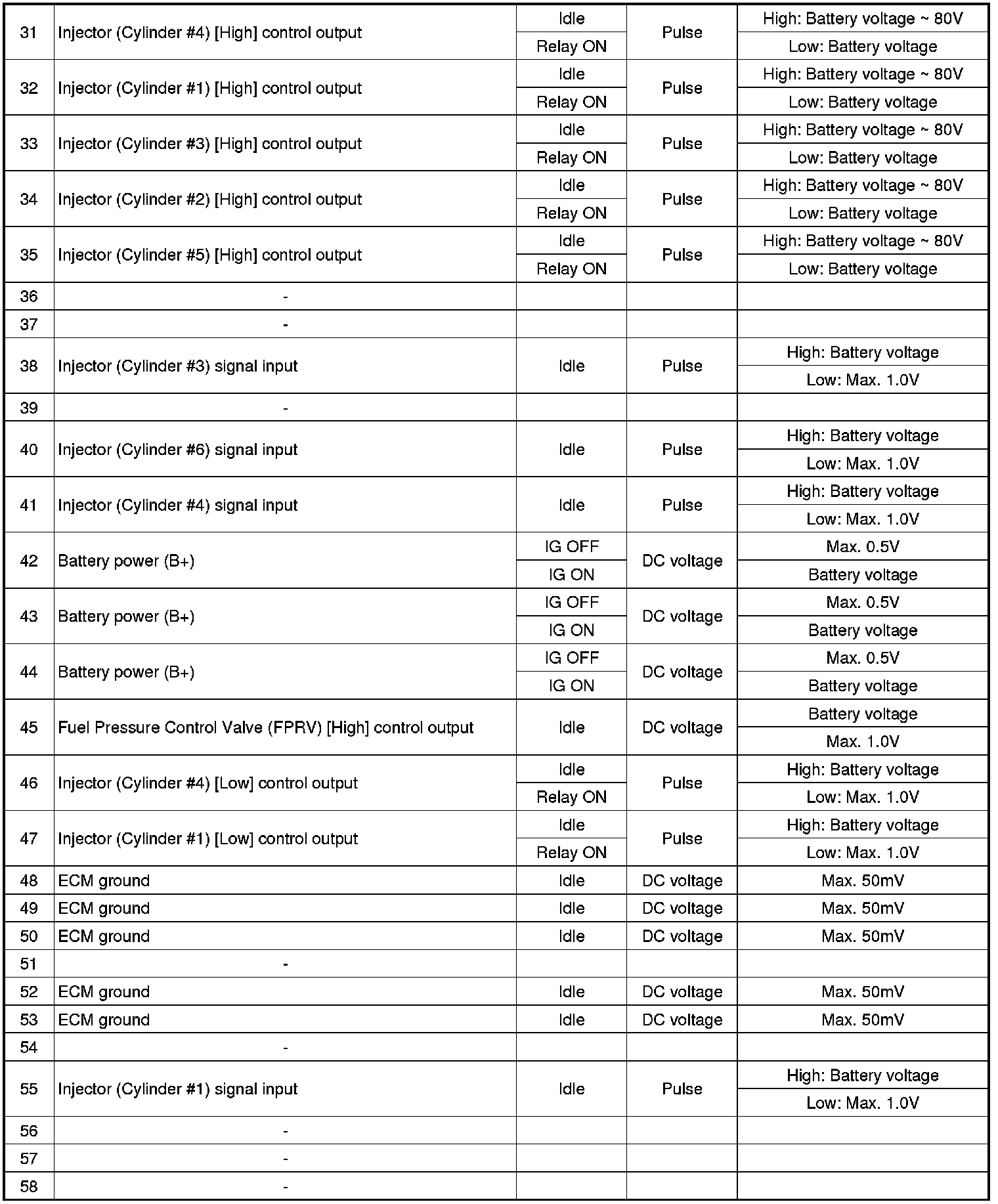

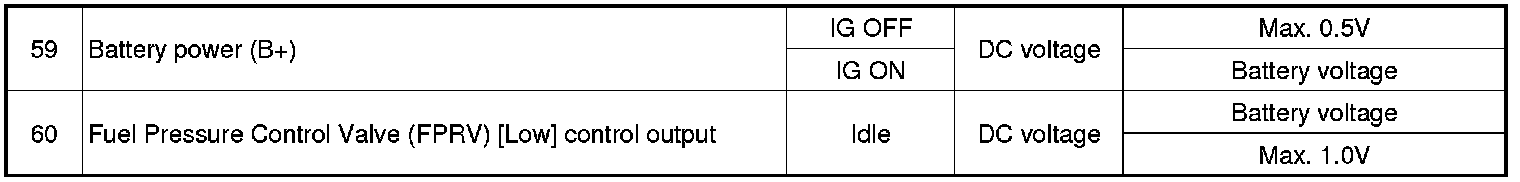

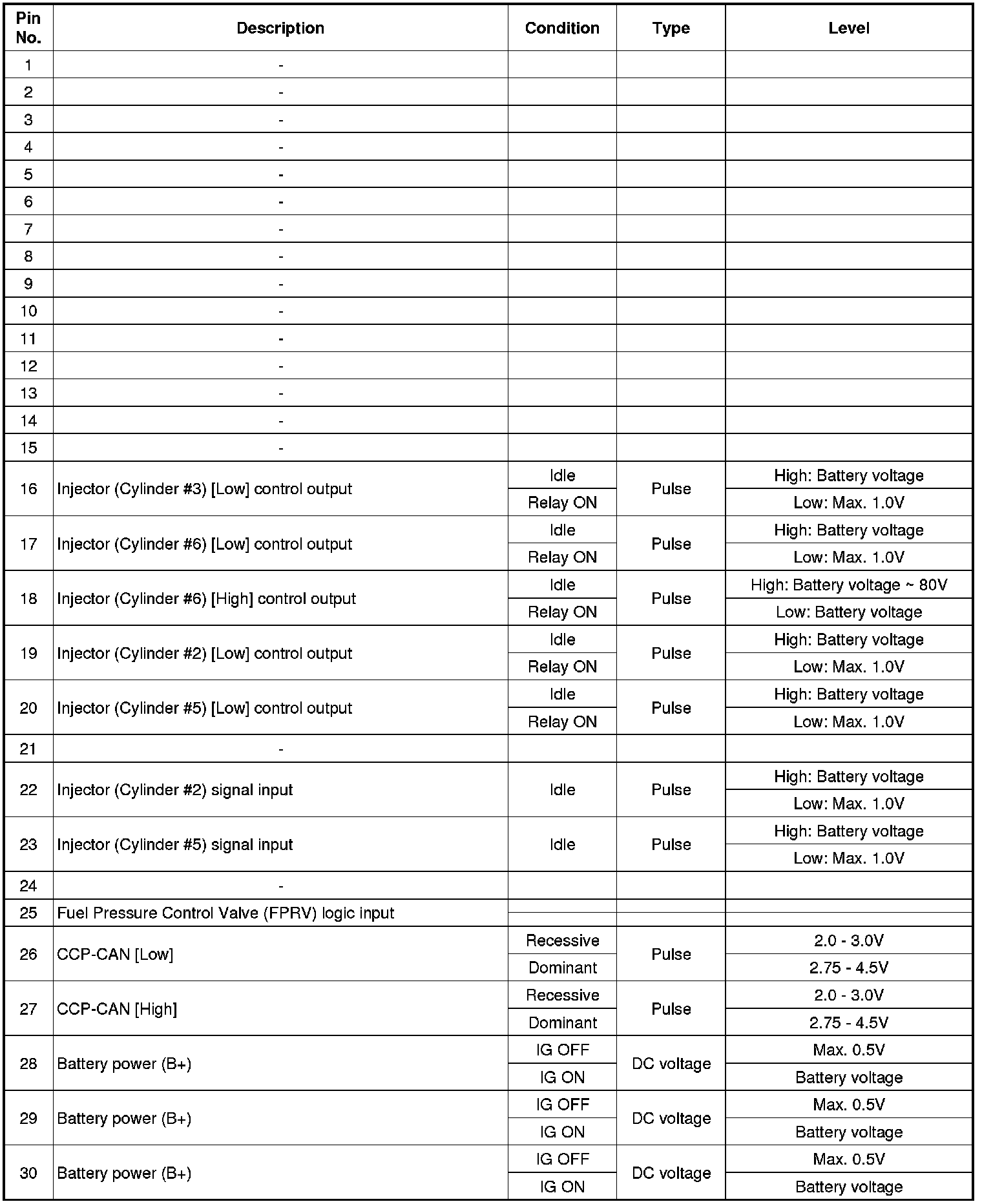

IDB Terminal input/output signal
Connector [CLG02]














Circuit Diagram
