Repair Procedures: Removal

Remove the driver airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening the screws.

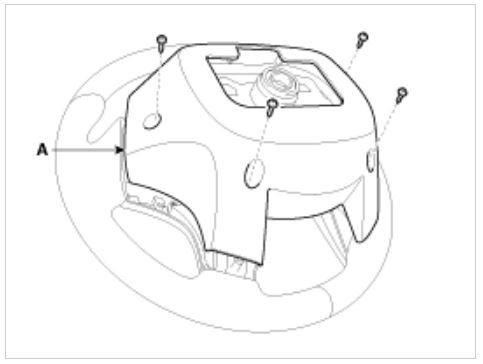

Fig 1: Identifying Steering Wheel Cover And Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering wheel remote control switch connector (A).
[LH - AVN/Handsfree]

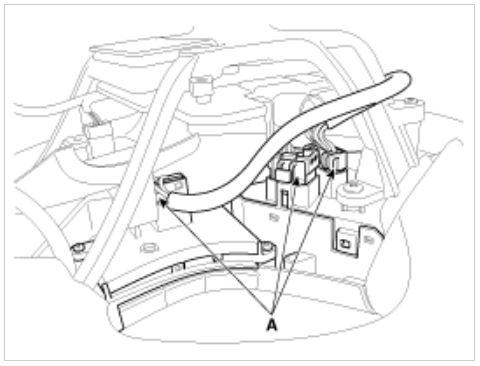

Fig 2: Identifying Steering Wheel Remote Control Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

[RH - Cruise]

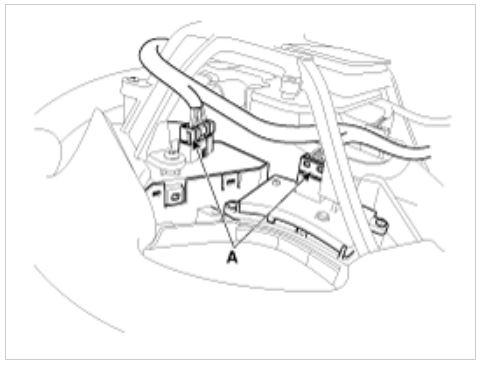

Fig 3: Identifying Steering Wheel Remote Control Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering wheel remote control switch (A) after loosening the mounting screws.

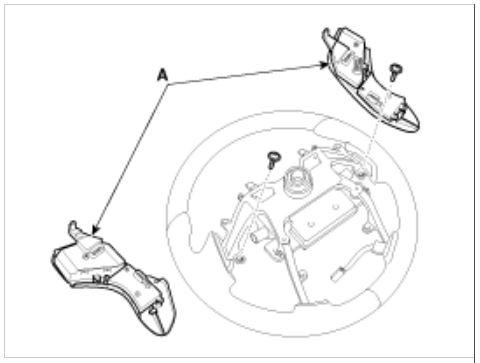

Fig 4: Identifying Steering Wheel Remote Control Switch
Courtesy of HYUNDAI MOTOR AMERICA

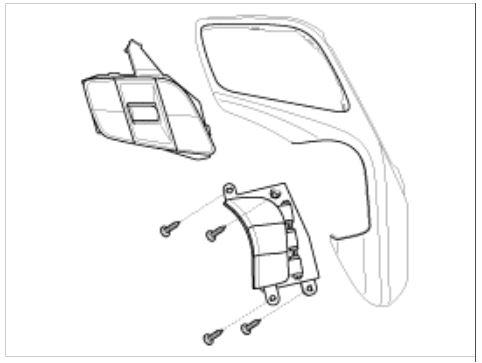

Fig 5: Identifying Steering Wheel Remote Control Switch Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
