Components and Components Location: Components

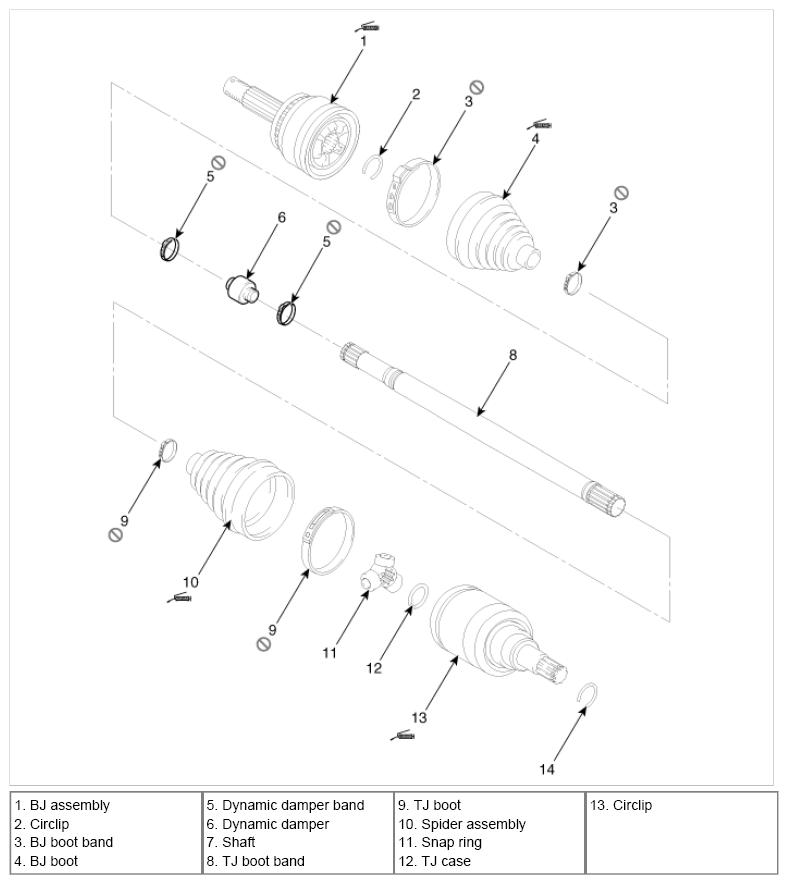

Fig 1: Identifying Dynamic Damper Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
