Home >> Hyundai >> 2013 >> Azera >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Front Driveshaft >> Components and Components Location >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Components and Components Location: Components

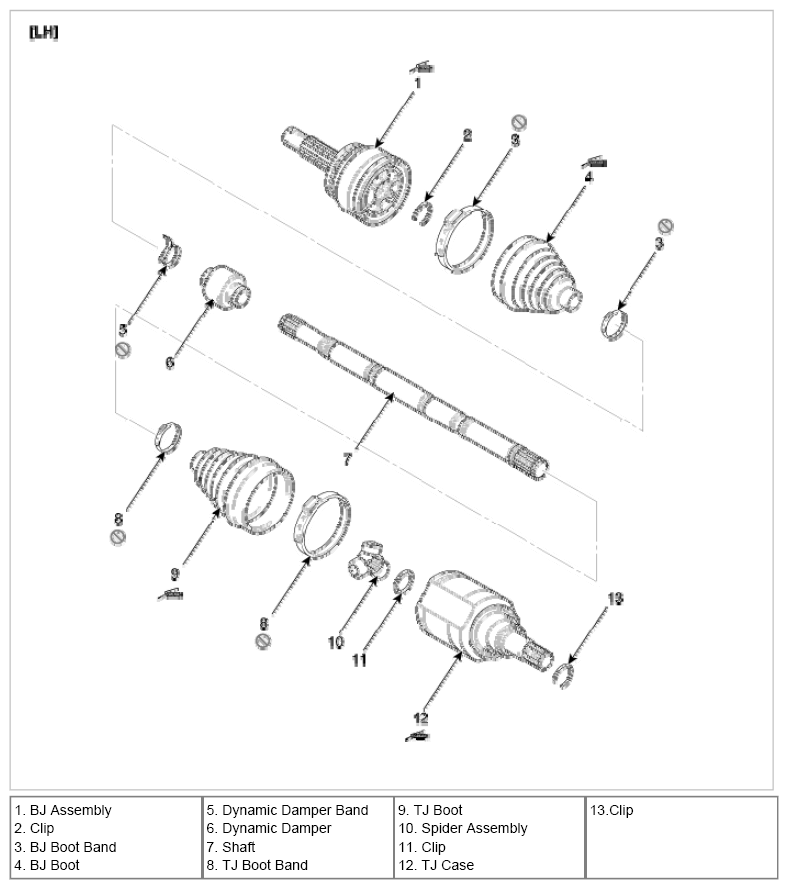

Fig 1: Identifying Driveshaft Components (LH)
G08810016Courtesy of HYUNDAI MOTOR AMERICA

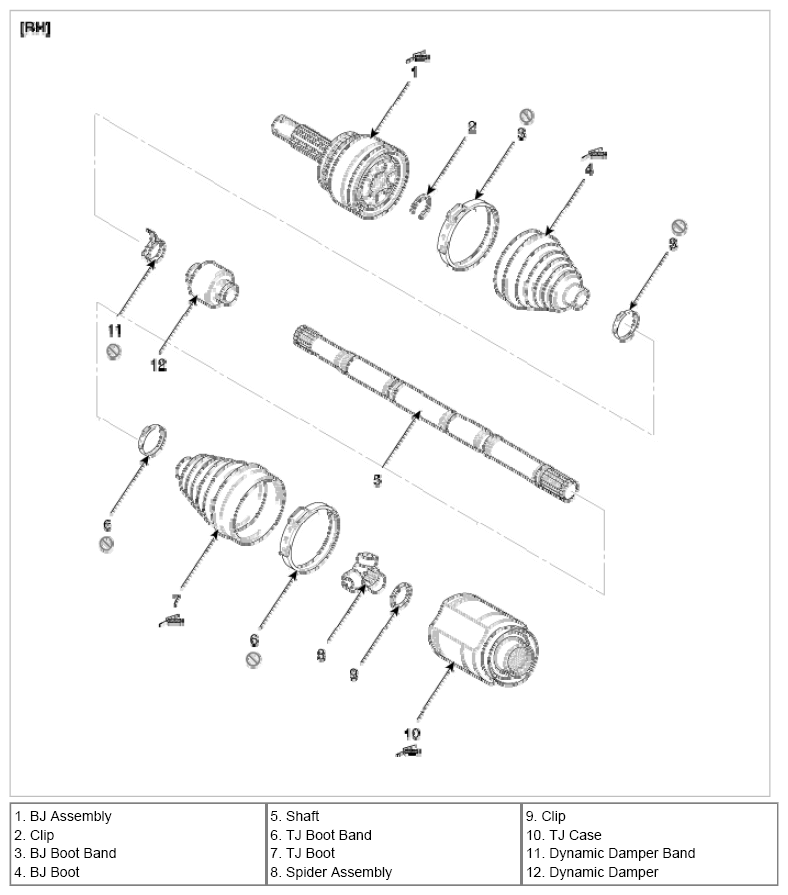

Fig 2: Identifying Driveshaft Components (RH)
G08810017Courtesy of HYUNDAI MOTOR AMERICA
