Automatic Transaxle: Installation

Install in the reverse order of removal.
NOTE: Follow each procedure below according to reinstallation or replacing with a new automatic transaxle.
In case of the reinstallation.
1. Replace the oil seal with a new one when ATF leak occurred because of differential oil seal damage.
  Information

  When installing the new oil seal, use the special service tool (SST No.: 09452-26100, 09231-H1100).
2. Check the ATF level after refilling the automatic transaxle with fluid. (Refer to "FLUID ")
3. Clear the diagnostic trouble codes (DTC) using the GDS.
  Information

  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
In case of the replacing with a new automatic transaxle.
NOTE: New automatic transaxle is already filled with specified quantity ATF.
For that reason, it does not necessary to refill and check the ATF but the remaining ATF inside of ATF cooler have to be removed.
1. Set the air blow gun in front of the ATF cooler hose (A).
2. Remove the remaining ATF by blowing air into ATF cooler hose (A).
3. Install the ATF cooler hose (A) and (B).

  Fig 1: ATF Cooler Hoses
  Courtesy of HYUNDAI MOTOR AMERICA
4. Clear the diagnostic trouble codes (DTC) using the GDS.
  Information

  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
5. Reset the automatic transaxle adaptive values using the GDS.

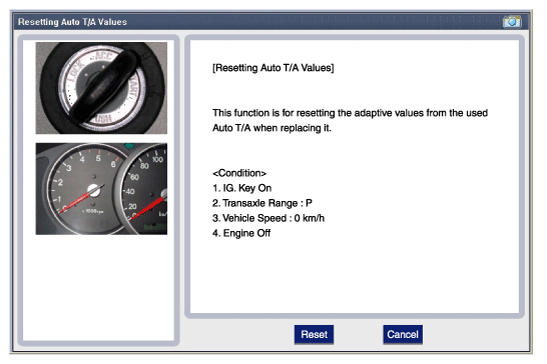

  Fig 2: Display - Resetting Automatic Transaxle Adaptive Values Screen
  Courtesy of HYUNDAI MOTOR AMERICA
6. Perform the TCM adaptive values learning procedure.
  (Refer to TCM LEARNING PROCEDURE )
In case of the replacing with a remanufactured automatic transaxle.
NOTE: Remanufactured automatic transaxle is not filled with specified quantity ATF.
For that reason, it is necessary to refill and check the ATF.
1. Check the ATF level after refilling the automatic transaxle with fluid. (Refer to "FLUID ")
2. Clear the diagnostic trouble codes (DTC) using the GDS.
  Information

  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
3. Reset the automatic transaxle adaptive values using the GDS.

  Fig 3: Display - Resetting Automatic Transaxle Adaptive Values Screen
  Courtesy of HYUNDAI MOTOR AMERICA
4. Perform the TCM adaptive values learning procedure.
  (Refer to TCM LEARNING PROCEDURE )
