Inspection flow

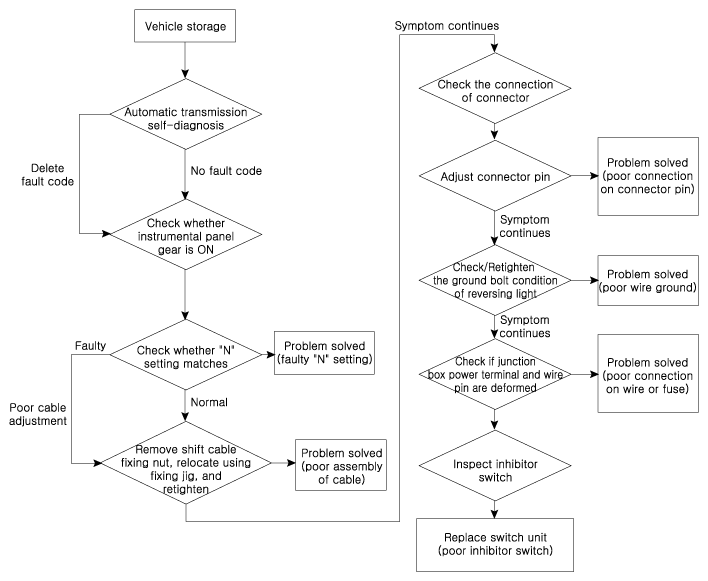

Fig 1: Automatic Transaxle System Inspection Flow Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
