Home >> Hyundai >> 2013 >> Equus V8-5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Body Control Module

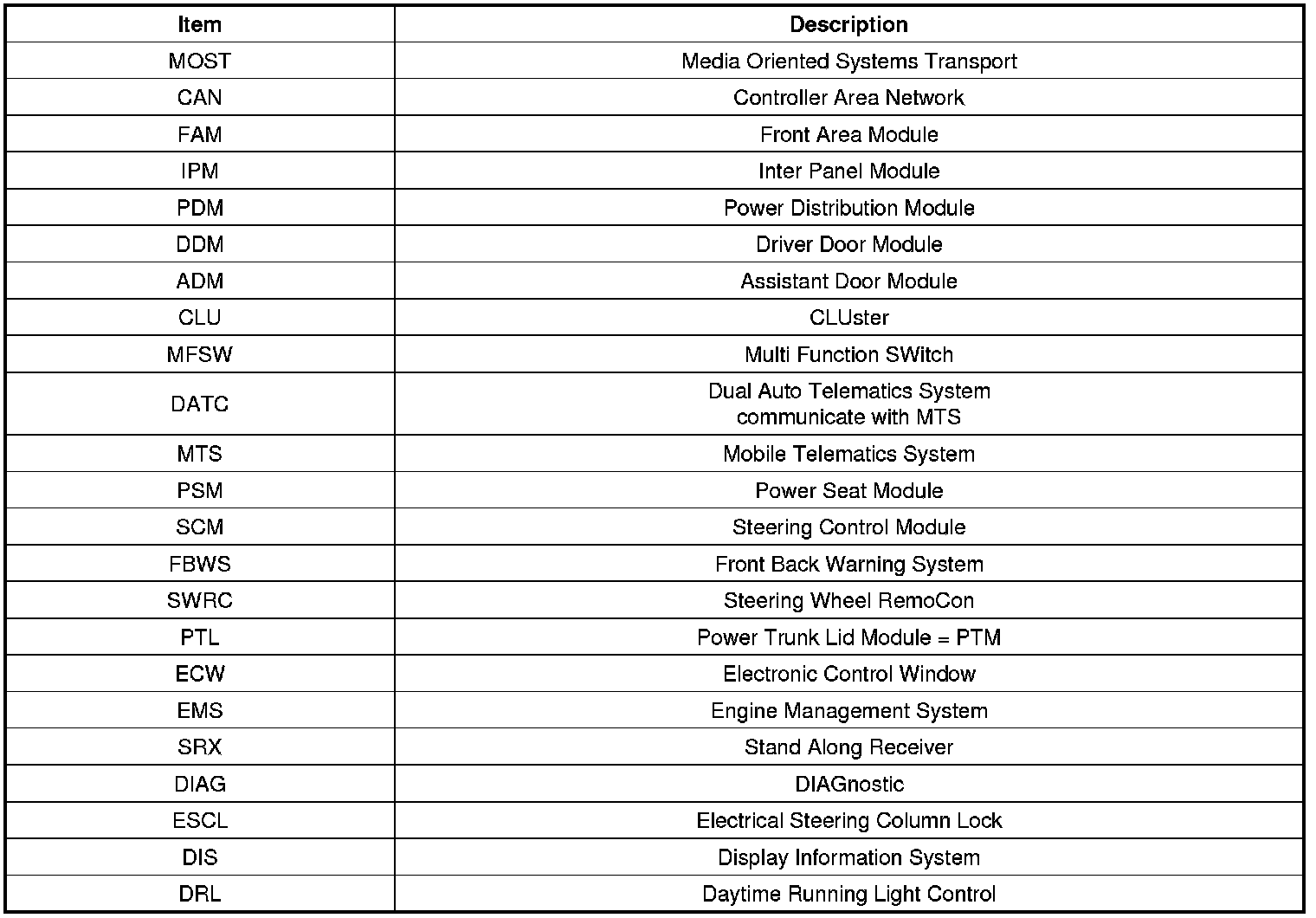

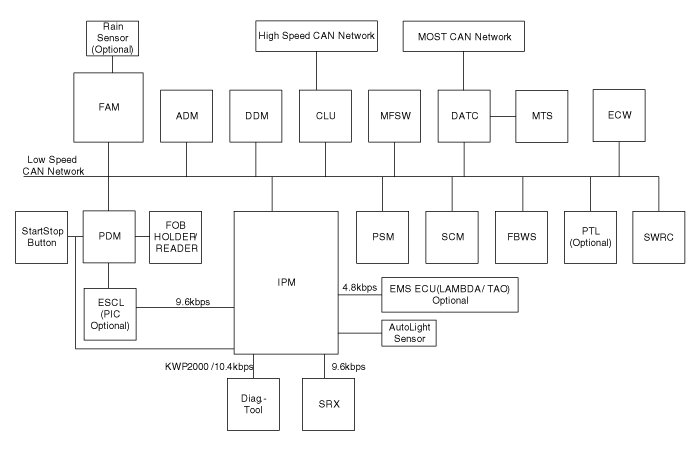

Schematic Diagrams
