Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the cover.
  3. Disconnect the ECM connector (A) and TCM connector (B).
  4. Remove the ECM & TCM bracket installation bolts (C) and nut (D.

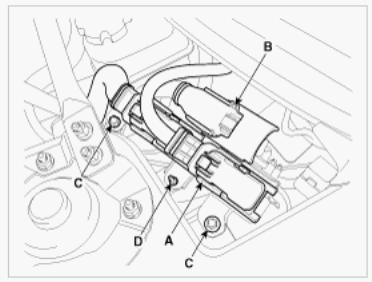

    Fig 1: Identifying TCM & ECM Connector Components (3.8L)
    G00540585Courtesy of HYUNDAI MOTOR AMERICA

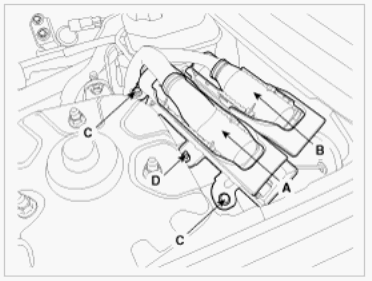

    Fig 2: Identifying TCM & ECM Connector Components (2.0L)
    G00540596Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the TCM from bracket after removing the installation bolts (A).
    Fig 3: Identifying TCM And Mounting Bolts (3.8L)
    G00540586Courtesy of HYUNDAI MOTOR AMERICA

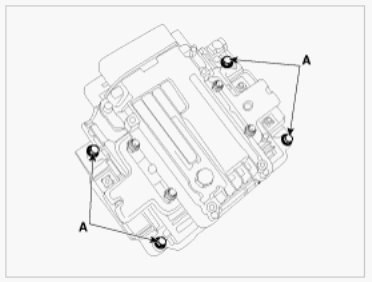

    Fig 4: Identifying TCM And Mounting Bolts (2.0L)
    G00540597Courtesy of HYUNDAI MOTOR AMERICA
