Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the fuel pump resister connector.
  3. Remove the fuel pump resister (A) after removing the installation bolts (B).

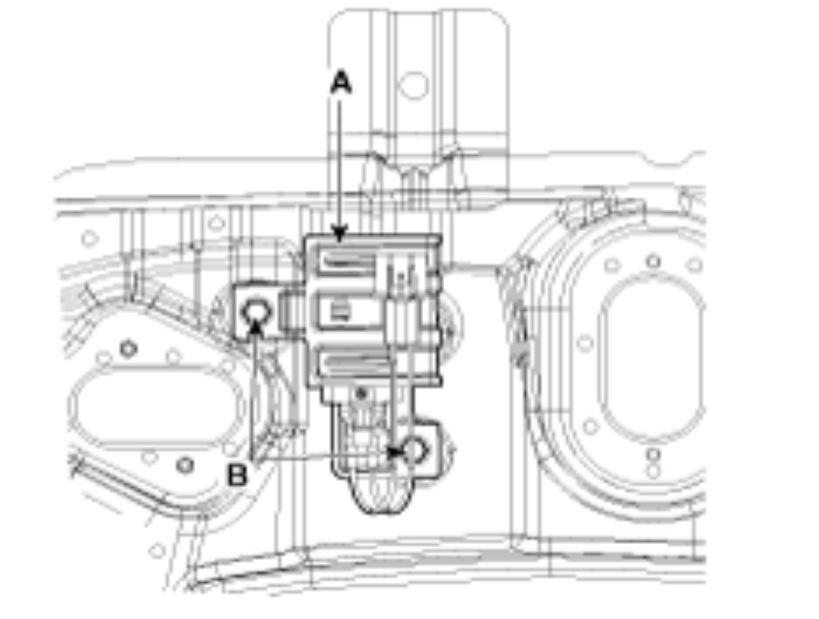

    Fig 1: Identifying Fuel Pump Resister & Installation Bolts
    G00540703Courtesy of HYUNDAI MOTOR CO.
