Repair Procedures: Removal

  1. Turn the ignition switch off and disconnect the battery negative (-) cable.
  2. Disconnect the injector drive box (IDB) connector (A).

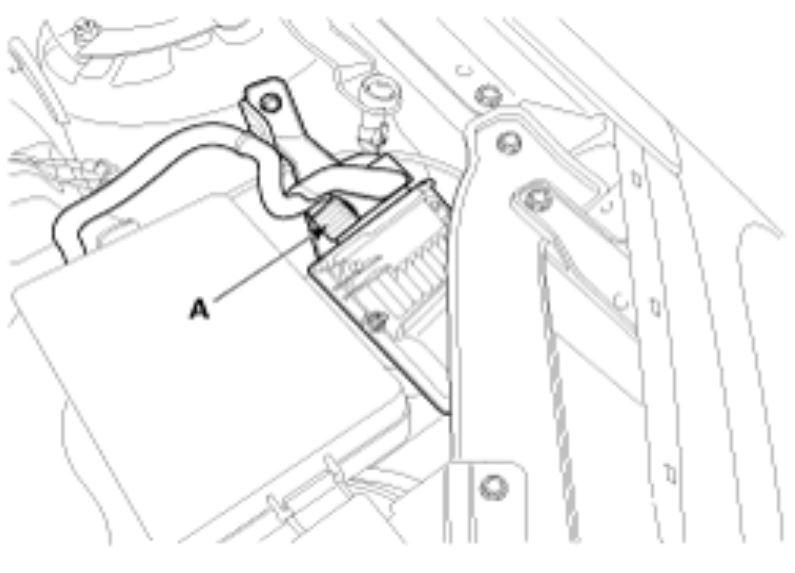

    Fig 1: Identifying Injector Drive Box (IDB) Connector
    G00540430Courtesy of HYUNDAI MOTOR CO.
  3. Remove the left side head lamp. (Refer to Head Lamps )
  4. Remove the IDB assembly after removing the bolts (A) and the nuts (B).

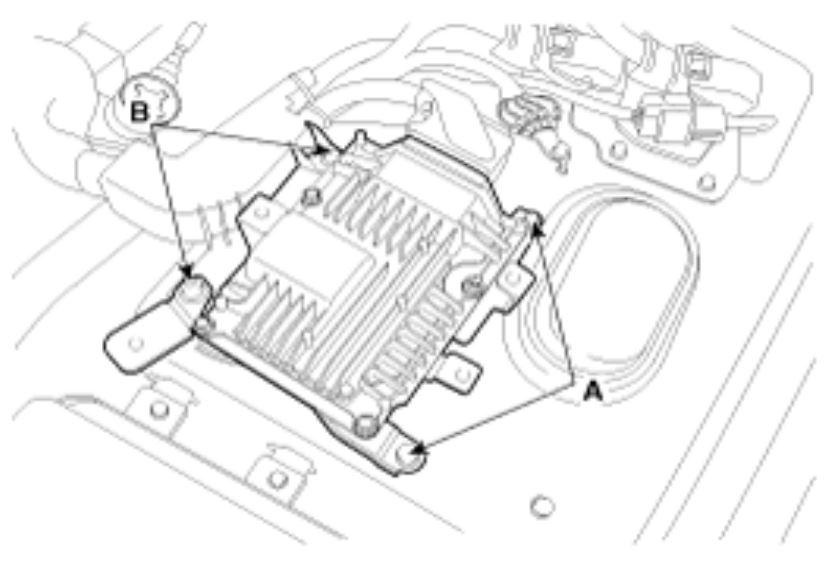

    Fig 2: Identifying IDB Assembly Bolts & Nuts
    G00540431Courtesy of HYUNDAI MOTOR CO.
