Fuel Injector Control Module: Diagrams





IDB terminal and Inoutput

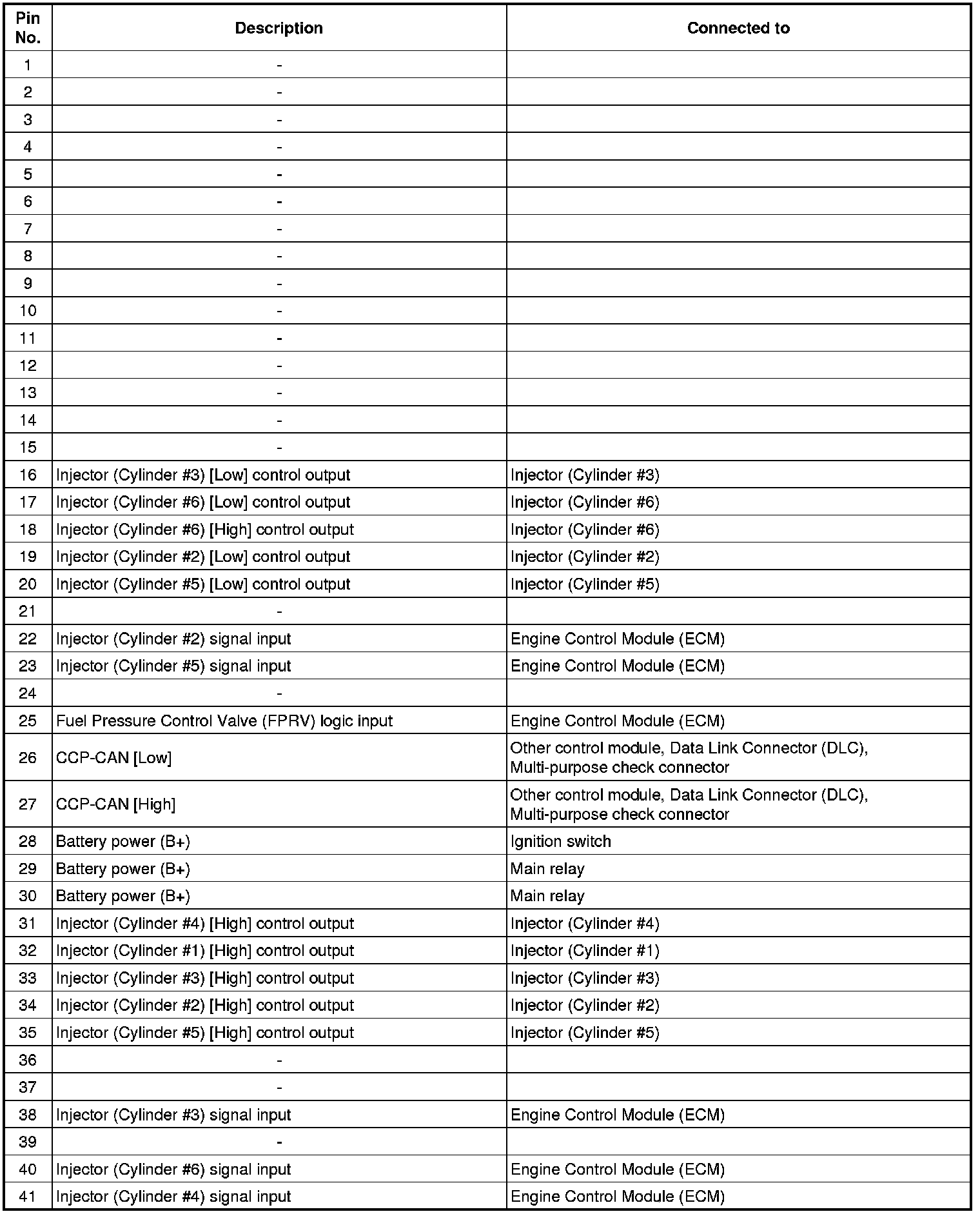

IDB terminal function
Connector [CLG-IDB]

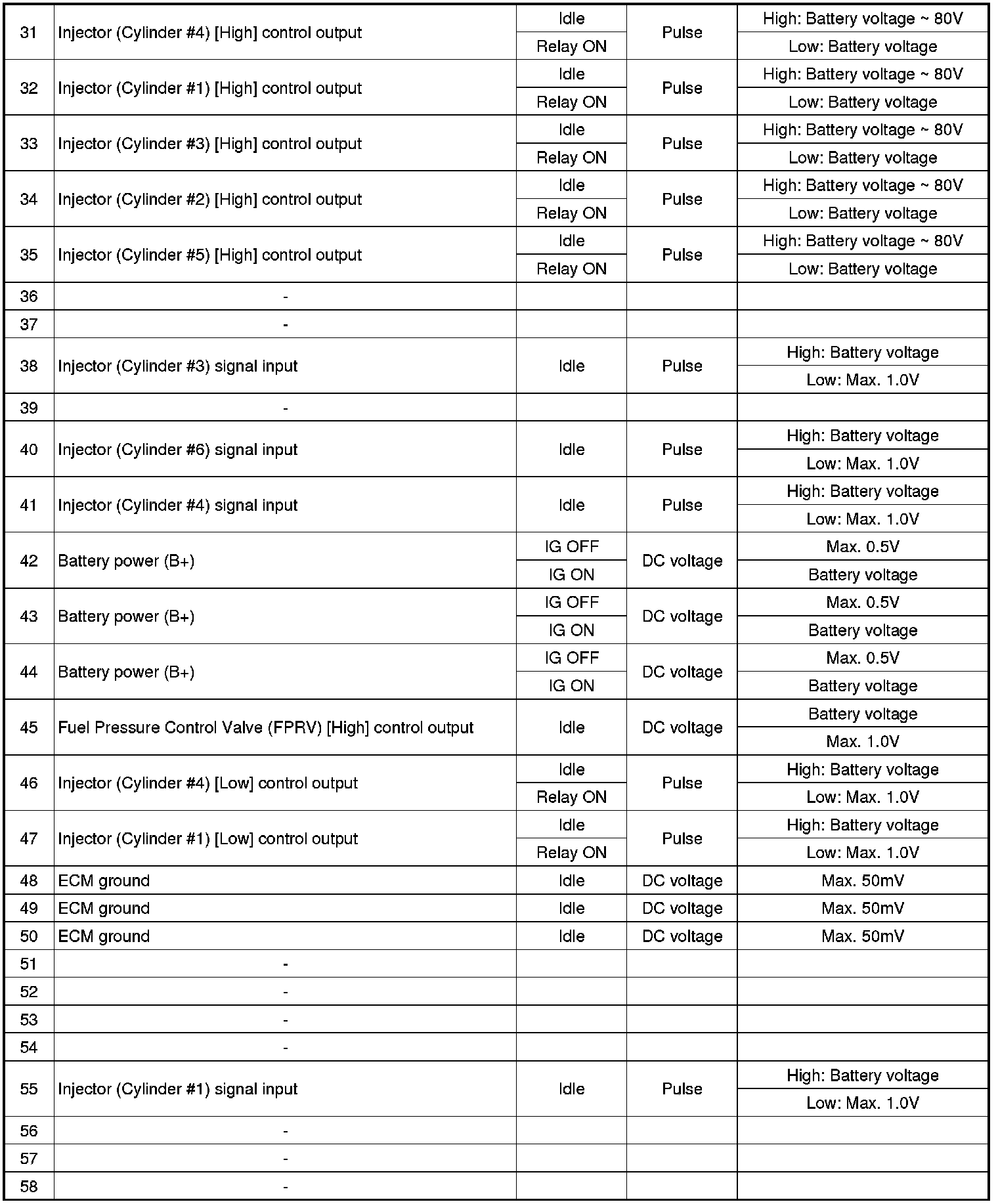

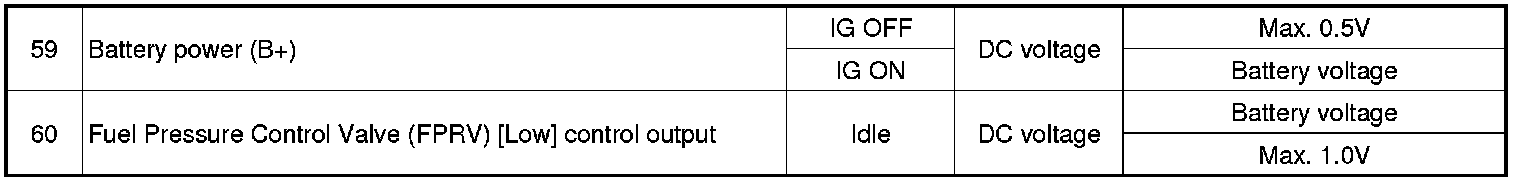

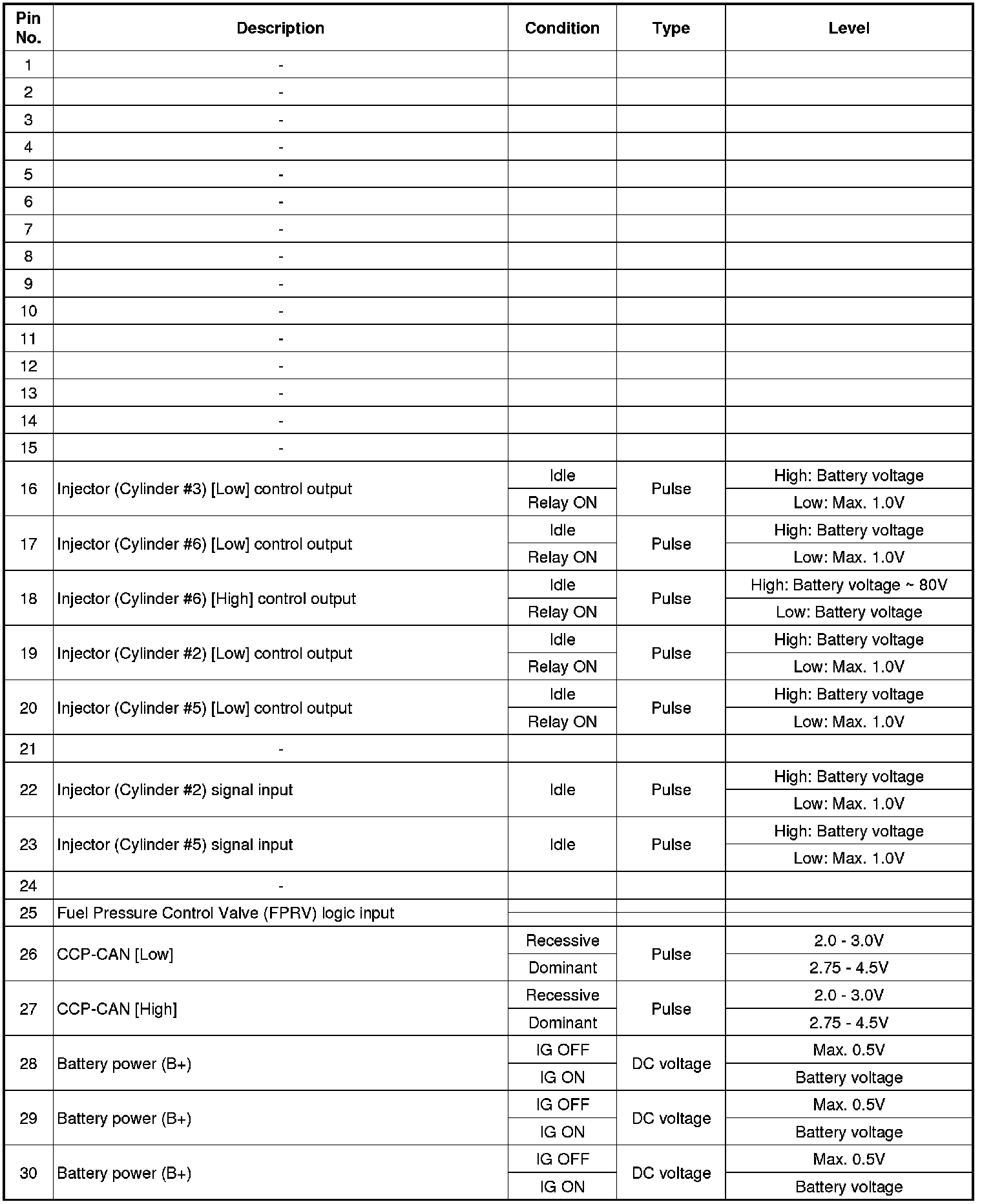

IDB Terminal input/output signal

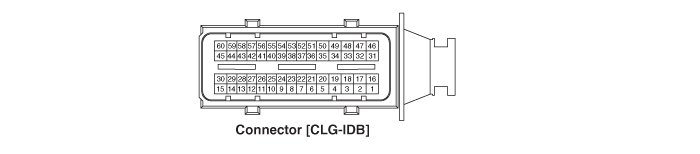

Connector [CLG-IDB]

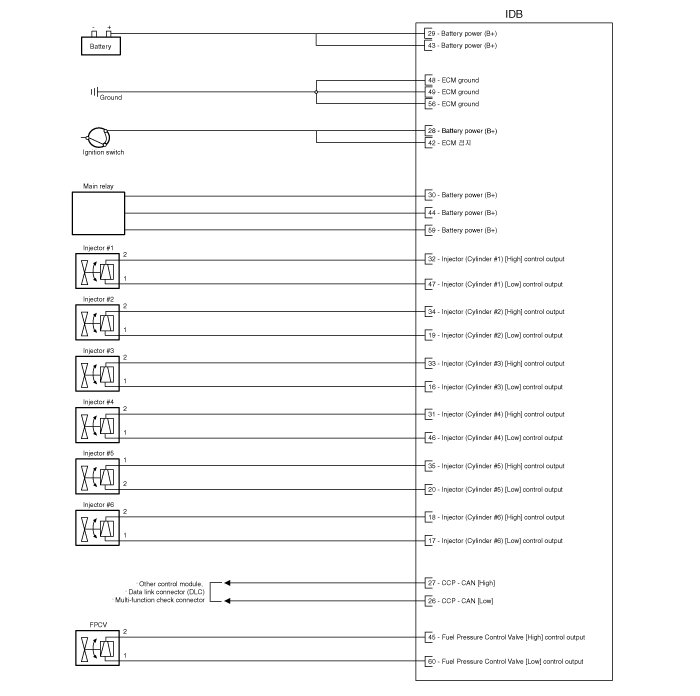

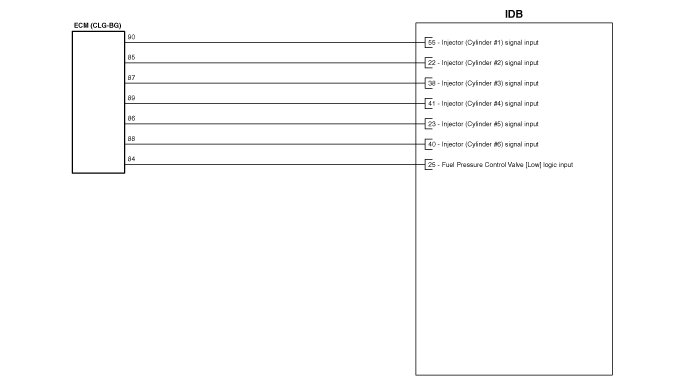

Circuit Diagram
