Bank 1/Intake

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the OTS(A).
  3. Disconnect the CVVT oil control valve connector (B).
  4. Remove the installation bolt (C), and then remove the valve from the engine.

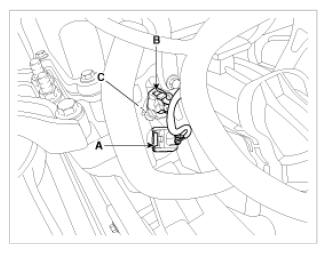

    Fig 1: Identifying CVVT Oil Control Valve Connector, OTS And Installation Bolt
    G09365061Courtesy of HYUNDAI MOTOR AMERICA
