Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the RCV control solenoid valve after disconnect the connector(A), bolt (B) and RCV hose (C).

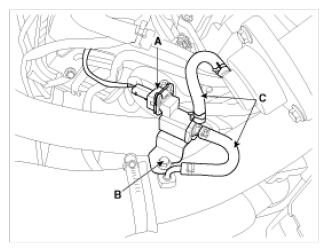

    Fig 1: Identifying RCV Hose, Connector And Bolt
    G09365080Courtesy of HYUNDAI MOTOR AMERICA
