Components Location

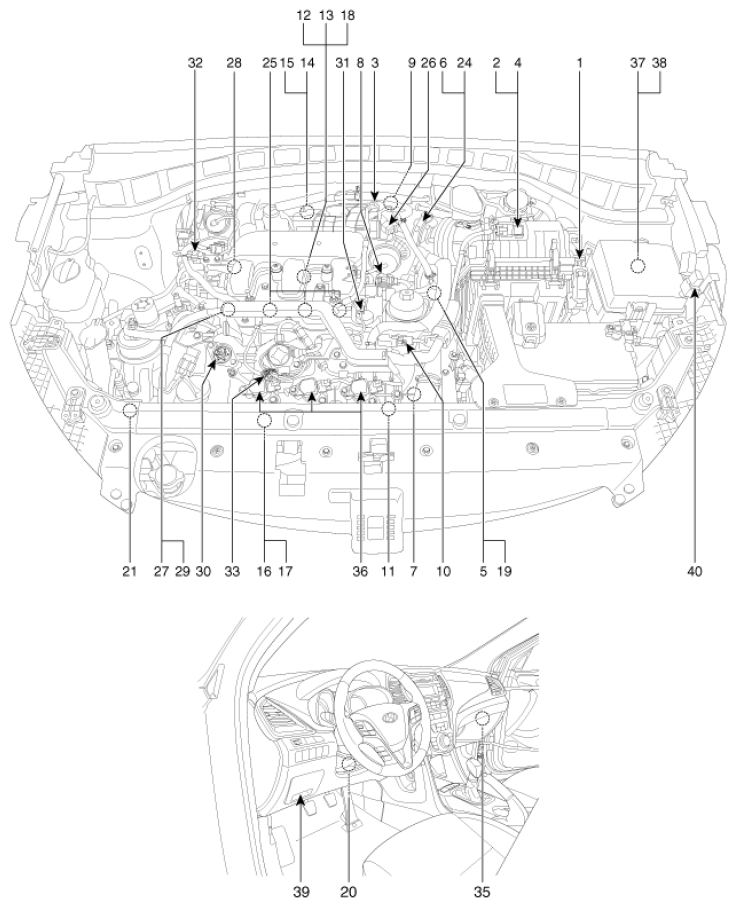

Fig 1: Engine Control/Fuel System Components Location (1 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

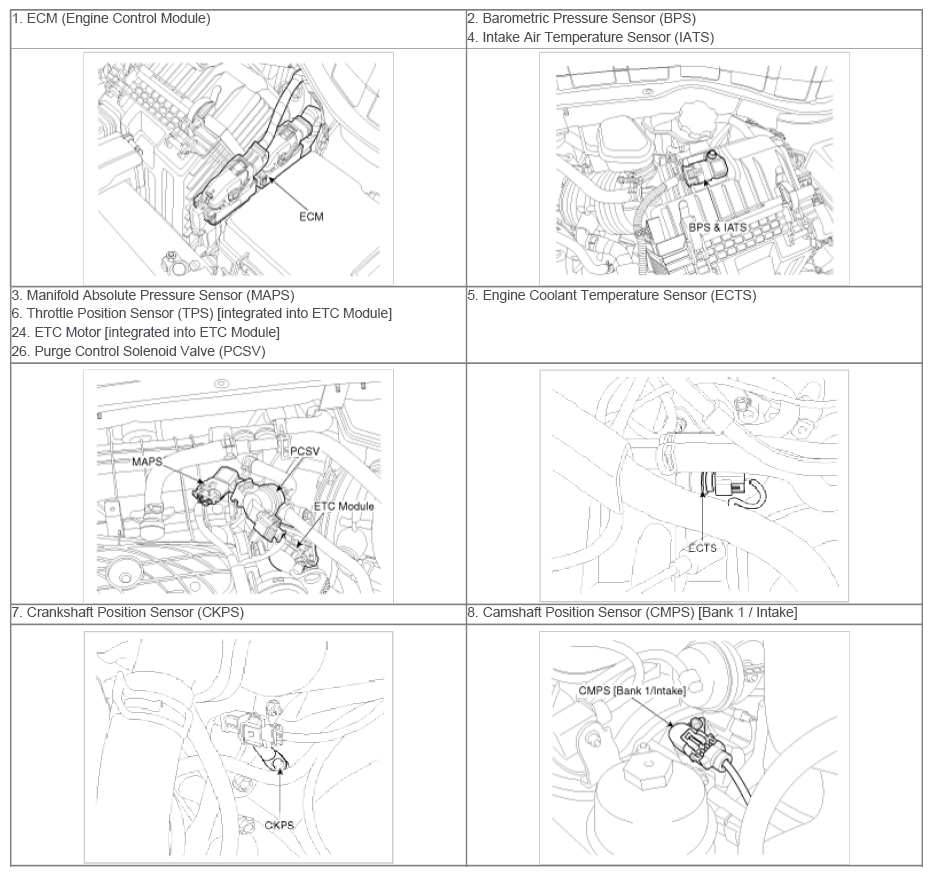

Fig 2: Engine Control/Fuel System Components Location (2 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

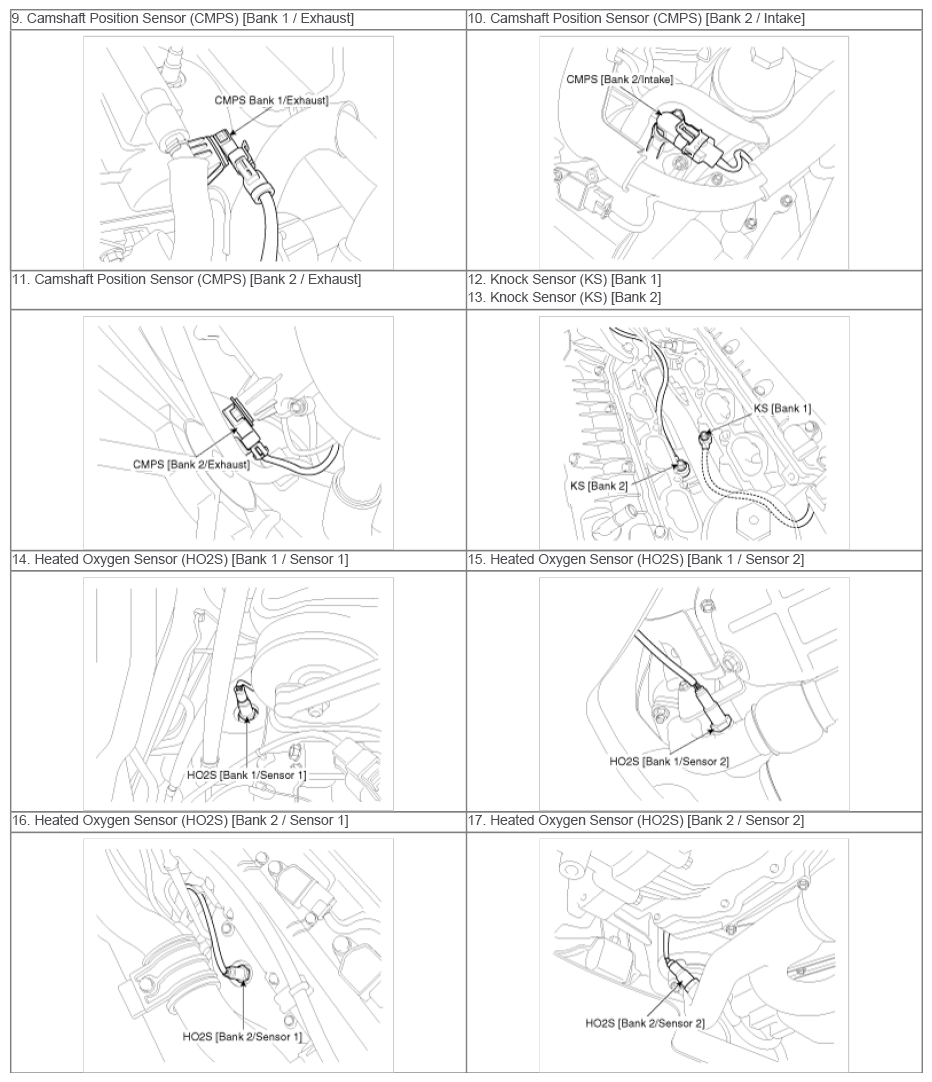

Fig 3: Engine Control/Fuel System Components Location (3 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

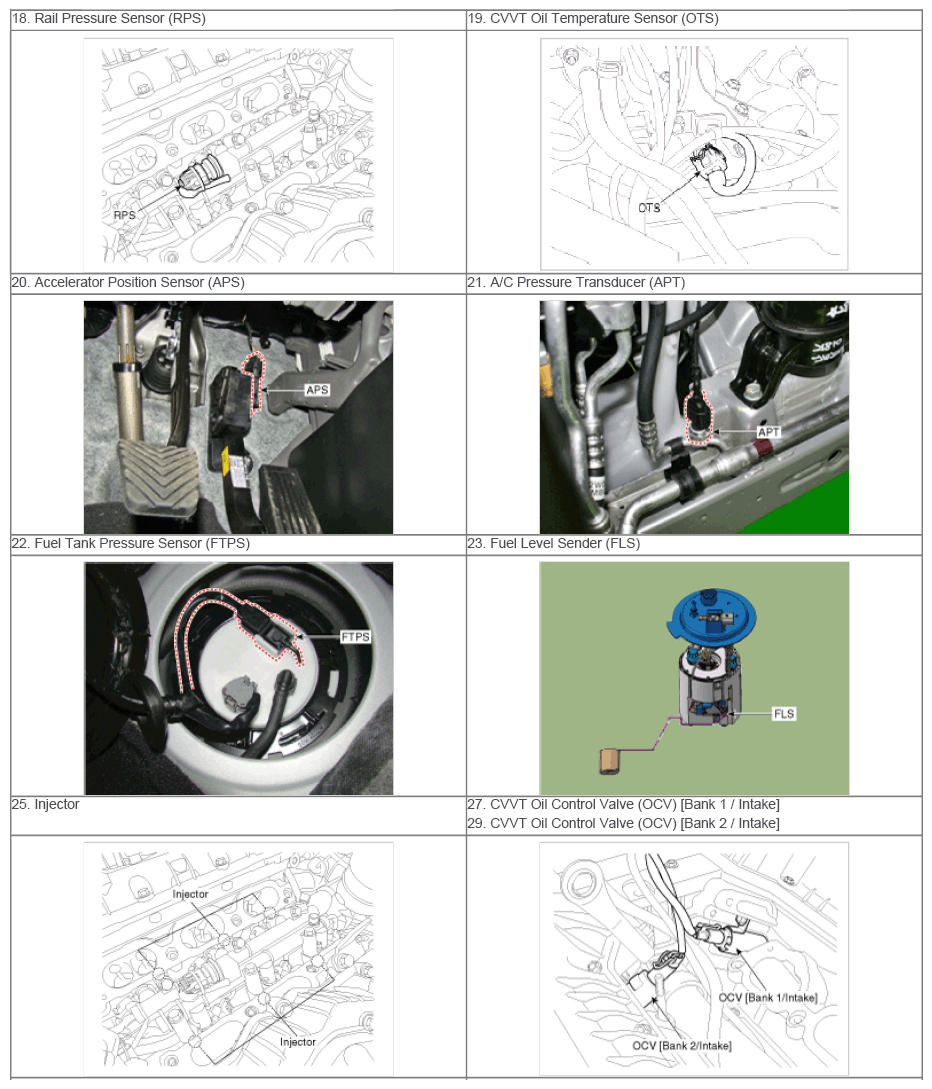

Fig 4: Engine Control/Fuel System Components Location (4 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

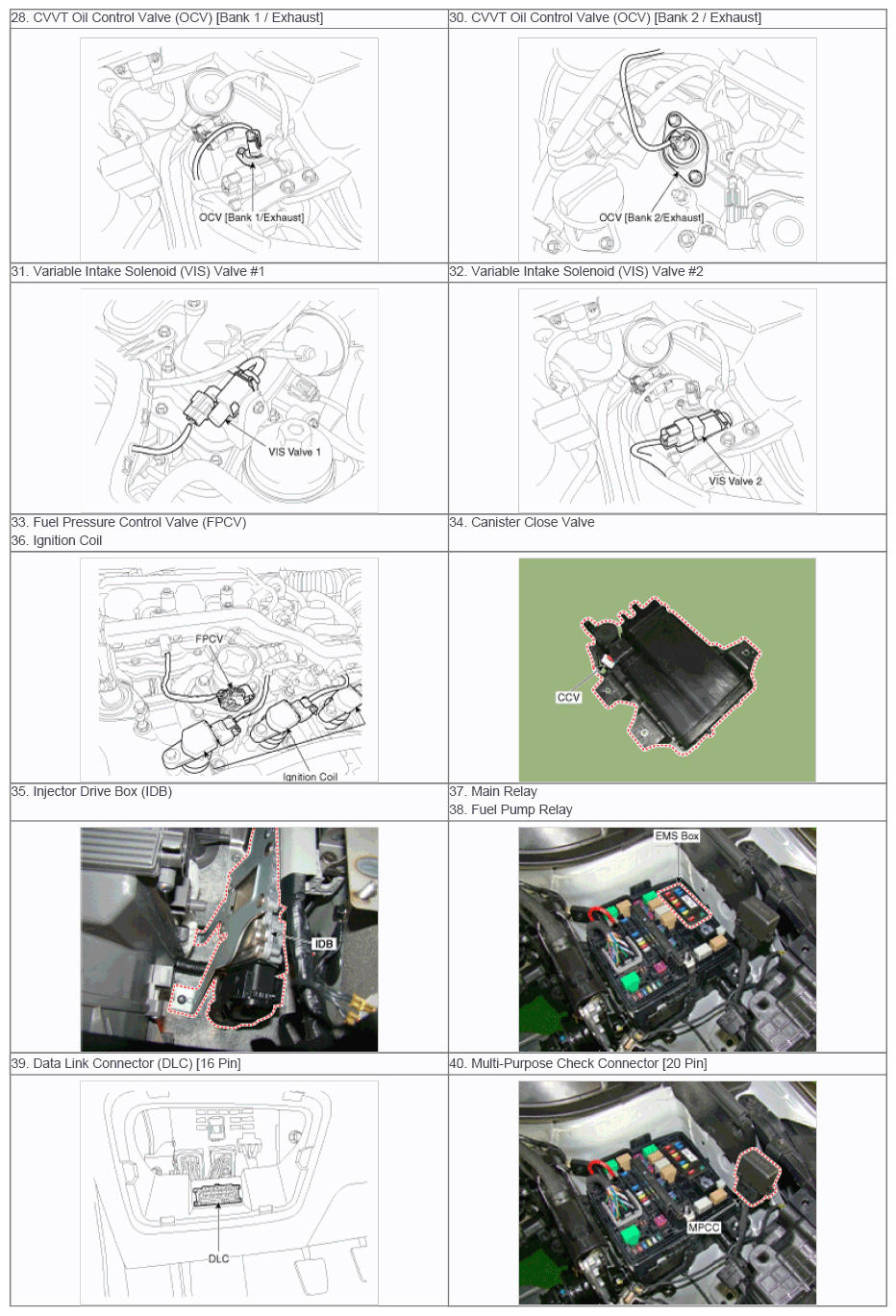

Fig 5: Engine Control/Fuel System Components Location (5 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA

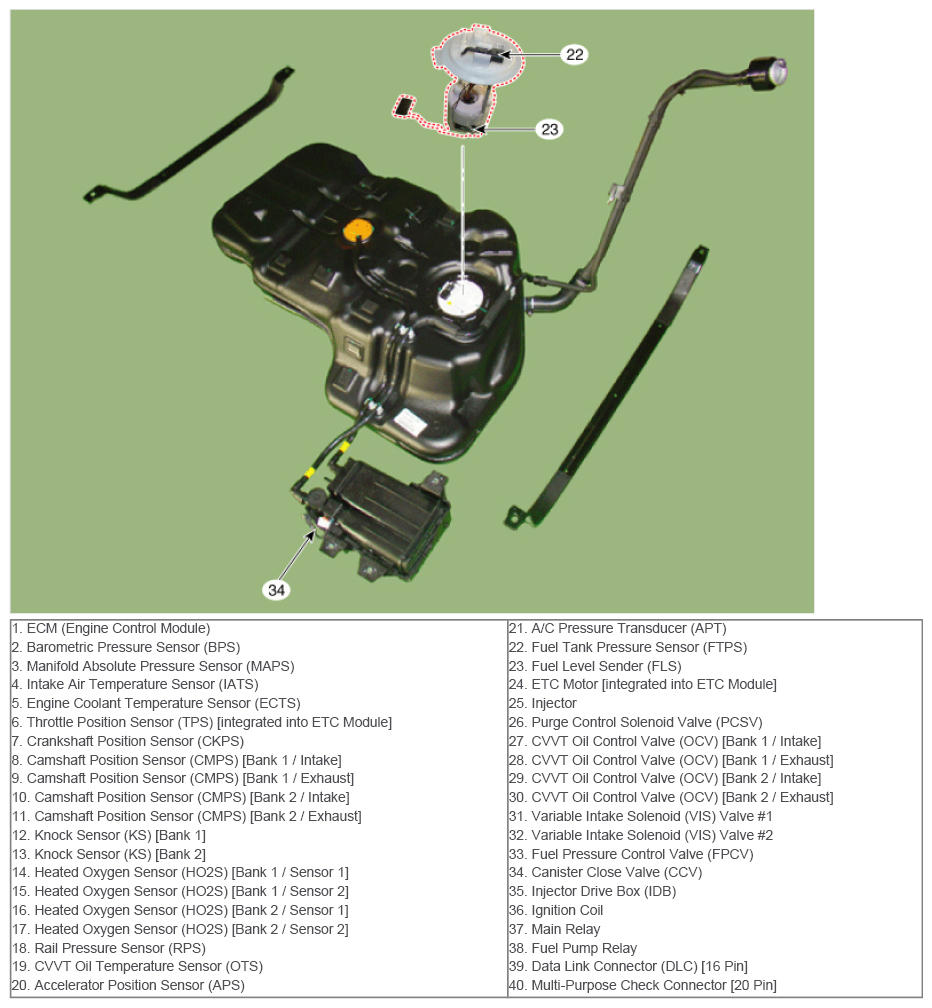

Fig 6: Engine Control/Fuel System Components Location (6 Of 6)

Courtesy of HYUNDAI MOTOR AMERICA
