Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air intake hose.

    (Refer to "AIR CLEANER ")

  3. Disconnect the ETC module connector (A).
  4. Disconnect the coolant hoses (B).
  5. Remove the installation bolts, and then remove the ETC module (C) from the engine.

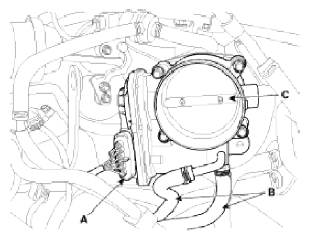

    Fig 1: Identifying ETC Module Connector, Coolant Hoses And ETC Module
    G09270745Courtesy of HYUNDAI MOTOR AMERICA
